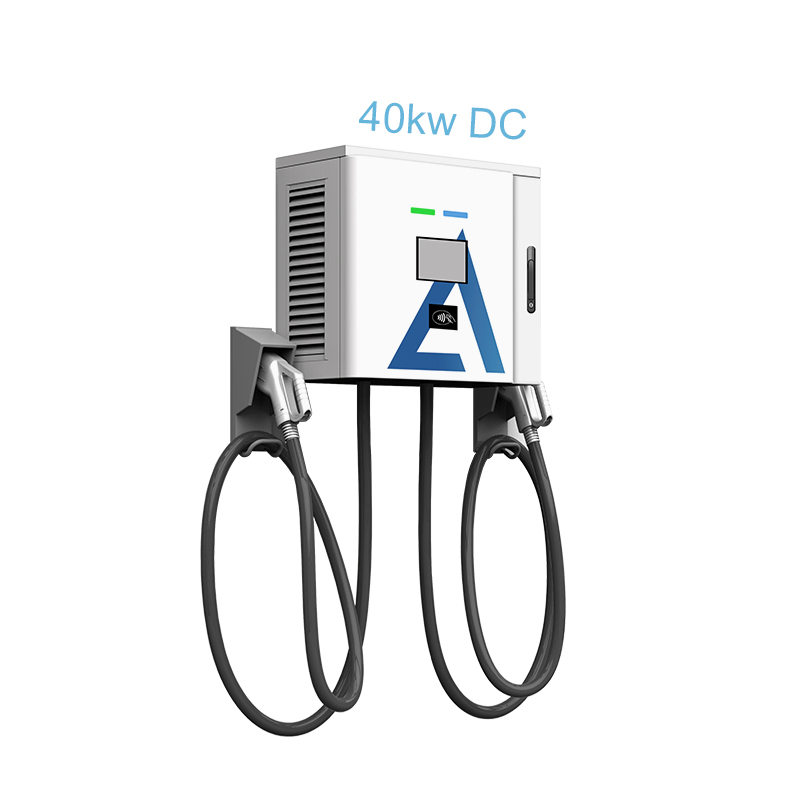

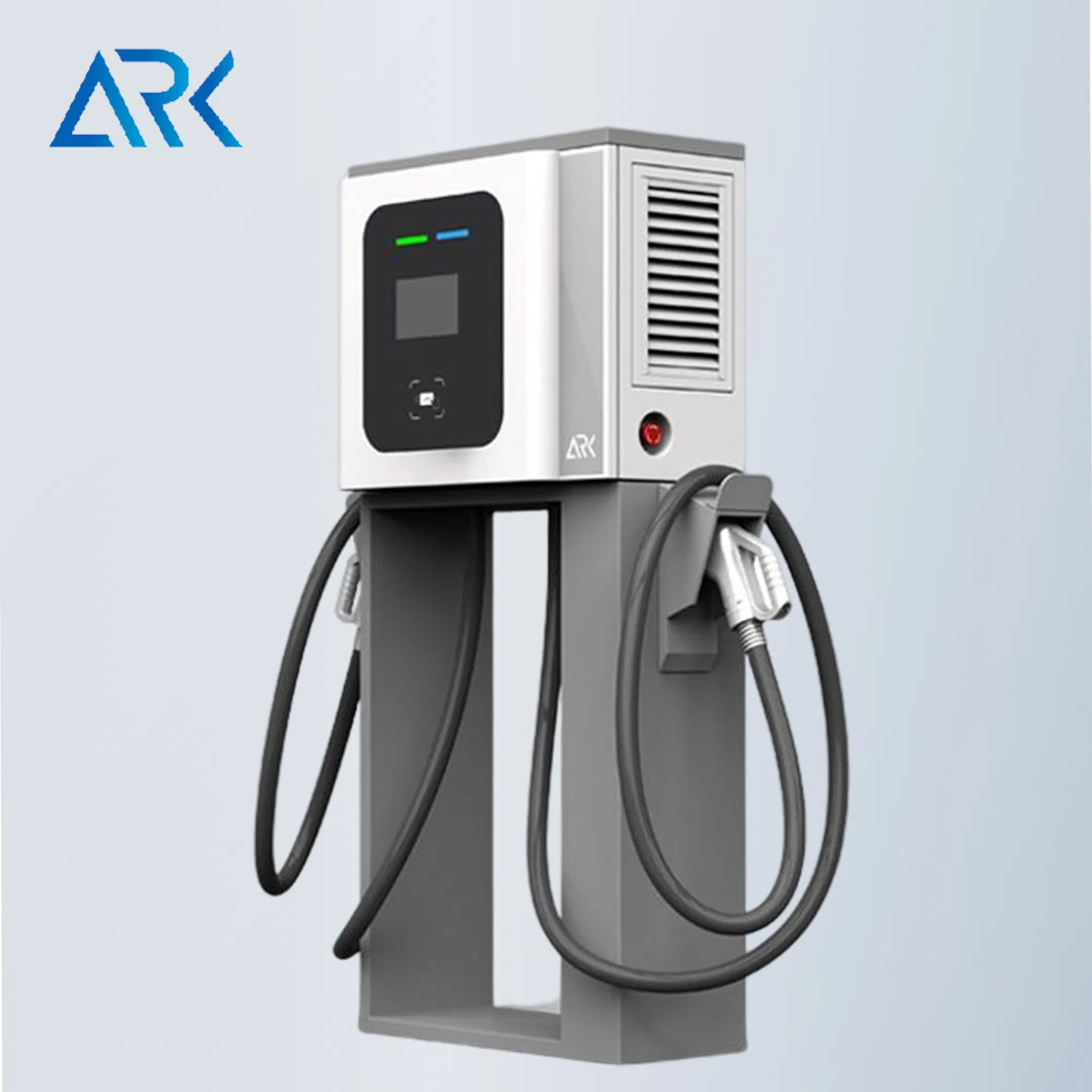

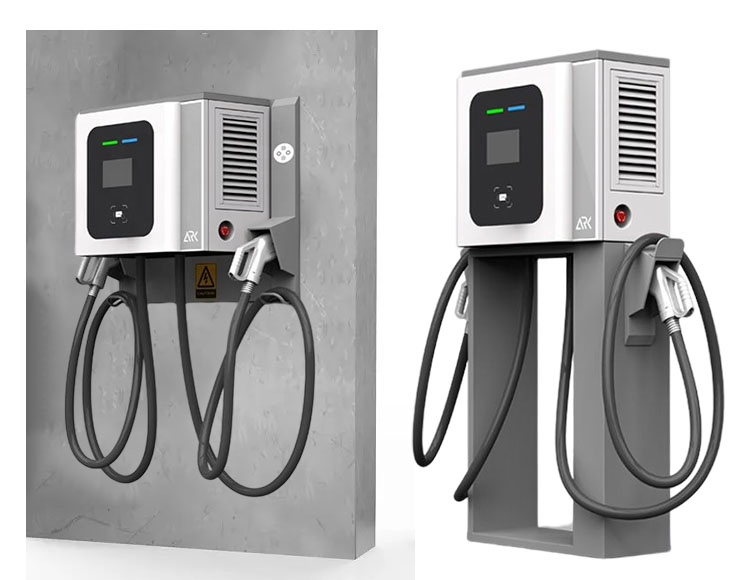

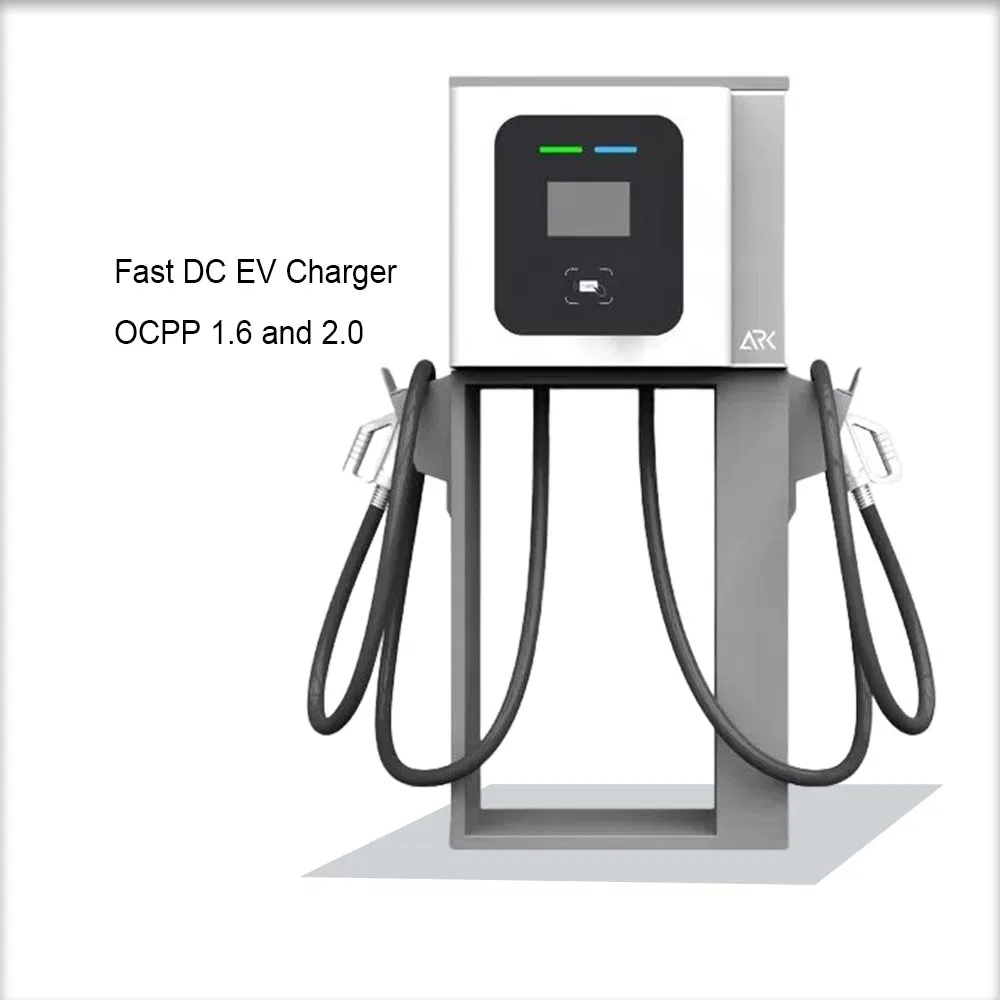

Wall-Mounted 40kw DC Charging Station EV EU AC Charger
Wall-Mounted 40kw DC Charging Station EV EU AC Charger
Wall-Mounted 40kw DC Charging Station EV EU AC Charger
Wall-Mounted 40kw DC Charging Station EV EU AC Charger
Wall-Mounted 40kw DC Charging Station EV EU AC Charger
1 / 5
Wall-Mounted 40kw DC Charging Station EV EU AC Charger
Wall-Mounted 40kw DC Charging Station EV EU AC Charger
Wall-Mounted 40kw DC Charging Station EV EU AC Charger
Wall-Mounted 40kw DC Charging Station EV EU AC Charger
Wall-Mounted 40kw DC Charging Station EV EU AC Charger

Wall-Mounted 40kw DC Charging Station EV EU AC Charger

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
EF040
OCPP
Ocpp1.6j Supported
Screen
7 Inch Touch Screen
Protection Grade
IP54, IK10
Charging Type
Mode 4
Standard
IEC 61851-1, IEC 61851-23, Chademo
Certification
CE, TUV
Warranty
12 Months
Production Capacity
1000 Units Per Month
Product Description

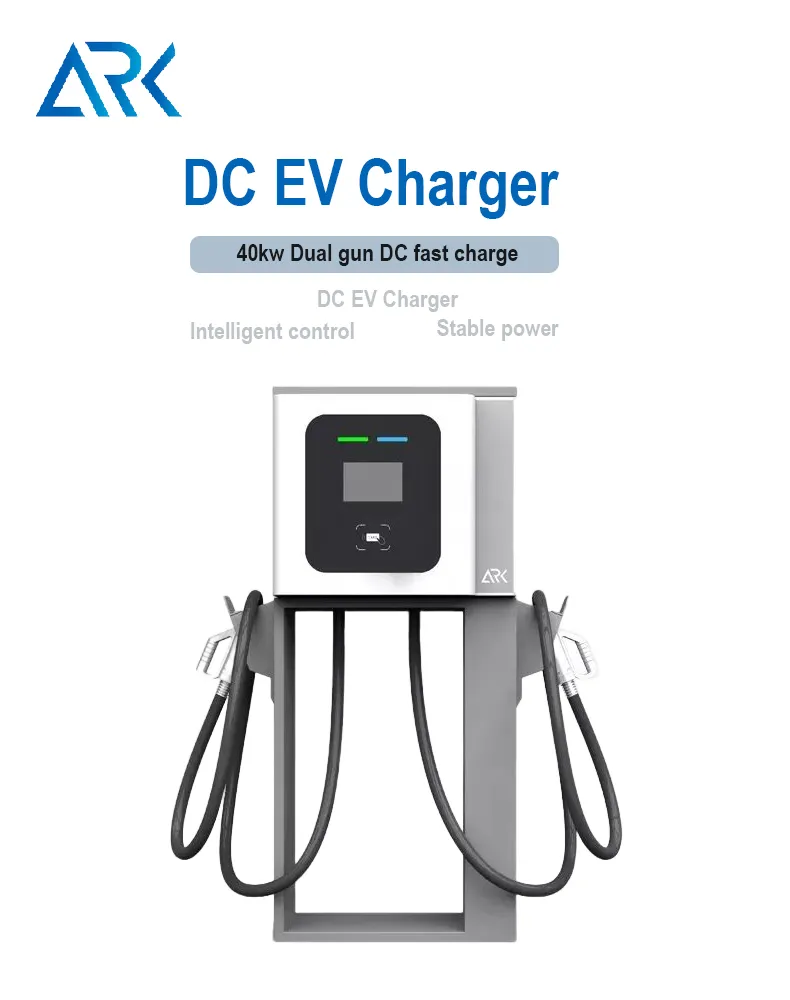

DC Charging Station 1

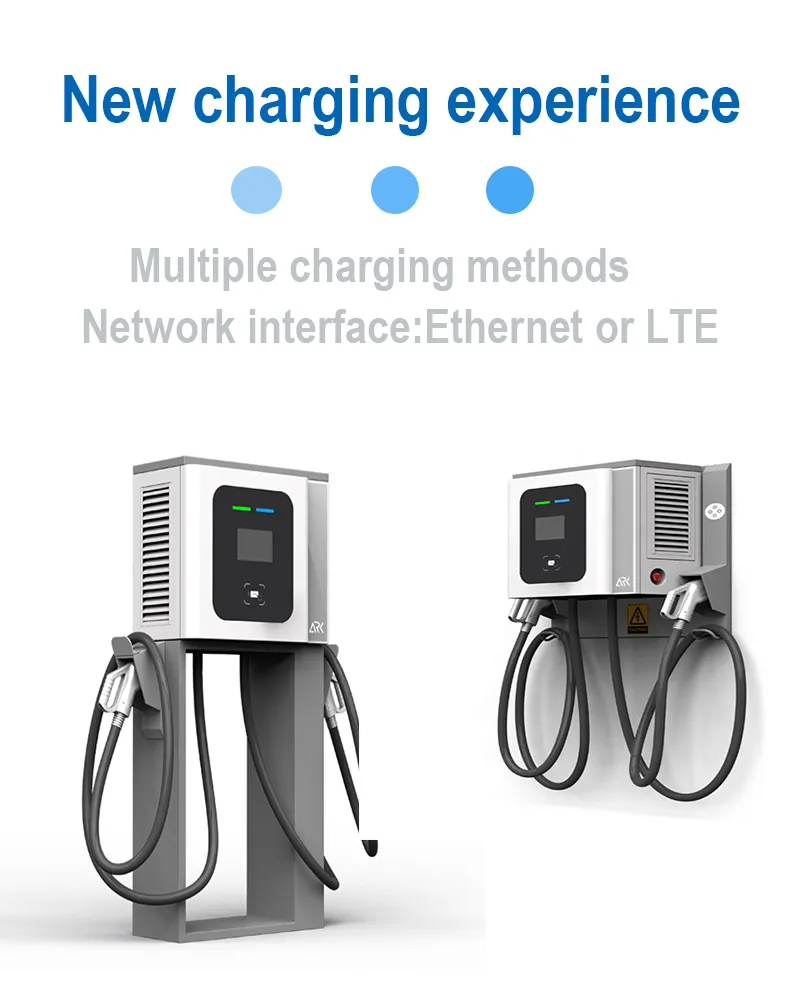

DC Charging Station 2

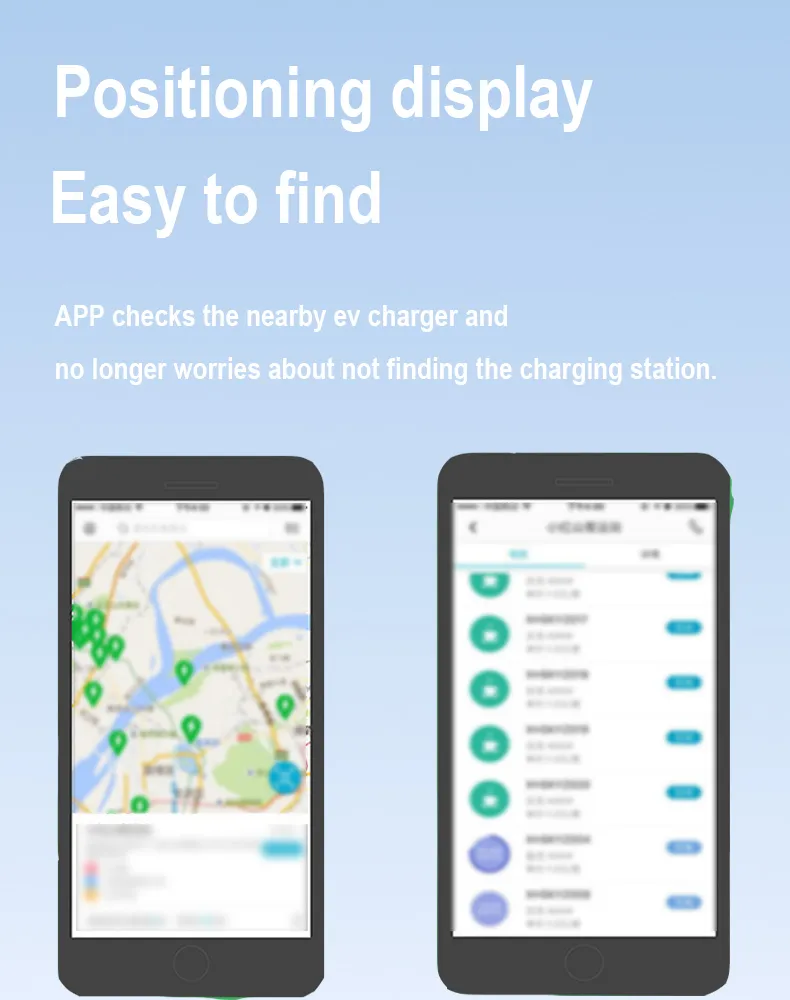

DC Charging Station 3

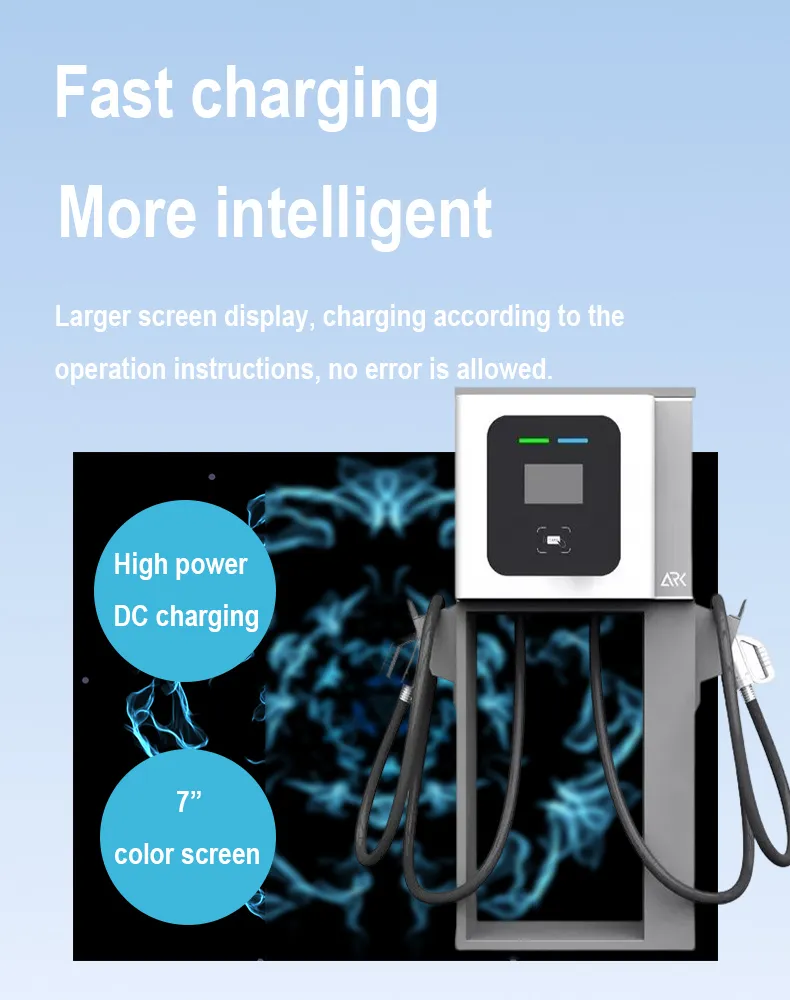

DC Charging Station 4

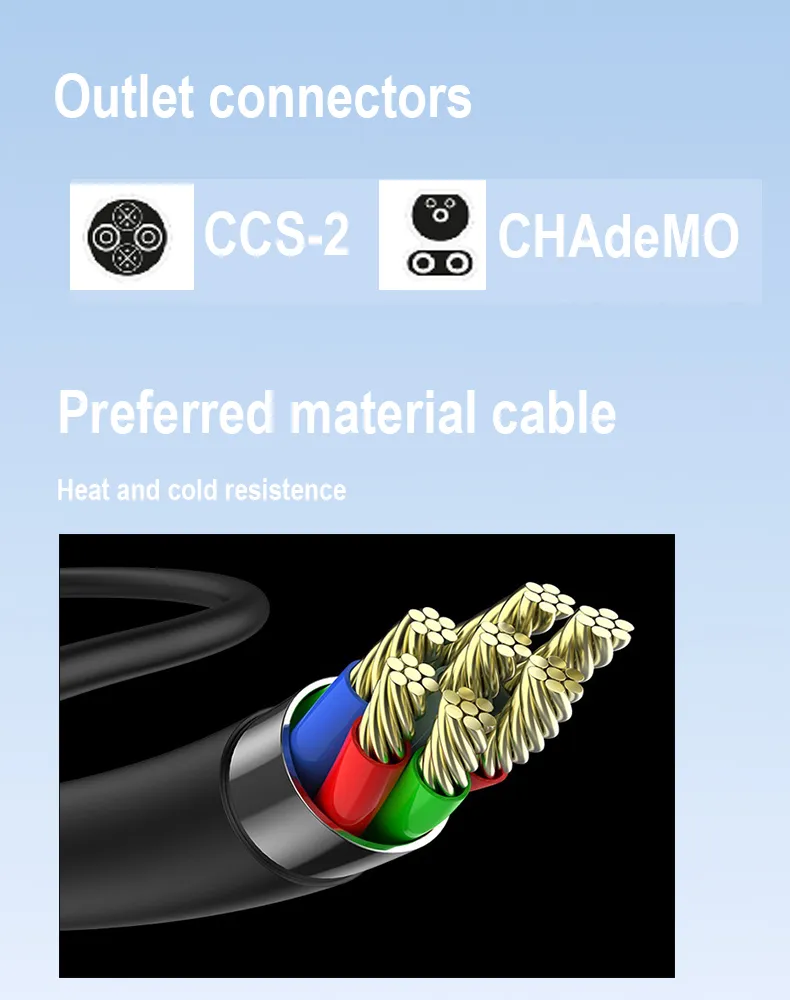

DC Charging Station 5
Product Parameters
Category Feature Details
StructureApplicationCommercial/Public charging station
Housing MaterialMetal case
Dimension600 x 700 x 363mm (1500 x 700 x 363mm with pedestal)
Weight125kgs (145kgs with pedestal)
ElectricalInput Voltage400Vac +/-10%, 50Hz, 3-phase + N + PE
Output Voltage200 - 1000V (Constant above 300V)
Output Current125A max
Efficiency≥ 95%
FunctionUser InterfaceEmergency button, LED, RFID, 7" Touch screen
CommunicationPLC, CAN, Wifi, 3G, 4G, OCPP 1.6
EnvironmentWorking Temp-25°C to +50°C
ProtectionIP54
Safety StandardsIEC 61851-1, IEC 61851-23, IEC 15118-3
Security DesignOver/under voltage, overload, leakage, surge protection
Professional Manufacturing

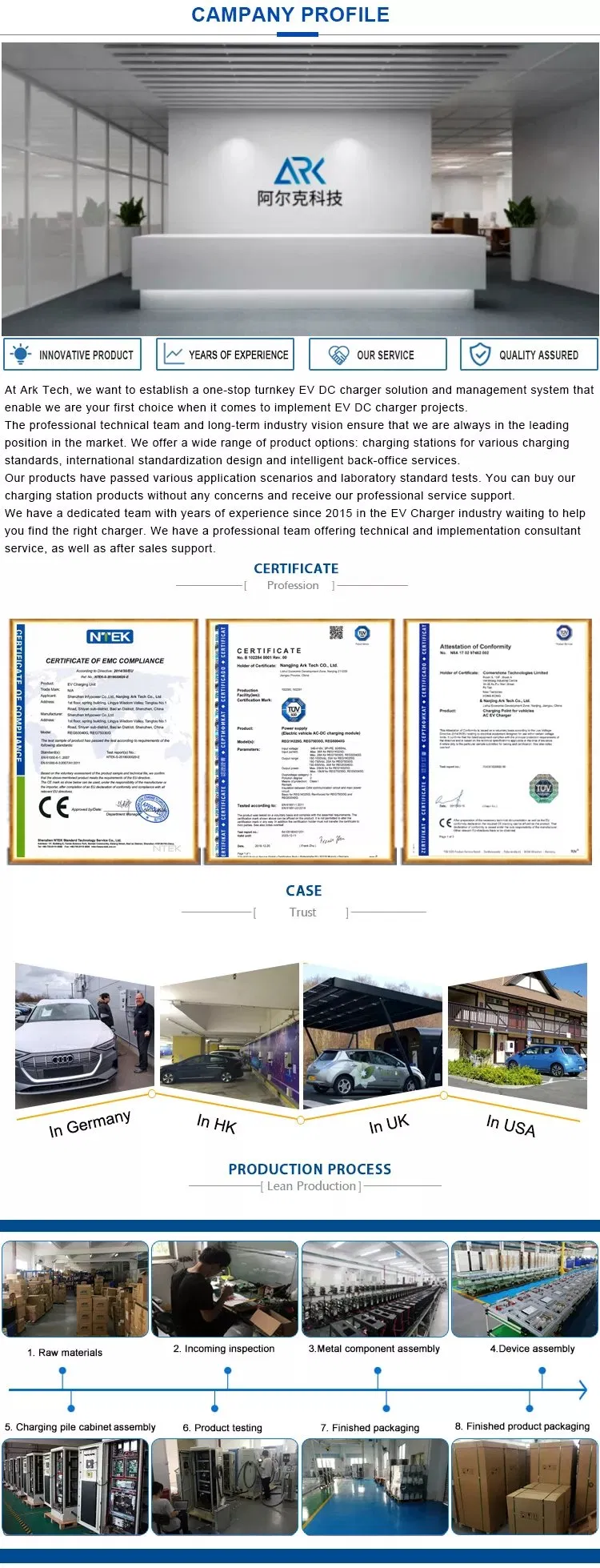

Manufacturing Process
Packaging & Shipping

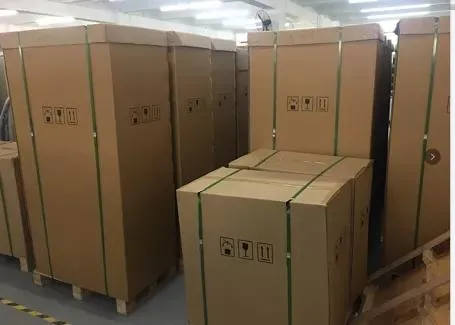

Shipping Package 1

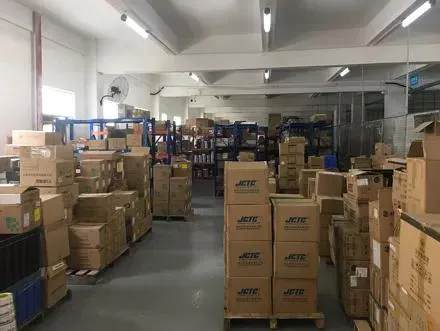

Shipping Package 2

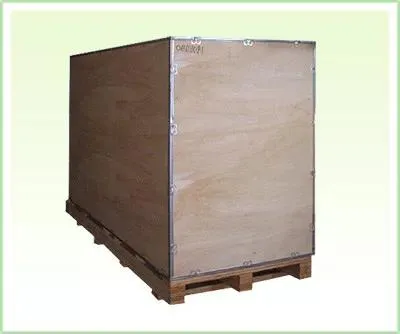

Shipping Package 3
Frequently Asked Questions
1. Why choose these EV Chargers for your infrastructure?
Our products are developed by a professional technical team with a long-term industry vision, ensuring leading-edge technology. We offer standardized designs, smart back-end services, and products that have passed rigorous laboratory and field tests.
2. Is there experience in implementing international charging projects?
Yes, we have extensive experience in global projects, including integrating chargers with PV systems in Europe, installing DC fast chargers along major highways in North America, and supporting automaker fleets with high-speed charging services.
3. What are the key advantages of your DC fast chargers?
Our chargers feature telecom-level design, support multiple standards (CCS-1/2, CHAdeMO, GB/T), and offer a wide input/output voltage range. They are built for extreme temperatures with high protection grades and a modular design for easy maintenance.
4. What are the differences between global DC fast charging standards?
There are five main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. Our chargers are designed to be compatible with these global standards to serve a wide variety of electric vehicles.
5. Does higher output power always mean faster charging?
Not necessarily, as it depends on the vehicle's battery limit. However, high-power chargers are significant because they can support dual connectors to charge two vehicles simultaneously and provide "future-proofing" for next-generation batteries.
6. What kind of after-sales technical support is available?
We provide comprehensive technical training, including written materials and videos, to help master parts replacement and maintenance. Professional technicians are also available to provide support for urgent situations.
