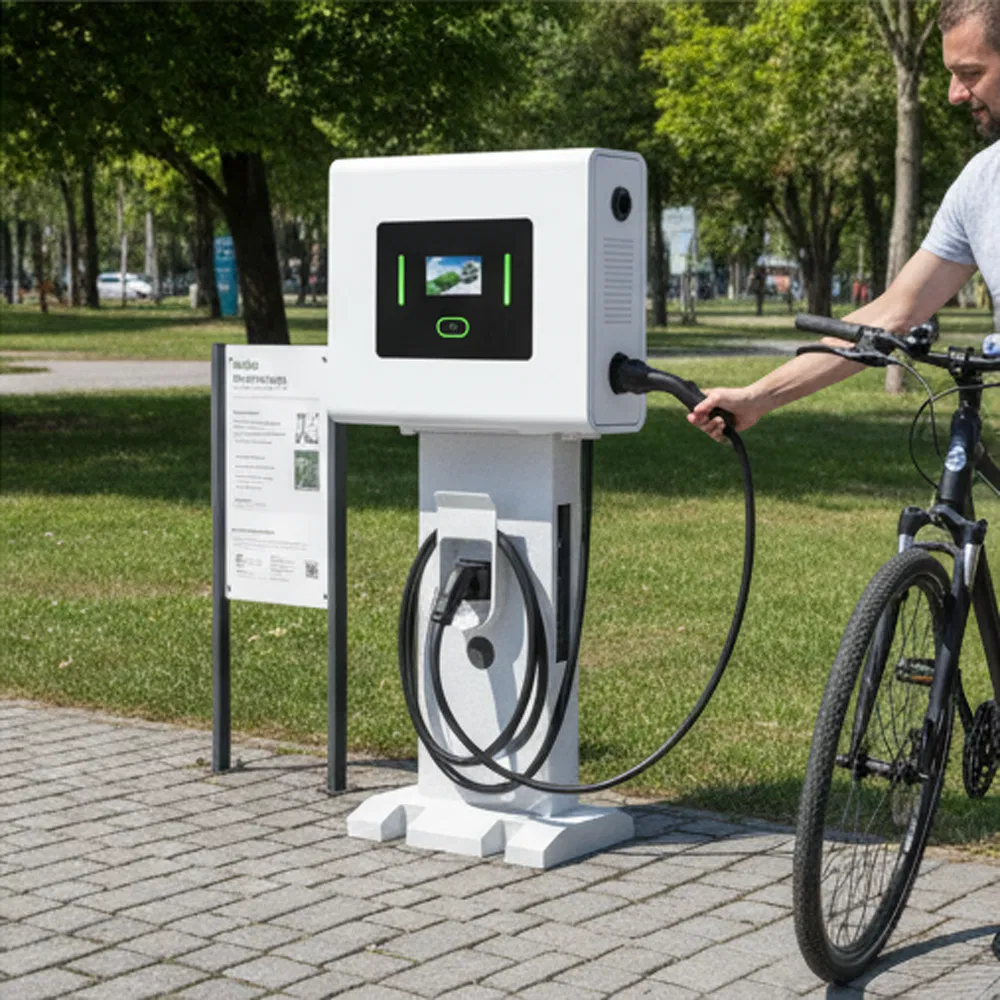

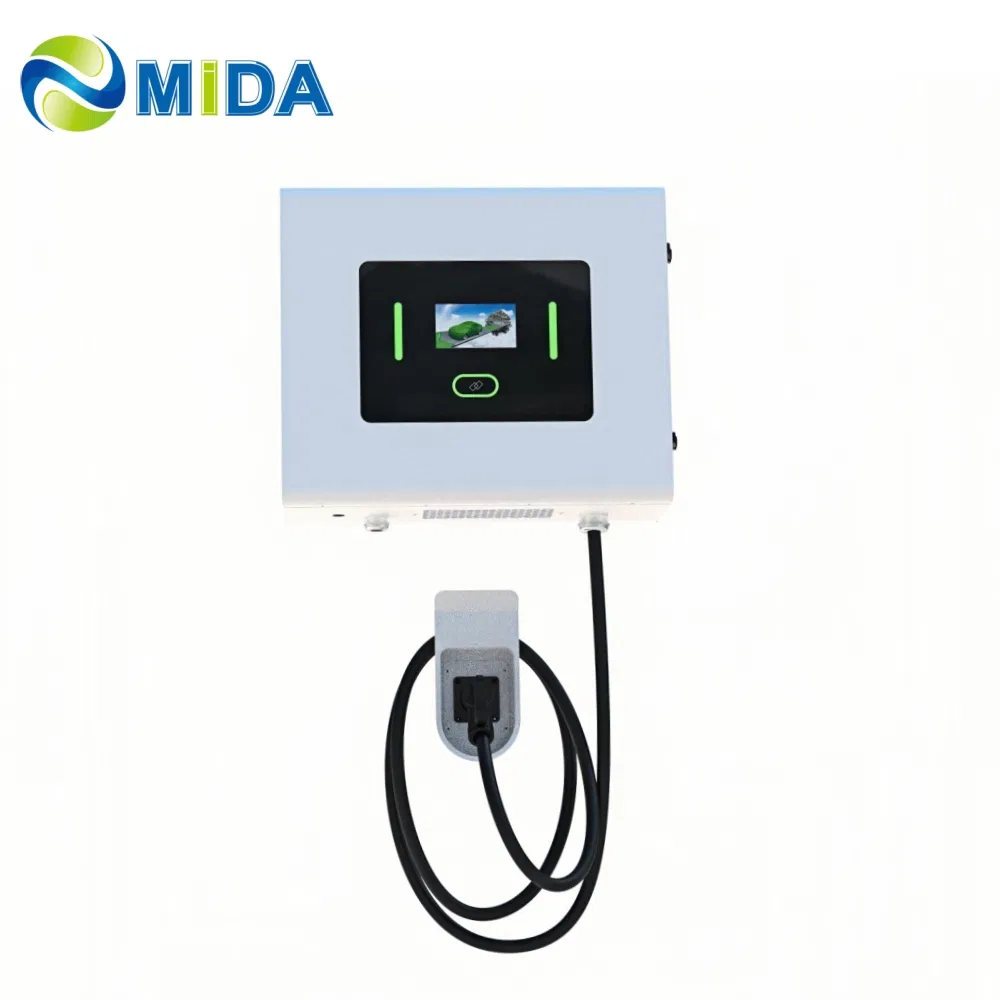

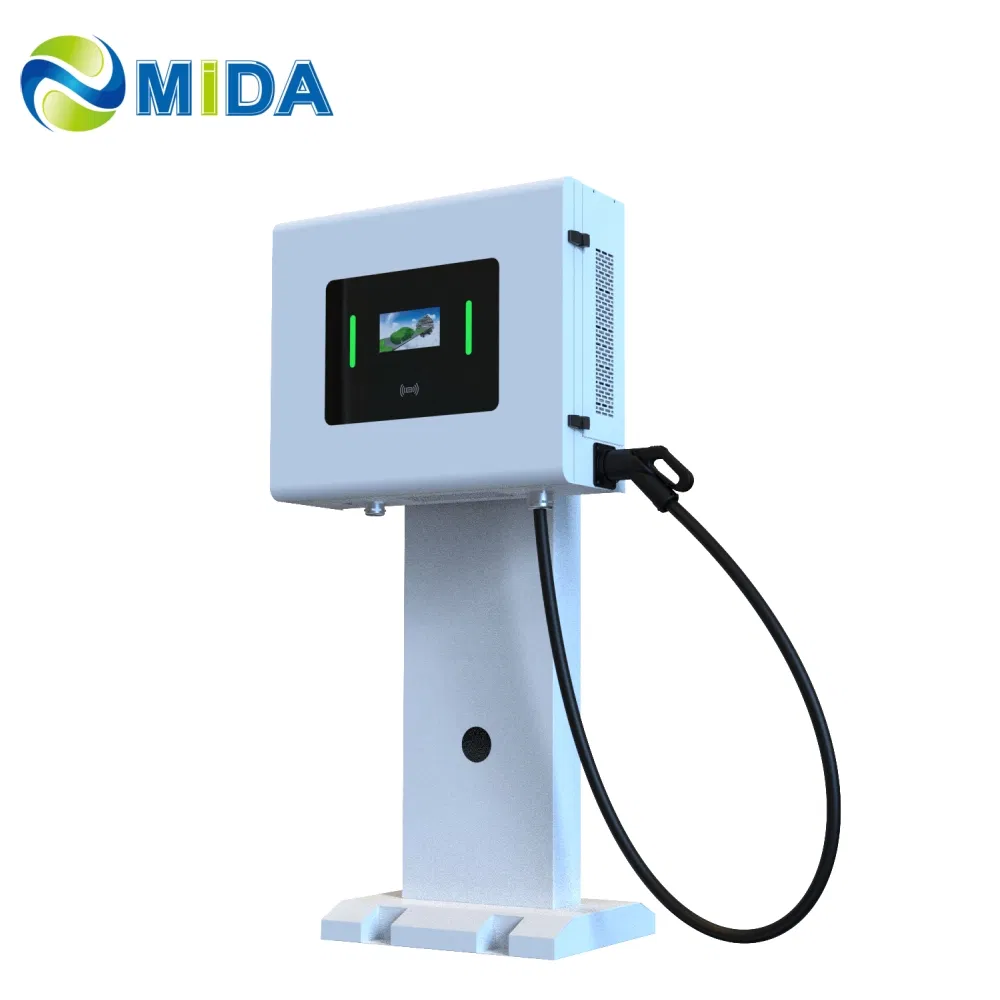

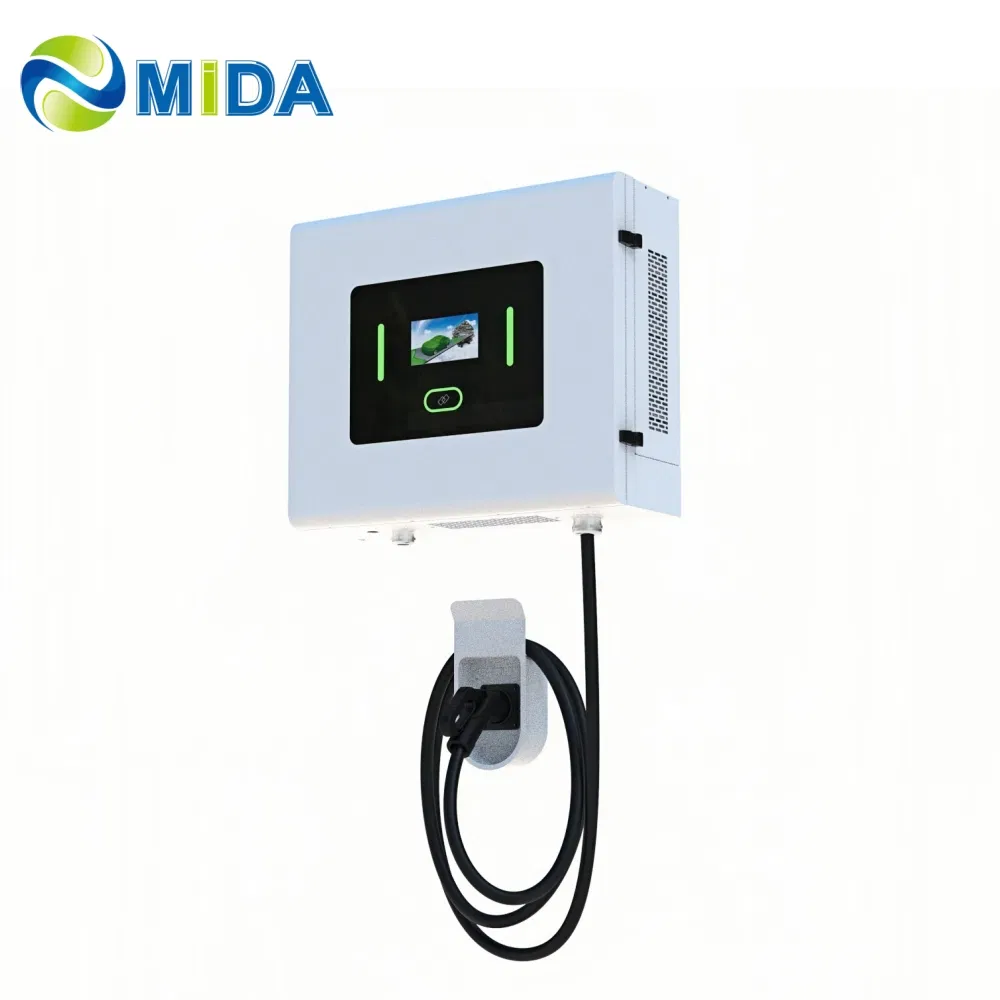

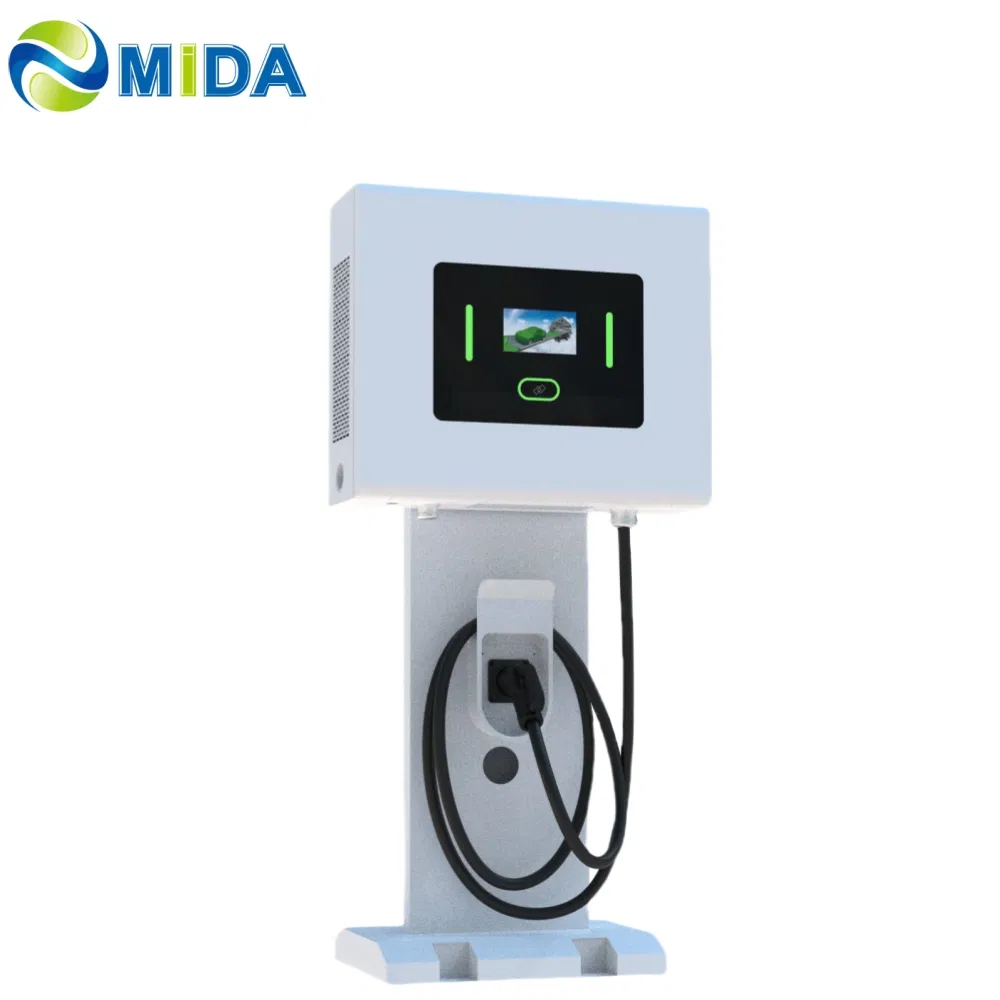

The 40KW Wall-mounted Fast Charger is a high-speed charging station designed to support all compatible electric vehicles. It features advanced dual connectors including CCS Combo and CHAdeMO, making it ideal for a wide range of EVs such as the Leaf and i3.
| Category | Item | Parameters |
|---|---|---|
| AC Input | Input Type | Three Phases Five Wires: 3P+N+PE |
| Voltage Range | 380 Vac±15% | |
| Max Current | 60A | |
| Efficiency | 96% | |
| DC Output | Voltage Range | 150V-750V |
| Max Power | 40kW | |
| Max Current | 120A@350V, 53A@750V | |
| Interface | Display | 4.3' TFT-LCD Touch Panel |
| Push Buttons | Emergency Stop | |
| Communication | WiFi, RJ45, 3/4G, Modebus TCP, PLC | |
| Environment | Temperature | -25ºC to +50ºC |
| IP Level | IP54 / IP55 |
Specializing in electric vehicle components, including all types of EV plugs, sockets, cables, and connectors. All products are manufactured under strict quality control and carry international certifications such as CE, PSE, TUV, and UL.
A: This charger is compatible with all EVs using CCS Combo, CHAdeMO, or GBT standards, covering most modern electric vehicles like Tesla (with adapter), Nissan Leaf, BMW i3, and more.
A: Yes, the unit is rated IP54/IP55, providing significant protection against dust and water, making it suitable for both indoor and outdoor environments.
A: Yes, it integrates OCPP 1.6 protocol and supports WiFi, Ethernet, and 4G connectivity for remote management and cloud-based operations.
A: It requires a three-phase five-wire (3P+N+PE) input with a voltage of 380Vac±15%.
A: With 40kW output power, it can typically charge a standard EV battery from 20% to 80% in about 45 to 90 minutes, depending on the battery size.
A: Our chargers are certified to meet CE, ROHS, TUV, CSA, UL, and IEC standards, ensuring the highest level of safety and reliability.
