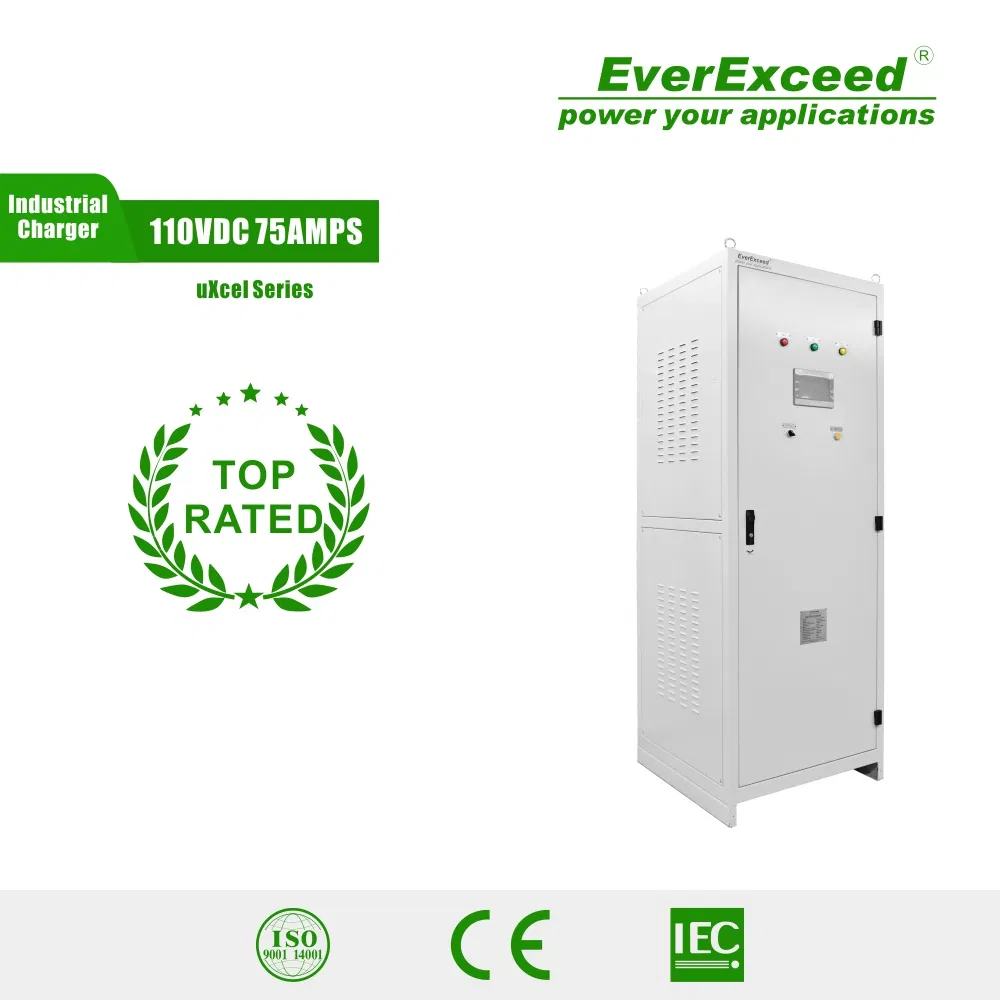

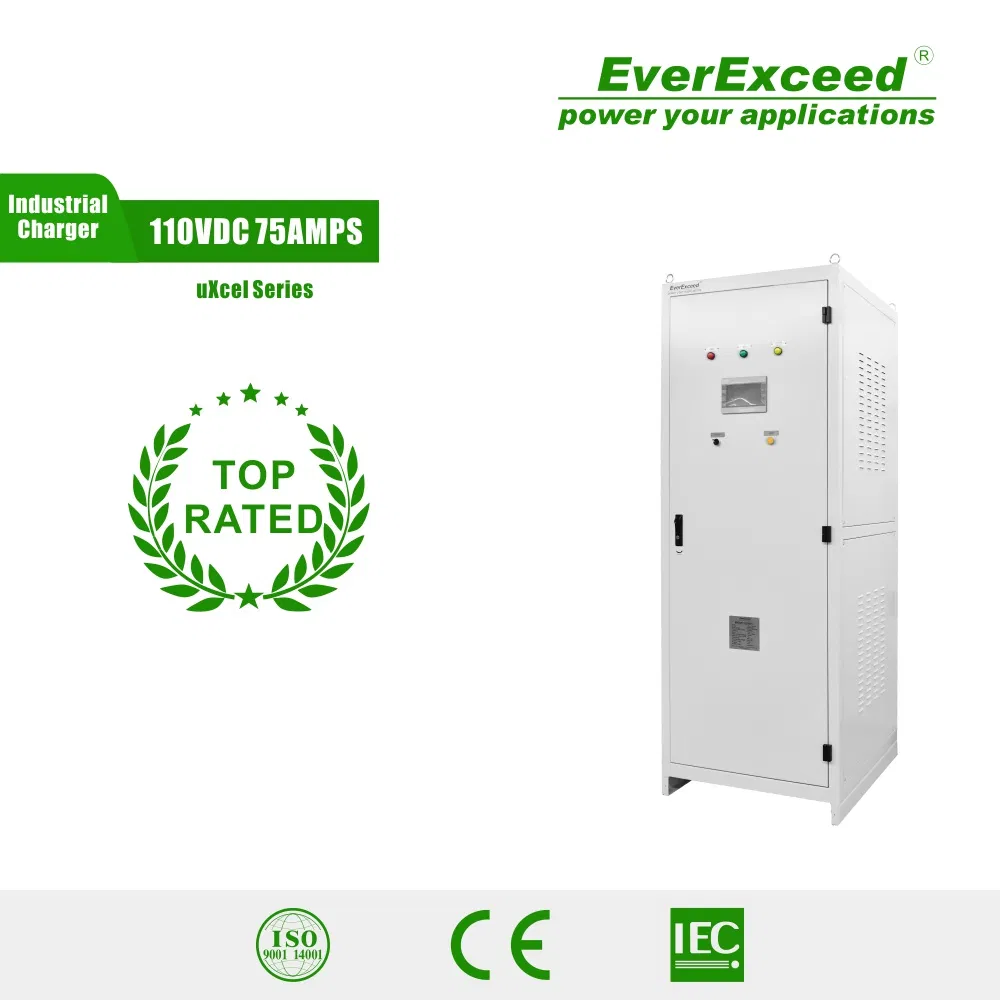

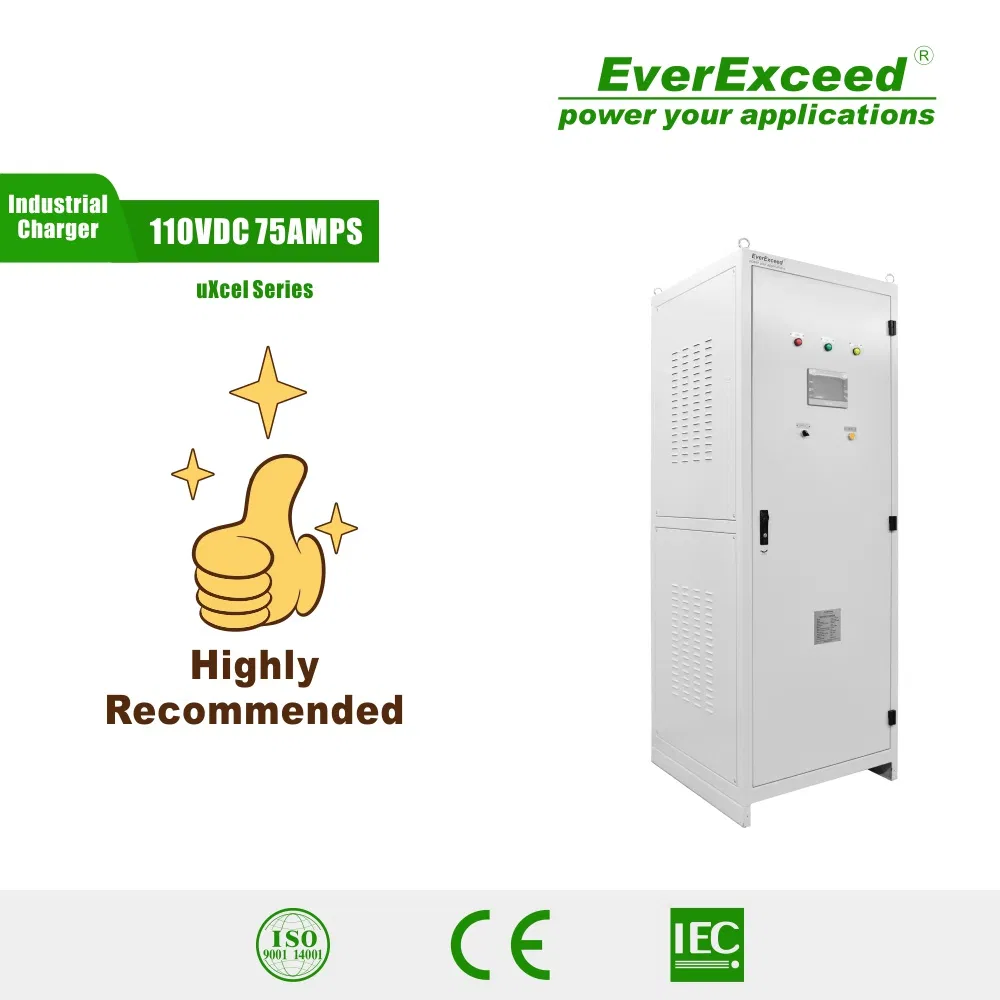

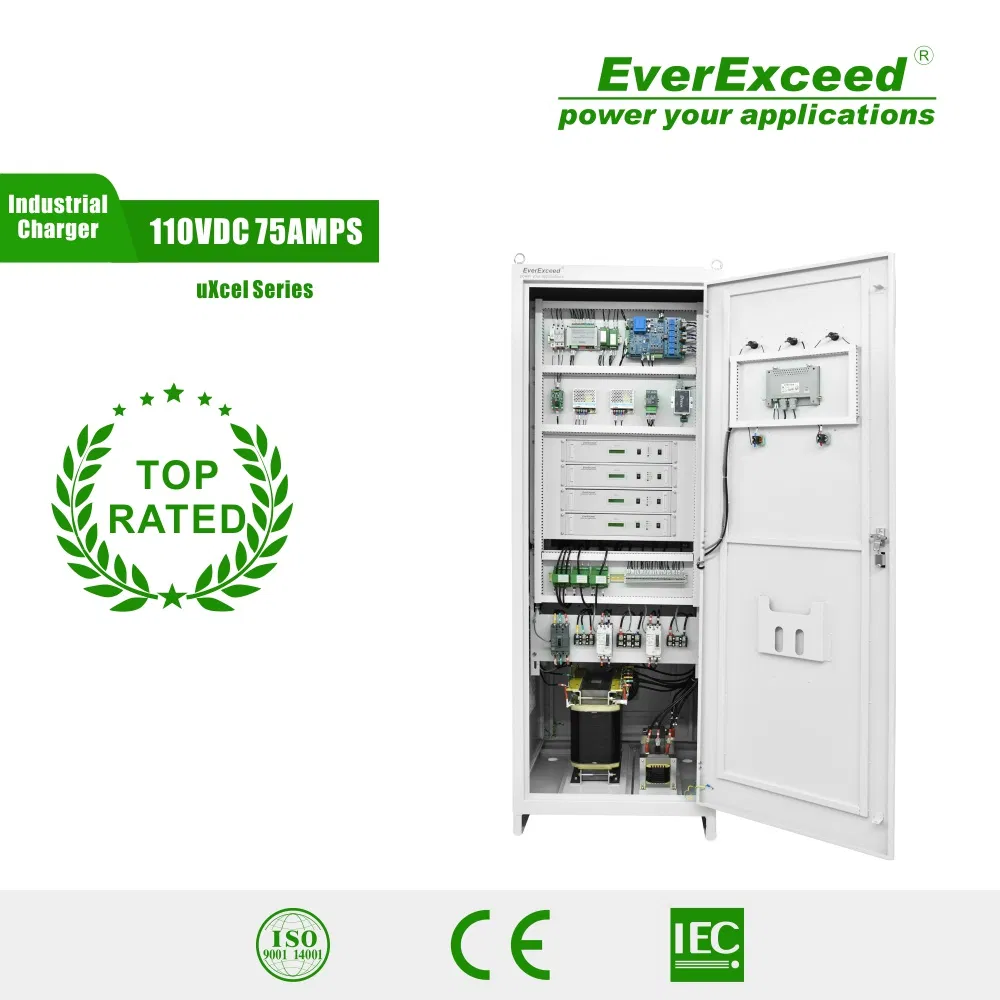

The uXcel range industrial battery charger is the flagship solution for industrial power needs. It integrates proven design topology with the latest advanced digital control technology to control the thyristor bridge rectifier, providing the most reliable and trouble-free performance in any electrical and industrial environment.
User-friendly operation with 8 language choices, ensuring easy maintenance and smart remote monitoring.
6 or 12 phase controlled Thyristor technology with embedded micro-computer controllers.
Full compatibility with sealed or vented lead-acid and nickel-cadmium batteries.
Power solutions tailored to specific industrial requirements.
Withstands extreme temperatures, humidity, dust (Up to IP55).
Includes switchgear, DC distribution, and monitoring suites.
| Output Specifications | |
|---|---|
| Nominal DC Voltage | 24 / 48 / 110 / 125 / 220 / 240 / 400V |
| Output Voltage Range | 0-1.5 × Nominal Voltage (Adjustable) |
| Nominal DC Current | 10-1500A |
| Voltage Stability | ±1% in float mode |
| Voltage Ripple | 1% RMS (with battery connected) |
| Protection | Short Circuit, NH Fuse, Overvoltage |
| General Data | |
|---|---|
| Operating Temperature | 0 to 50 °C |
| Relative Humidity | < 95 % non-condensing |
| Cooling | Fan cooling or Natural cooling |
| Efficiency | Up to 90% |
| External Protection | IP20 (Up to IP55 optional) |
A1: Our industrial chargers are fully compatible with Lead Acid (vented or recombination), Nickel Cadmium (NiCd), and Lithium batteries.
A2: The system is designed for a long operational life of over 20 years under appropriate maintenance conditions.
A3: Yes. While the standard is IP20, we offer ruggedized solutions with protection up to IP55 to withstand dust, humidity, and extreme temperatures.
A4: Yes, it features smart communication via isolated RS232, RS485, and Ethernet (Modbus TCP/IP) for full data logging and remote monitoring.
A5: The standard warranty is 2 years, but this can be extended to 5+ years upon specific request.
A6: Yes, the output voltage range is adjustable from 0-1.5× nominal voltage, and the current limitation is also fully adjustable.
