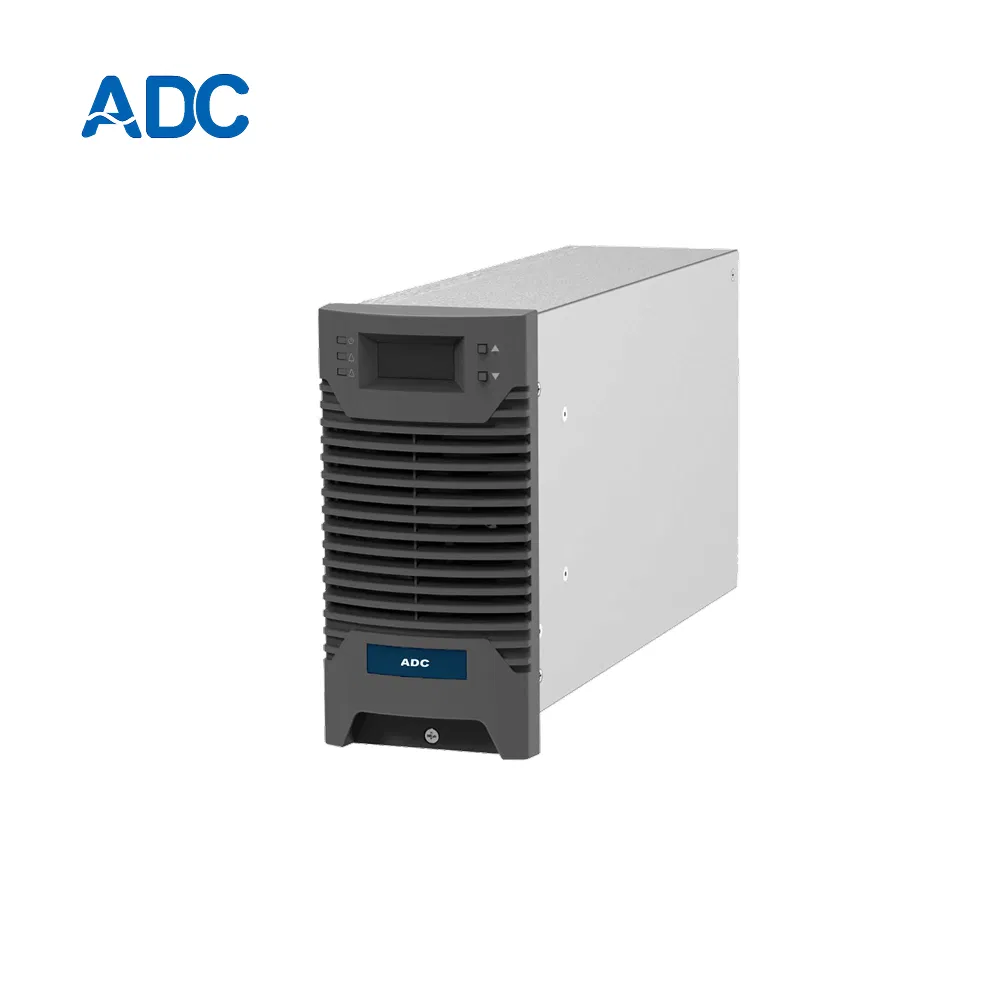

Greenvora Charger
1 / 5
| Model NO. | ADC220 |
|---|---|
| Output Frequency | 50Hz, 60Hz |
| Output Voltage | 200-1000V |
| After-sales Service | Technical Support |
| Output Current | 3A 5A 7A 10A 20A 30A 40A |

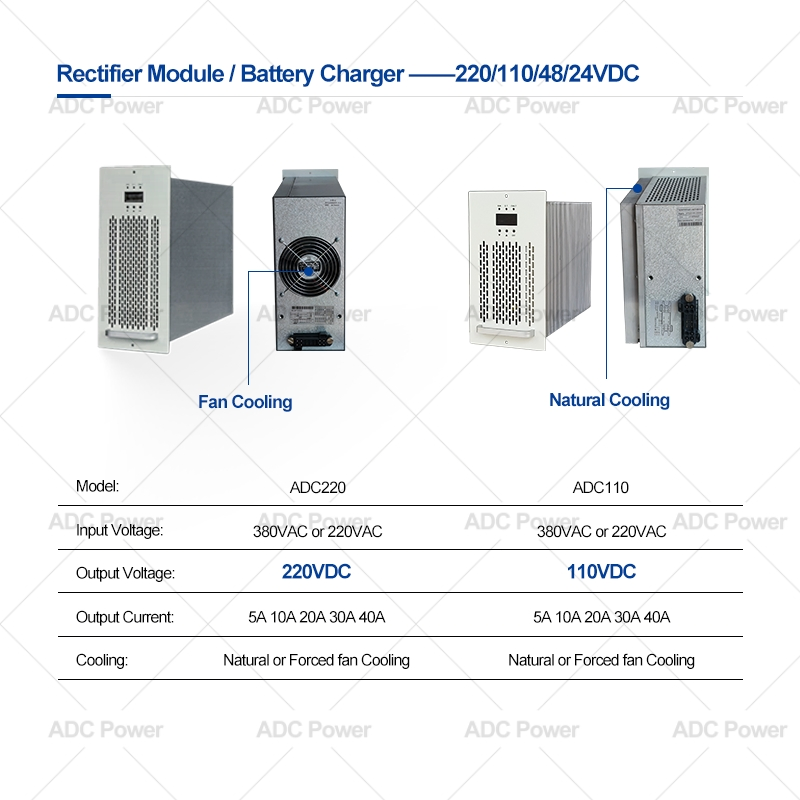

| Cooling | Forced Fan or Natural |
| Communication | RS485 |

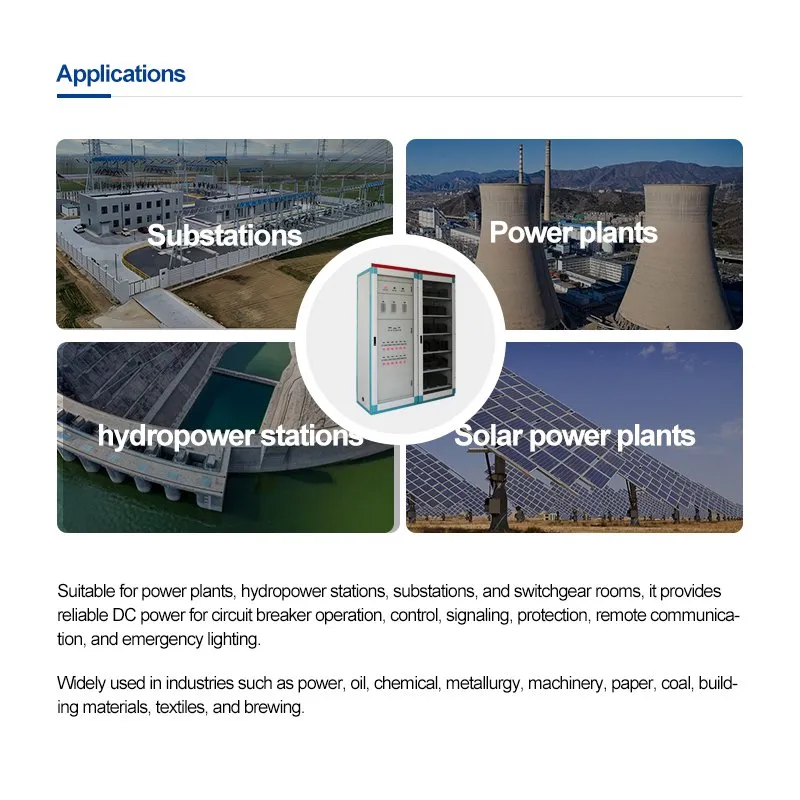

| Application | Substation |
| Specification | 88*377*237mm |
| Origin | China |
| HS Code | 8504401990 |
| Package Size | 575.00cm * 445.00cm * 205.00cm |
|---|---|
| Package Gross Weight | 10.000kg |
| Transport Package | Carton |

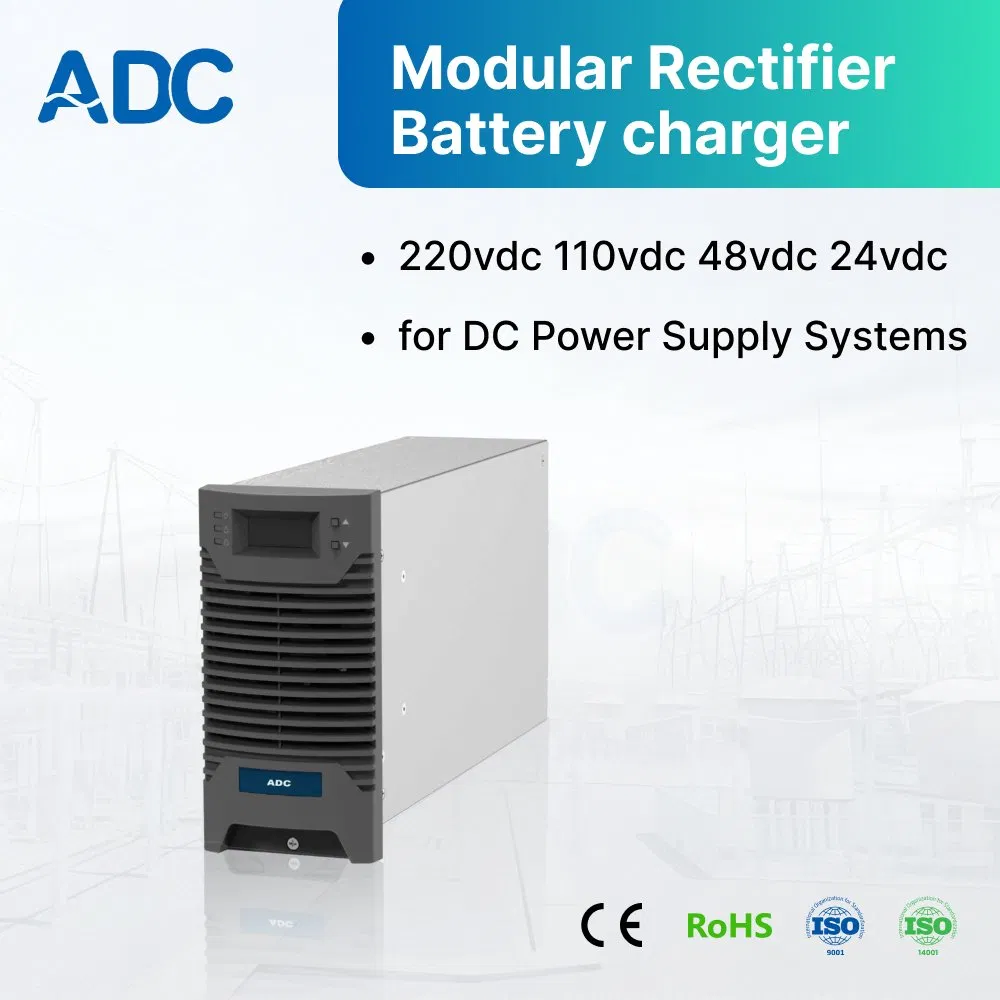

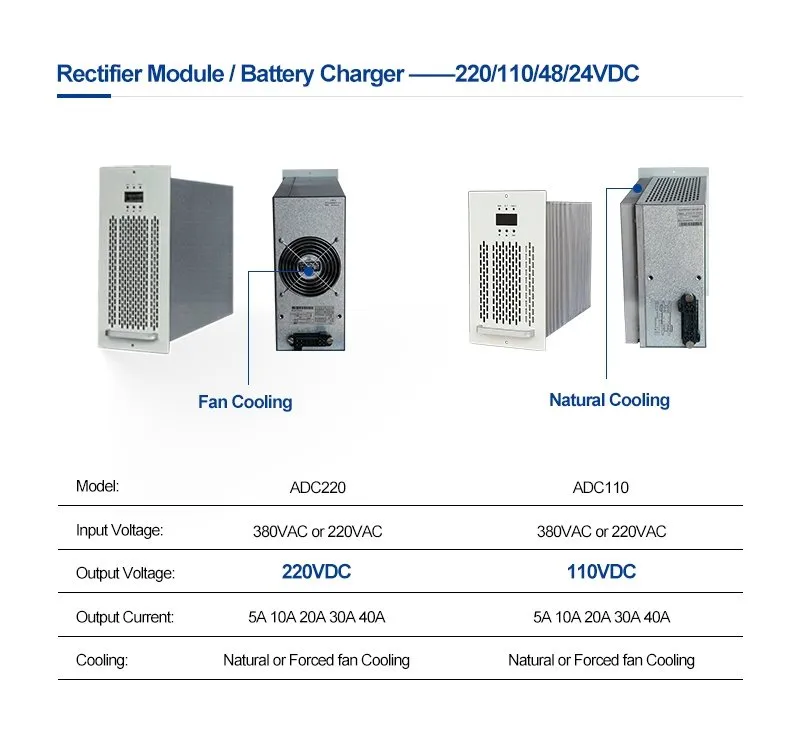

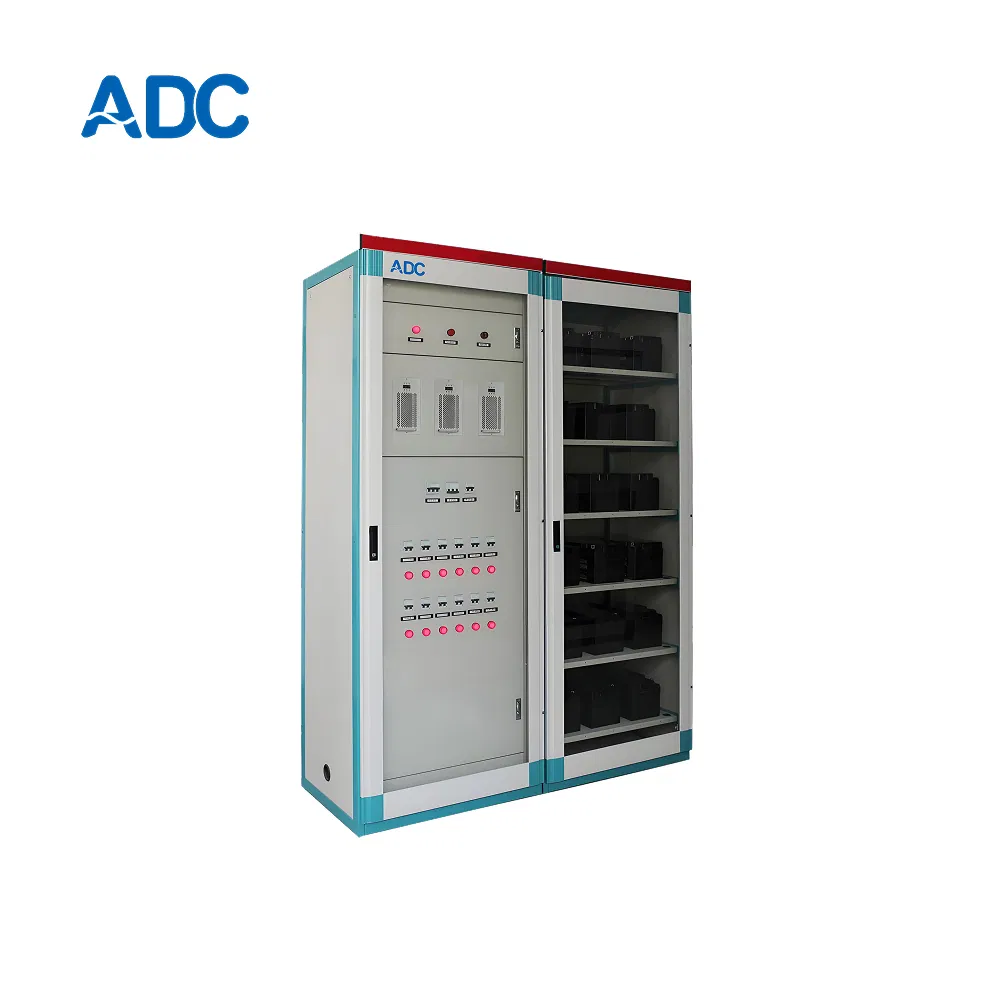

Our Intelligent DC Power Supply System is designed to deliver stable, efficient, and reliable DC power for critical industrial and power applications. The system integrates multiple advanced components including a rectifier battery charger (220/110/48/24VDC), DC system monitor, DC system controller, and a Battery Management System (BMS) for internal resistance monitoring.
With intelligent control and real-time data acquisition, it provides comprehensive supervision of battery performance, insulation status, and overall system operation. The modular structure ensures easy installation, flexible configuration, and convenient maintenance.
| AC Input | |
| Input Voltage | 323 to 456VAC 50/60Hz±5% |
| Power Factor | ≥0.94@220VAC 230V 20A; ≥0.94@220VAC 286V 20A |
| Input Protection | AC overvoltage protection; AC undervoltage protection; Power derating at AC phase lost |
| DC Output | |
| Output Voltage | 230VDC, 198 to 286V adjustable |
| Output Overshoot | <5% @230VDC |
| Output Power | 5720W (three-phase); 2860W (default-phase) |
| Max/Rated Current | 22A; 20A |
| Voltage Accuracy | ±0.5% from 0% to 100% load |
| Ripple and Noise | 0.5% rms; 1% p-p |
| Output Protection | OVP, OCP, OSP, OTP |
| Technical Specifications | |
| Efficiency | ≥93.5% |
| Display | Digital: Voltage, current, address, error code, module info |
| LED Indicators | Green (Normal), Yellow (Warning), Red (Failure) |
| Communication | RS485 |
| Operating Temp | -10 to +45℃ (Full load) |
| MTBF | 300,000 hours (25℃) |
| Dimensions | 88mm x 377mm x 237mm |

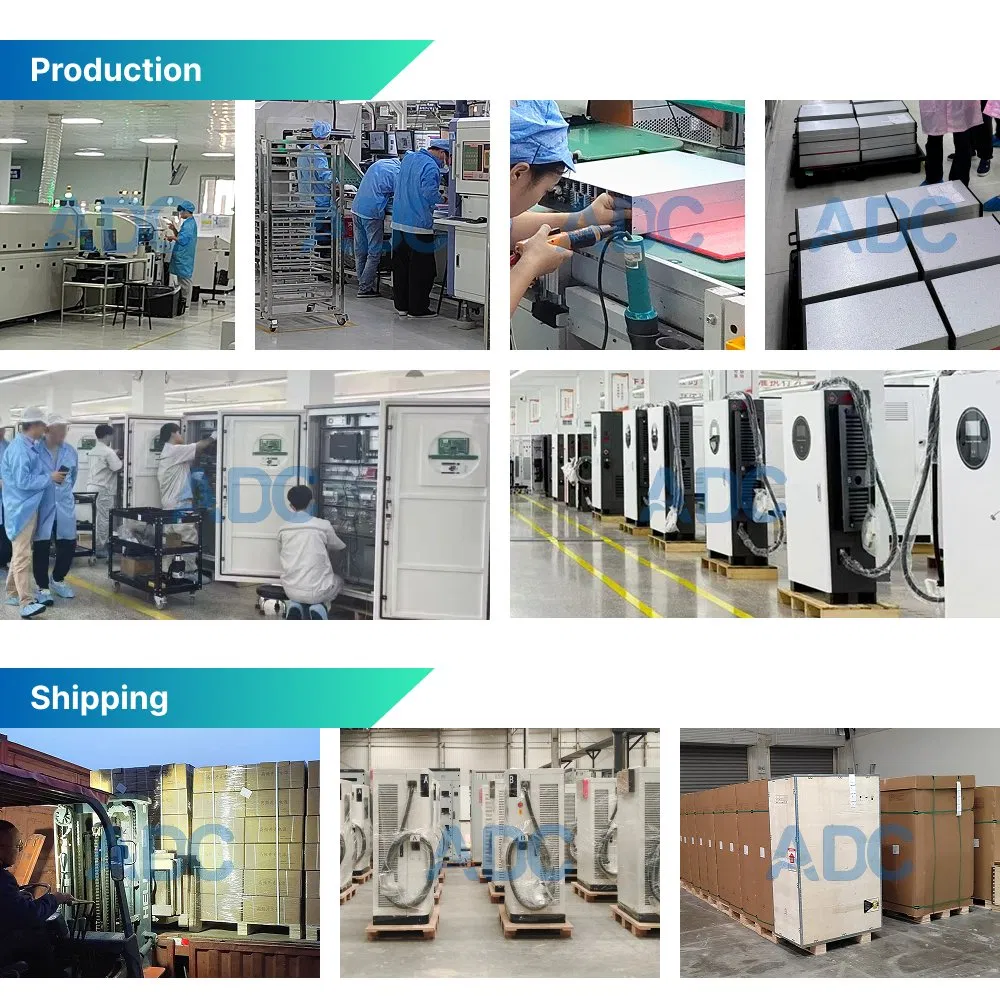

With over 20 years in power technology, our expertise specializes in AC to DC, DC to AC, battery monitoring, solar power, and new energy system developments. We utilize high-level technology equipment and maintain ISO9001 and ISO14001 certification to ensure quality production and timely delivery.
