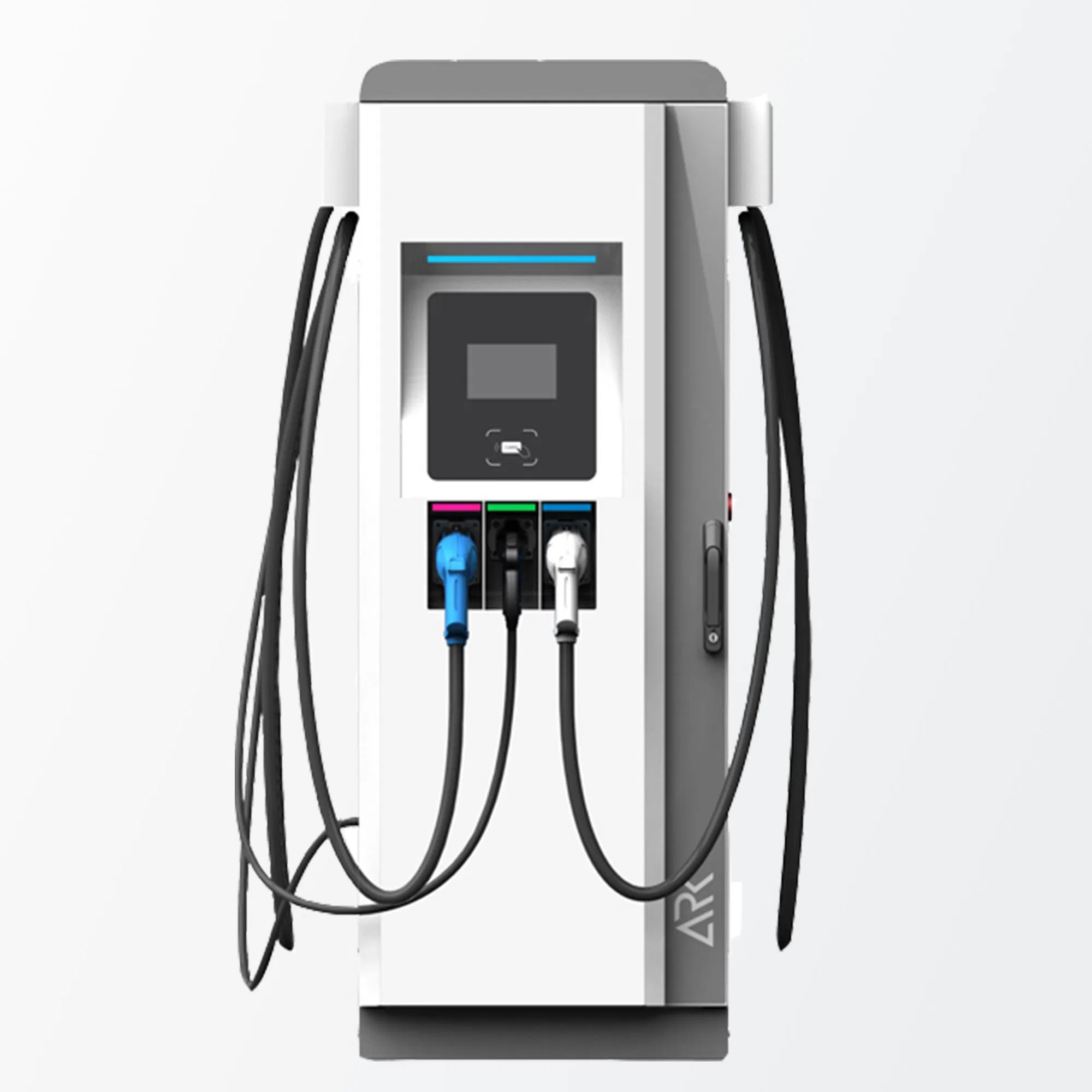

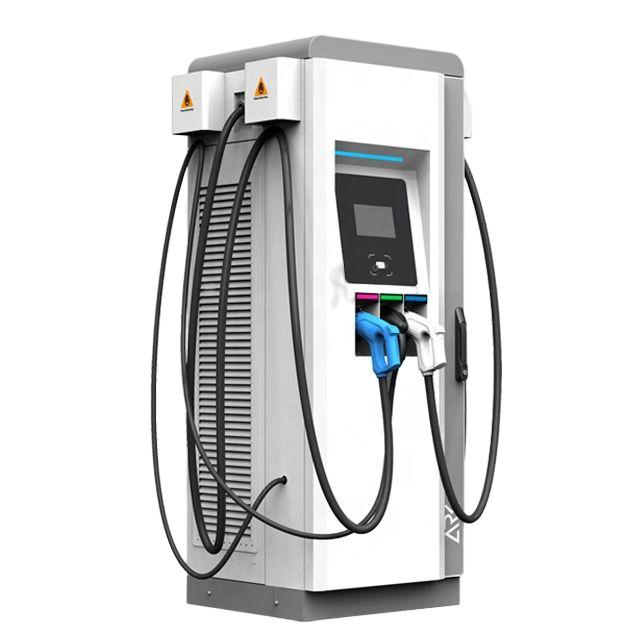

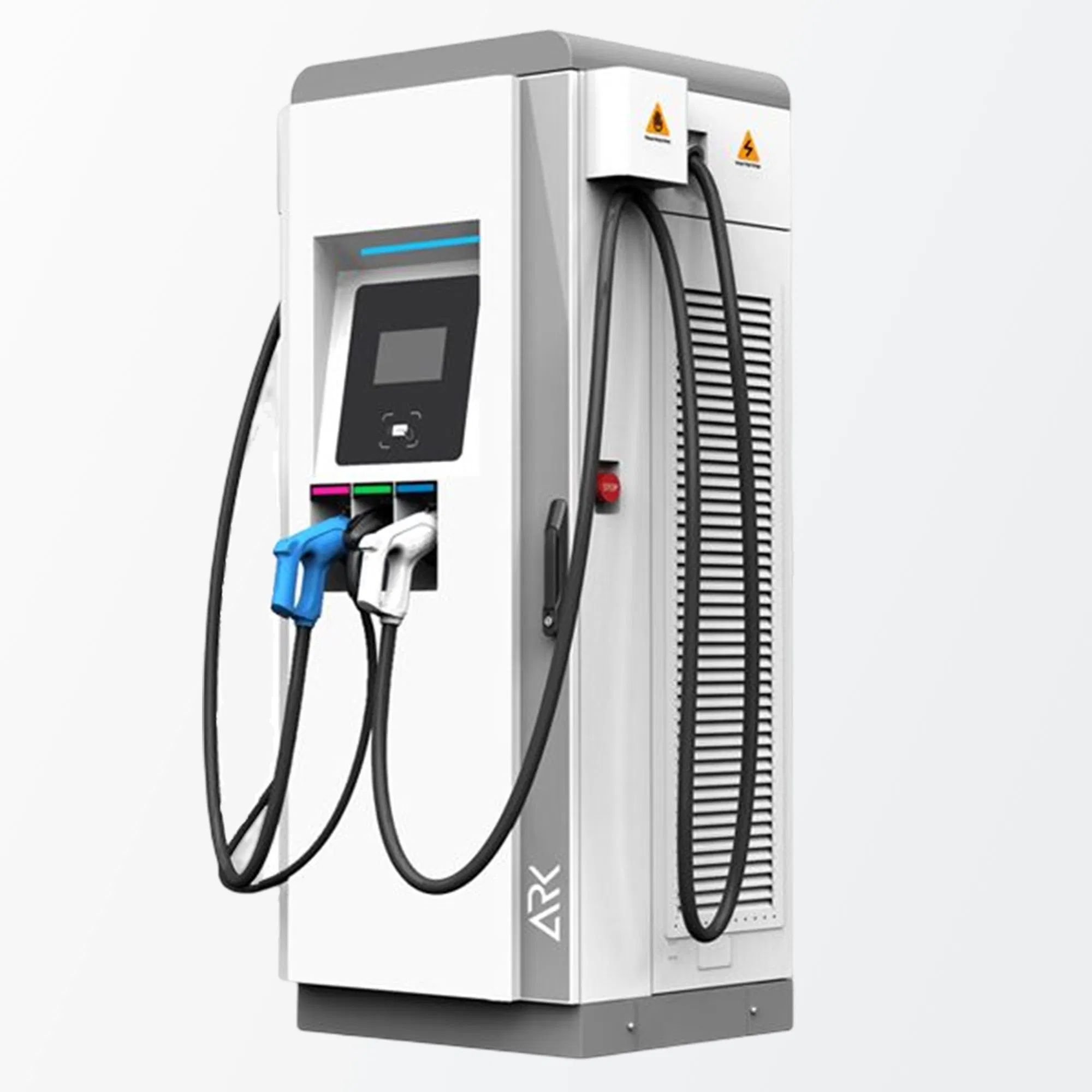

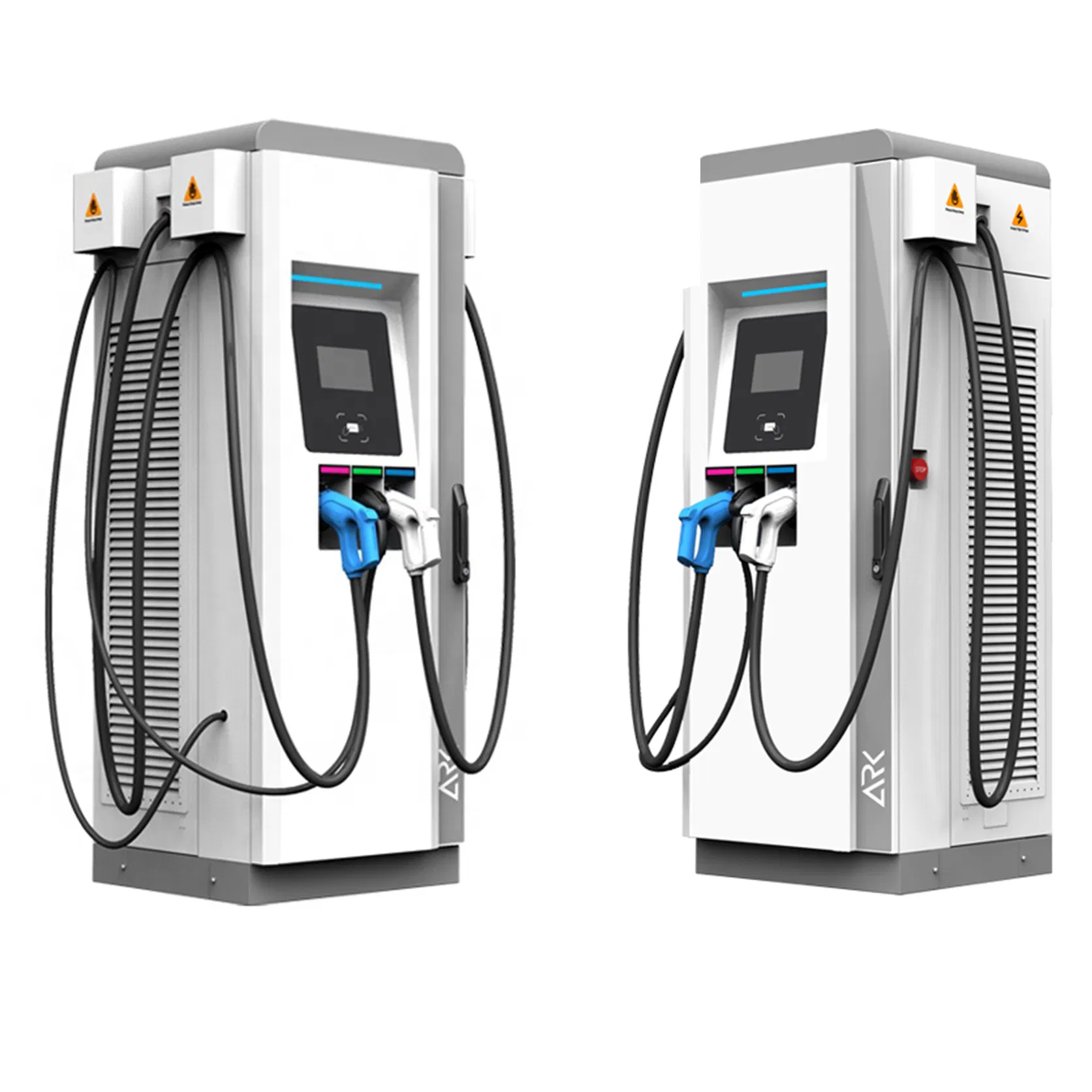

Level3 EV DC Charger for Electric Car Charging Floor Standing with Ground Protection

Basic Information

Model NO.

EF160

Ocpp

Ocpp1.6j Supported

Screen

7 Inch Touch Screen

Protection

IP54, IK10

Charging Type

Mode 4

Standard

IEC 61851-1, IEC 61851-23, Chademo

Certification

CE, TUV

Warranty

12 Months

Capacity

1000 Units Per Month

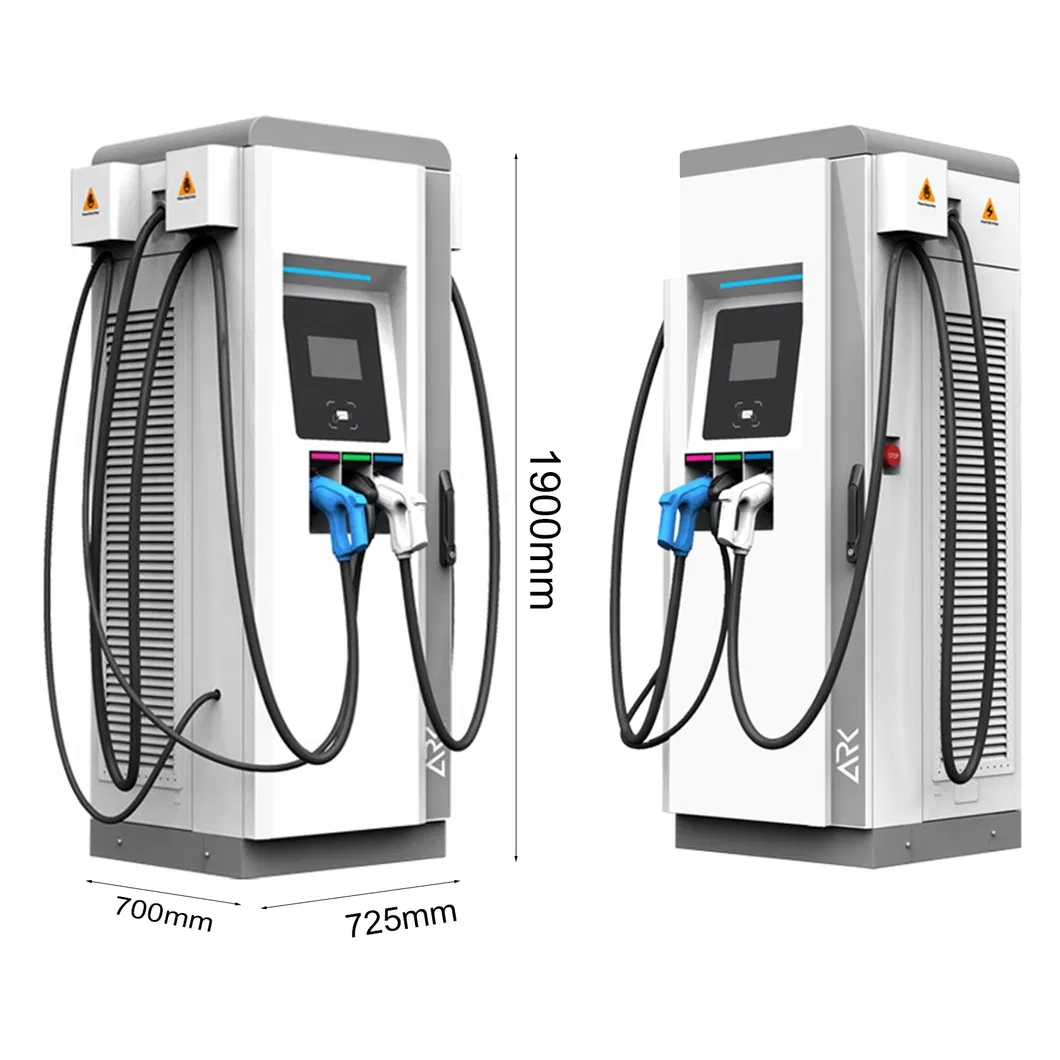

Dimensions

1900 x 725 x 700mm

Product Description

Product Parameters

Specification	Model	EF160 CJ082
Electrical Specifications	Input voltage	400Vac 3-phase
	Input frequency	50Hz/60Hz
	Rated power	60kW or 120KW DC
	Output voltage	CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
	Output current	CCS: 0 - 200A, CHAdeMO: 0 - 125A
	Efficiency	≥ 94%
	Power factor	≥ 0.99
Structure	Housing material	Metal case
	Installation method	Floor-stand type
	Weight	380kgs
	Cable length	5m

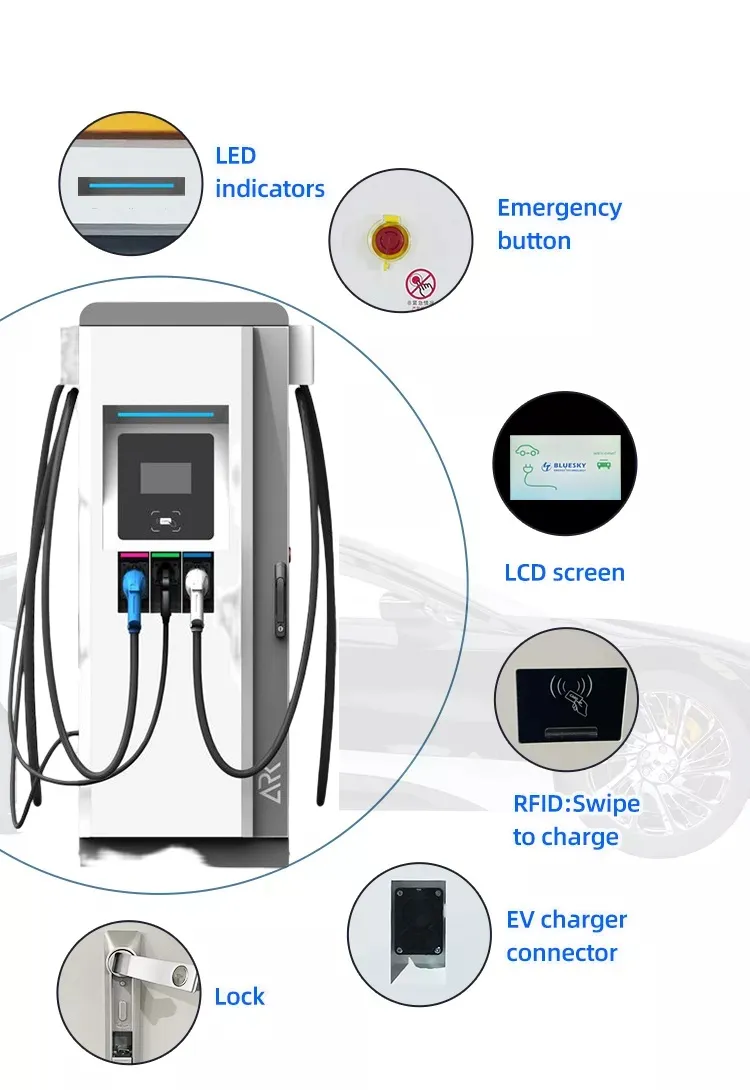

Function	User interface	Emergency button, LED indicator, RFID, 7" Touch screen

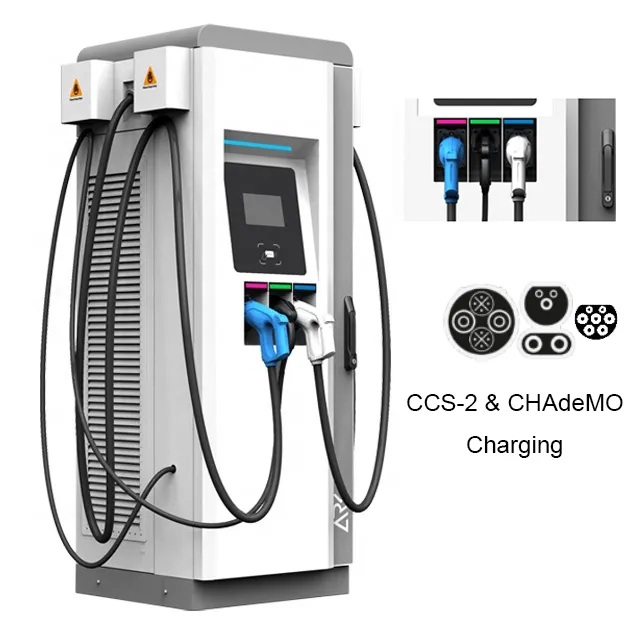

	Charging standards	CCS-1/2, CHAdeMO
	Communication	PLC, CAN, Wifi, 3g, 4g, OCPP 1.6
Environment	Working temperature	-30°C - +55°C
	Protection grade	IP54
	Security design	Over/under voltage, overload, leakage, grounding, over temp, lightening surge protection

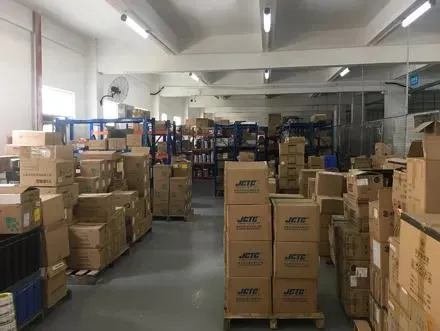

Company & Packaging

Frequently Asked Questions

Why choose us as your preferred EV Charger supplier?

We offer a wide range of product options with international standardization designs and smart back-end services. Our products pass rigorous laboratory tests and various application scenarios. We are capable of achieving both CE and UL certifications, supported by an experienced engineering team in global EV DC charger implementation.

Is there experience in implementing overseas charging station projects?

Yes, we are pioneers in overseas projects, collaborating with power companies in the UK for PV system integration, operators in the US for freeway charging networks from LA to San Francisco, and major automakers for DC fast charging services.

What are the advantages of your products?

Our products feature telecom-level design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wider input/output voltage ranges, superior temperature adaptation, and advanced modular designs for better reliability and future-proofing.

What are the differences between global DC fast charging standards?

There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. We provide chargers compatible with the most widely used international standards to suit your regional needs.

Does higher output power always mean faster charging?

Not necessarily. Charging speed is limited by the vehicle's battery capacity. However, high-power chargers are significant because they can support dual connectors to charge two vehicles simultaneously and ensure compatibility with future battery improvements.

How do you provide after-sales support?

We provide comprehensive technical training, including written materials and videos, to help customers master parts replacement and maintenance. In urgent situations, professional technicians are available to provide dedicated support.
