Intelligent DC Power Supply System

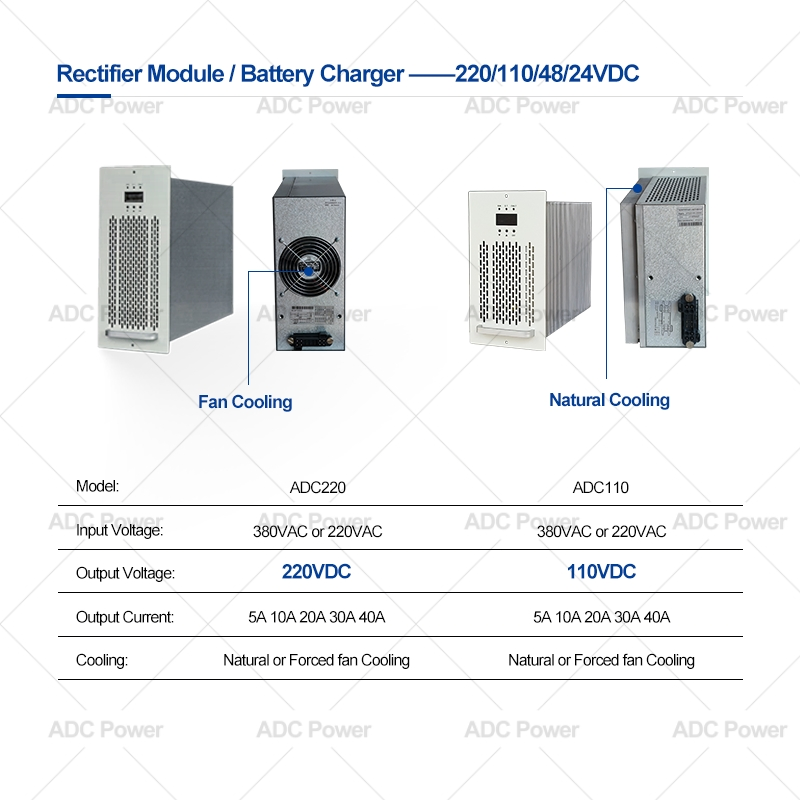

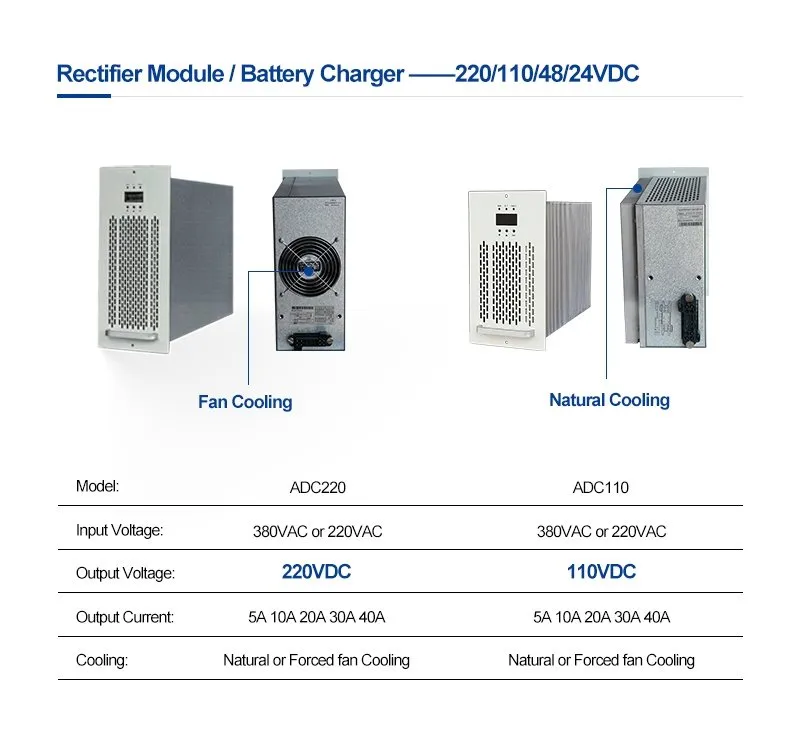

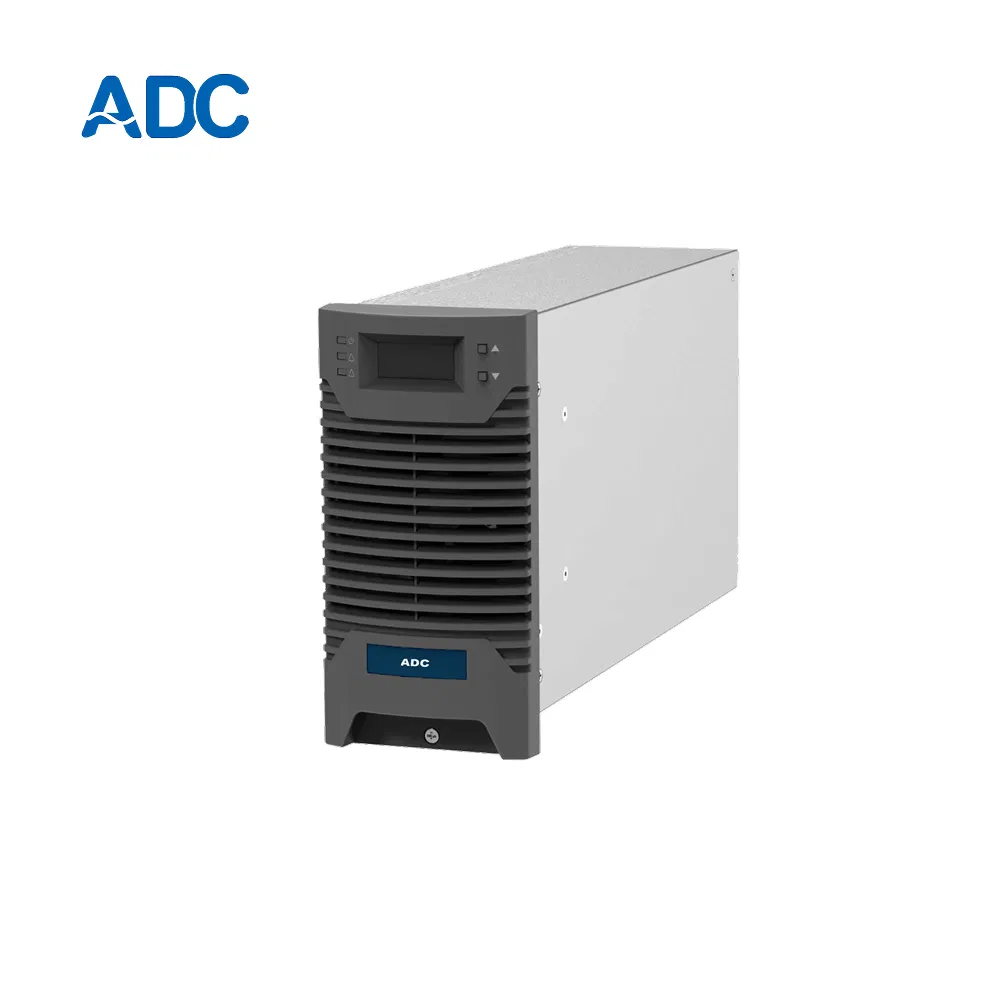

Our Intelligent DC Power Supply System is designed to deliver stable, efficient, and reliable DC power for critical industrial and power applications. The system integrates multiple advanced components including a rectifier battery charger (220/110/48/24VDC), DC system monitor, DC system controller, and a Battery Management System (BMS) for internal resistance monitoring.
| Input & Output Parameters | |
|---|---|
| Input Voltage | 323 to 456VAC 50/60Hz±5% |
| Power Factor | ≥0.94 @ 380VAC |

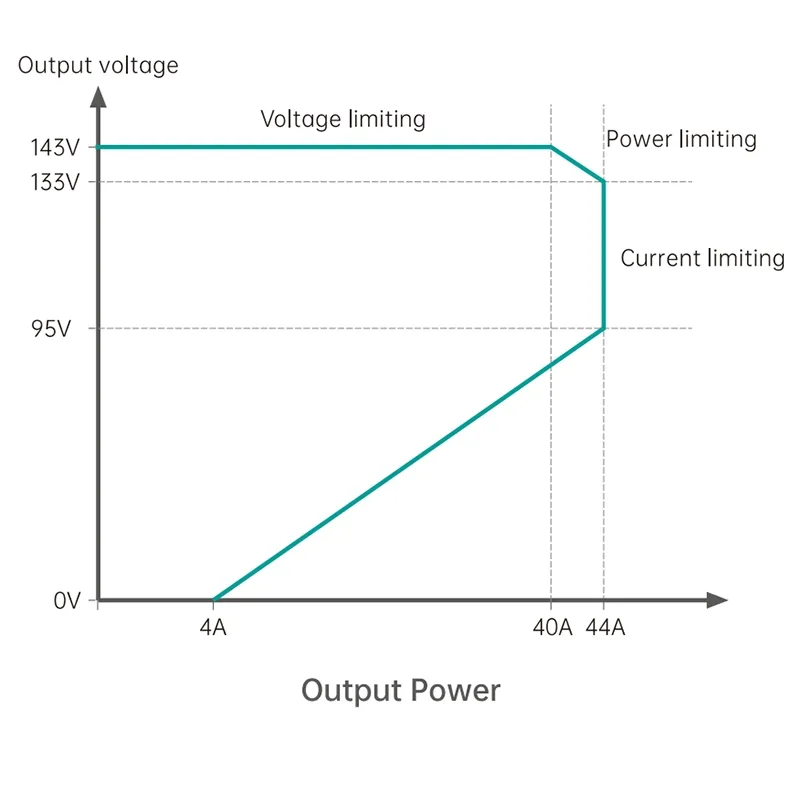

| Output Voltage | 115VDC (99 to 143V adjustable) |
| Output Power | 5720W (Three-phase) / 2860W (Default-phase) |
| Voltage Regulation Accuracy | ±0.5% (0% to 100% load) |
| Efficiency | ≥91% |
| Operating Temp | -10 to +45℃ (100% power) |
| MTBF | 300,000 hours (25℃) |
With over 20 years in power technology, we specialize in the following developments:
Our production facilities cover 40,000 m² with ISO9001 and ISO14001 certification, ensuring high-quality production and timely delivery for global markets.
