Sunevo 22kw Solar Powered EV Charger Station 20kw 30kw Wall Mounted Portable Charging Station

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Wall Mounted

Send Inquiry

Product Description

Basic Information

Model NO.

EV Charger DC 20-30KW

EV Charger Type

Charger Capacity

20/30kw

IP Ratings

IP 54

Mounting

Wall-Mounted/Pile Type

Cooling

Air-Cooled

Display

7 Inches Touch Screen

User Authentication

QR Code/RFID Card/Password

Communication

Ethernet/3G/4G/WiFi

Origin

China

Product Description

Parameters	Requirements
General Requirements
EV Charger Type	DC
Charger Capacity	20KW	30KW
Mounting	Wall-Mounted
Input Requirements
AC Supply System	Three-Phase, 5 Wire AC system
Nominal Input Voltage	AC380V±15%
Input Frequency	45-65Hz
Environmental & Mechanical
Ambient Temperature	-25 to 55°C
IP Ratings	IP 54
Cooling	Air-cooled
Output Requirements
Output Voltage	DC200-750V / DC150-500V(JIS)
Max. Current	80 Amp	125 Amp
Communication & Safety
Protocol	OCPP 1.6J Protocol (Optional)
Interface	Ethernet/3G/4G/WIFI (Optional)
Safety Parameters	Over Current, Over/Under Voltage, Surge, Leakage, Short Circuit, Over Temp Protection

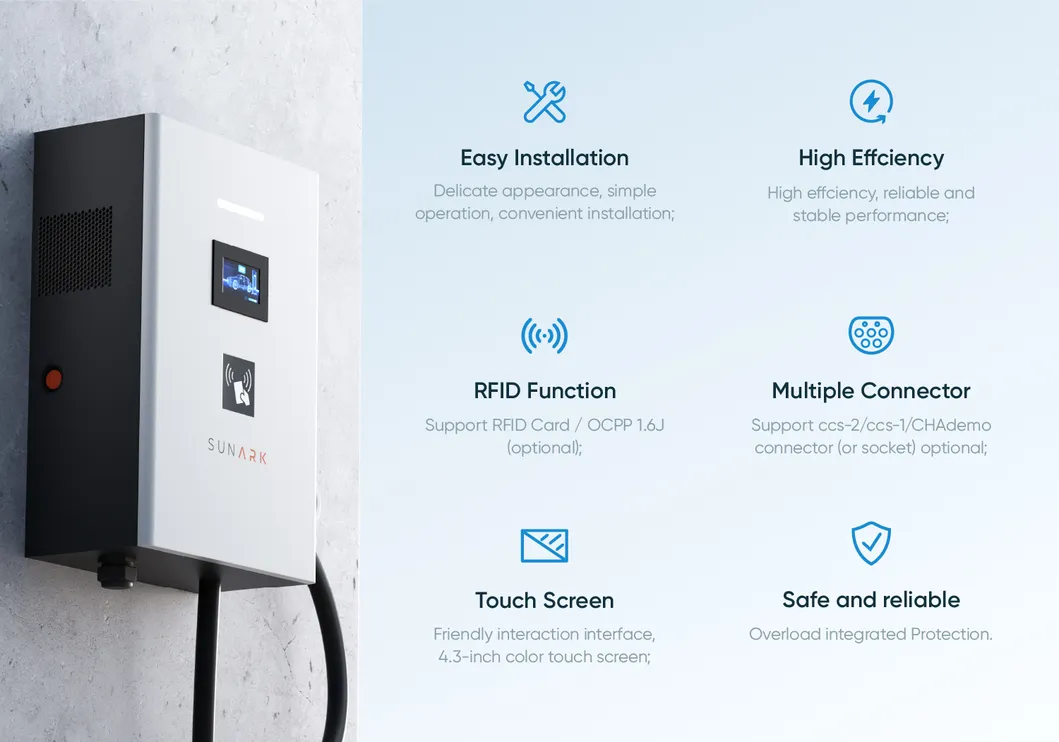

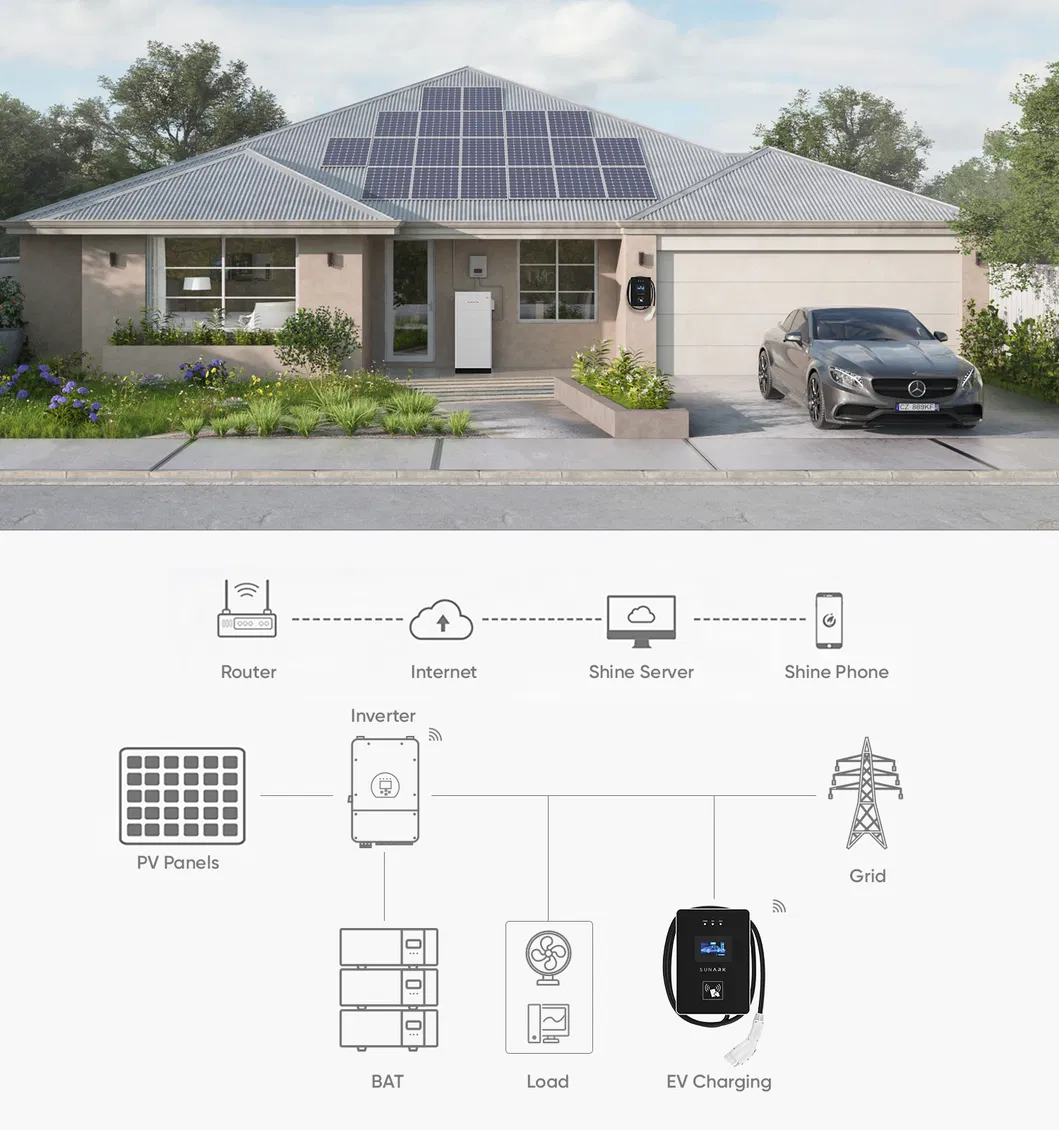

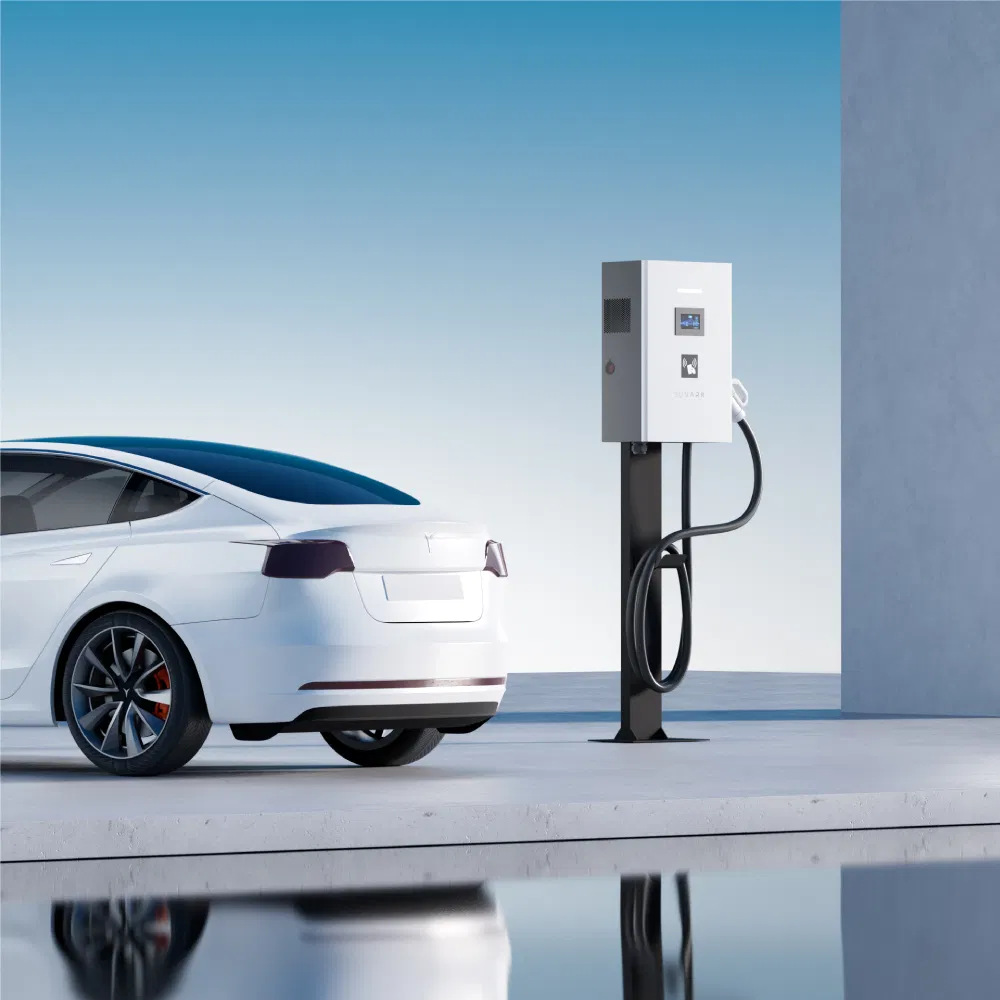

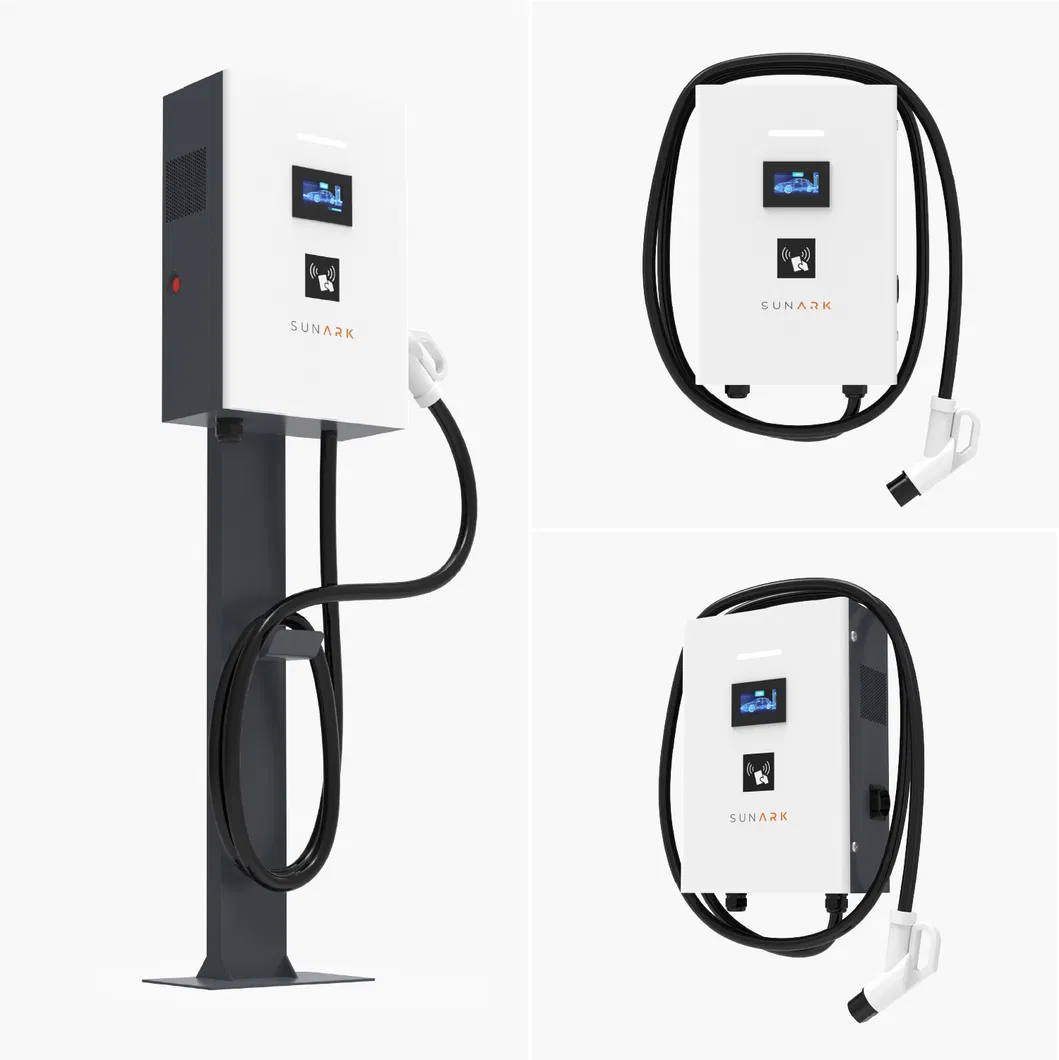

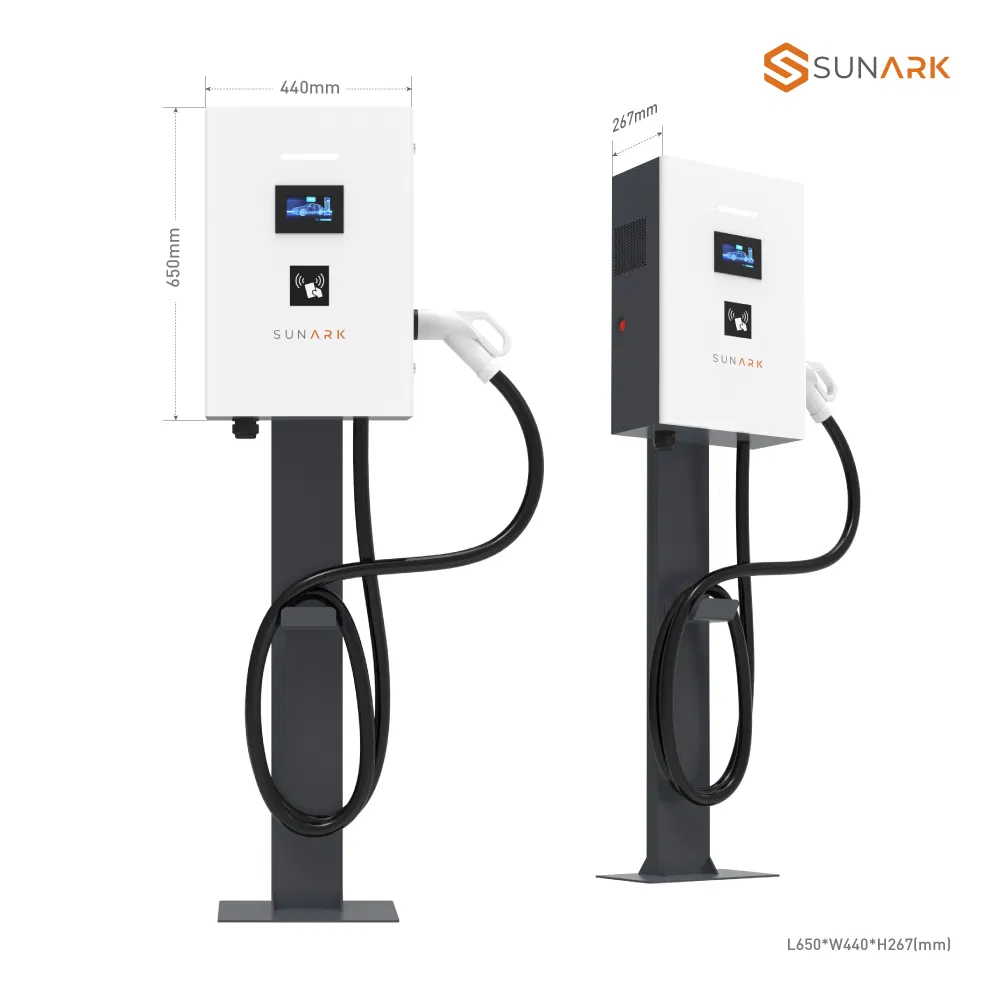

Detailed Photos & Applications

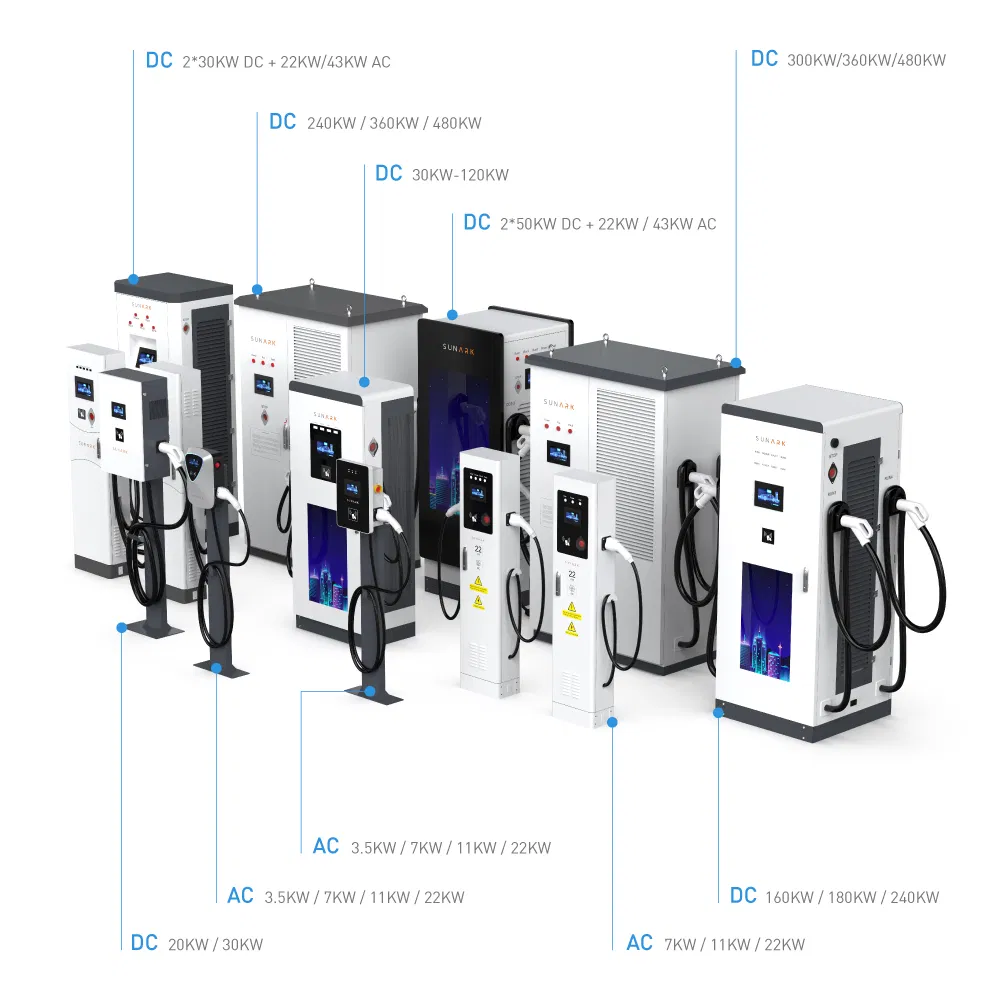

Products Series

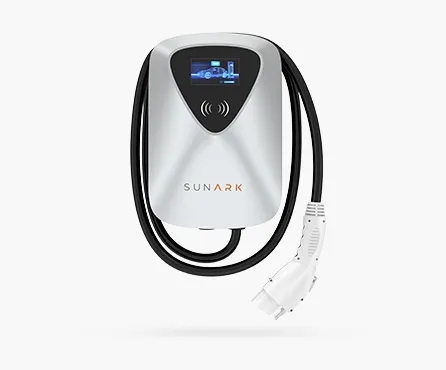

AC 3.5-22KW Series

Rated Power: 3.5/7/11/22KW
Output Current: 16/32/50A
Connector: CCS1/2, CHAdeMO

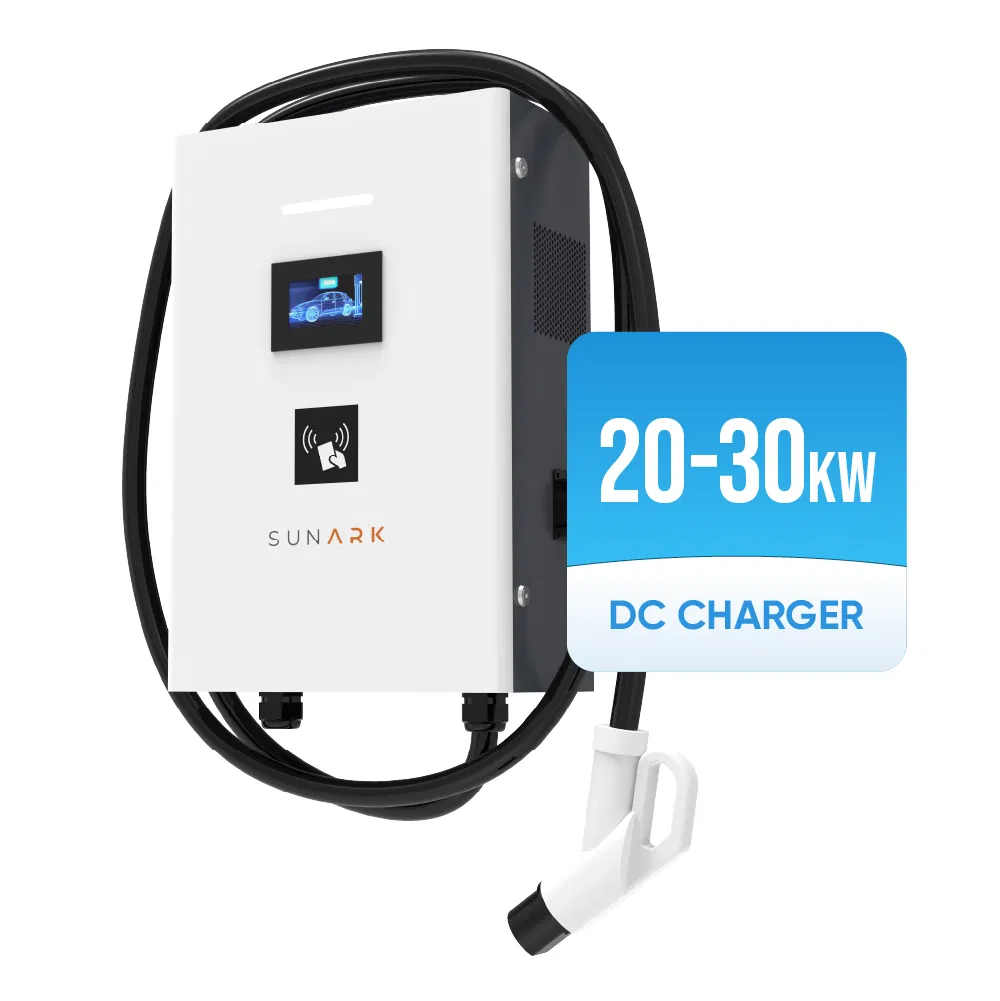

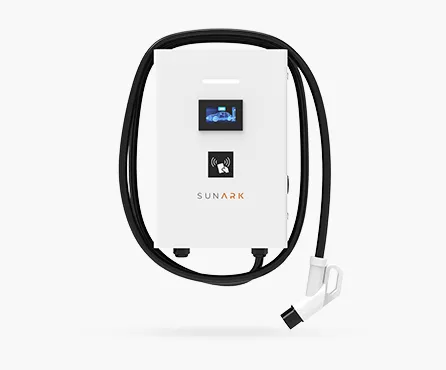

DC 20-30KW Series

Output Current: 80/125A
Output Voltage: 200~750V / 150-500V
Connector: CCS1/2, CHAdeMO

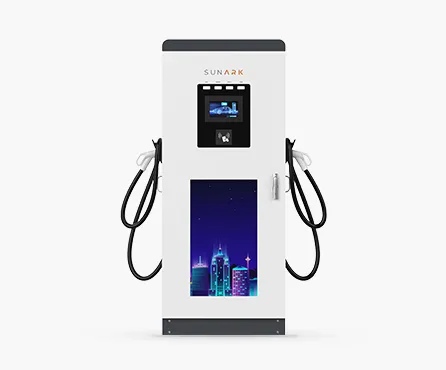

DC 30-80KW Series

Rated Power: 30/40/50/60/80KW
Output Current: 125/150/200A
Voltage: 200~750V

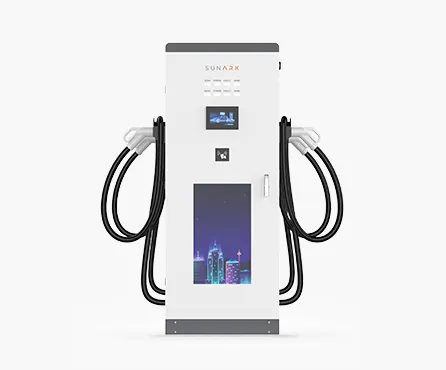

DC 90-240KW High Power

Rated Power: up to 240KW
Output Current: 200A*2
Supports Dual Charging

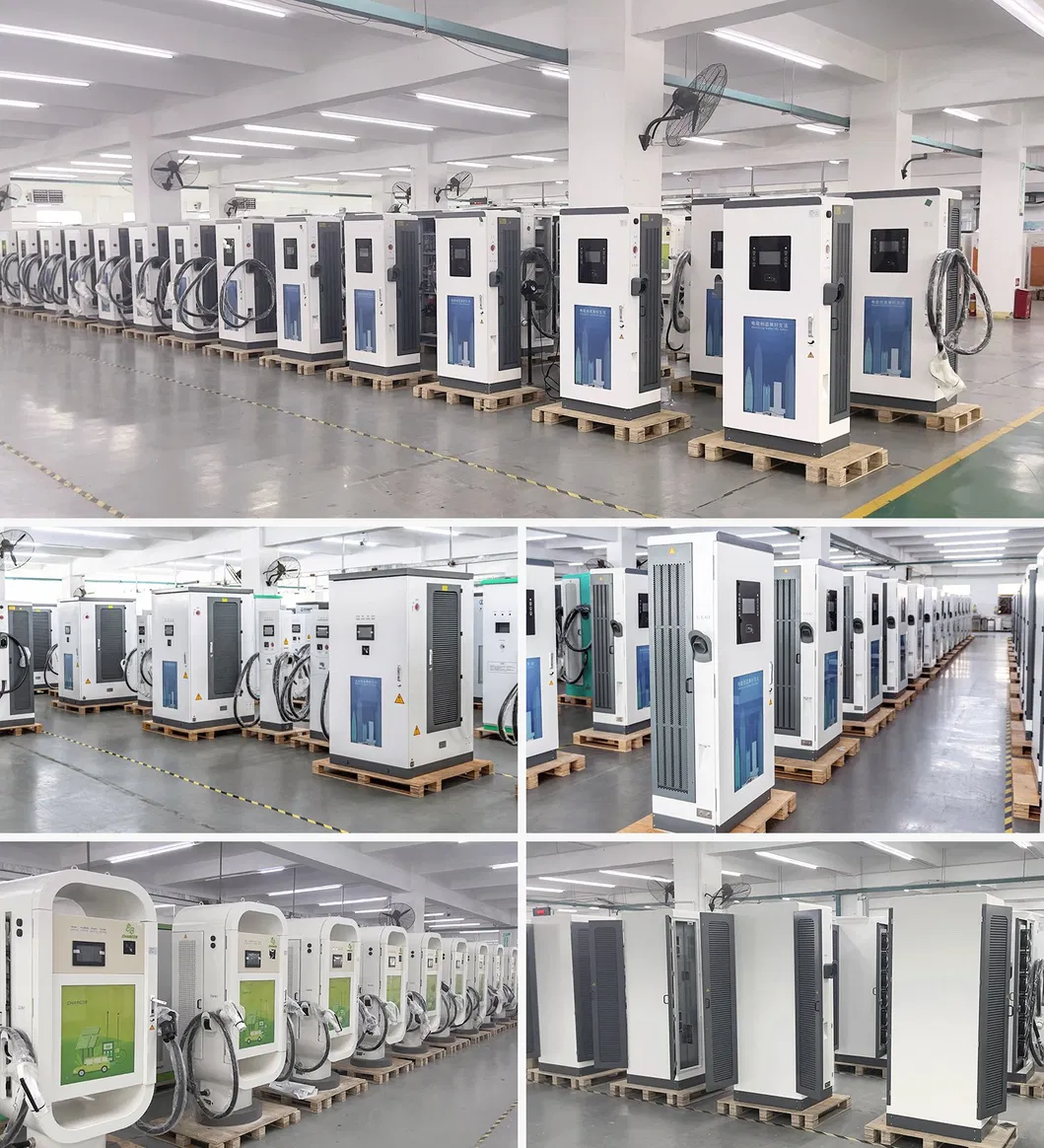

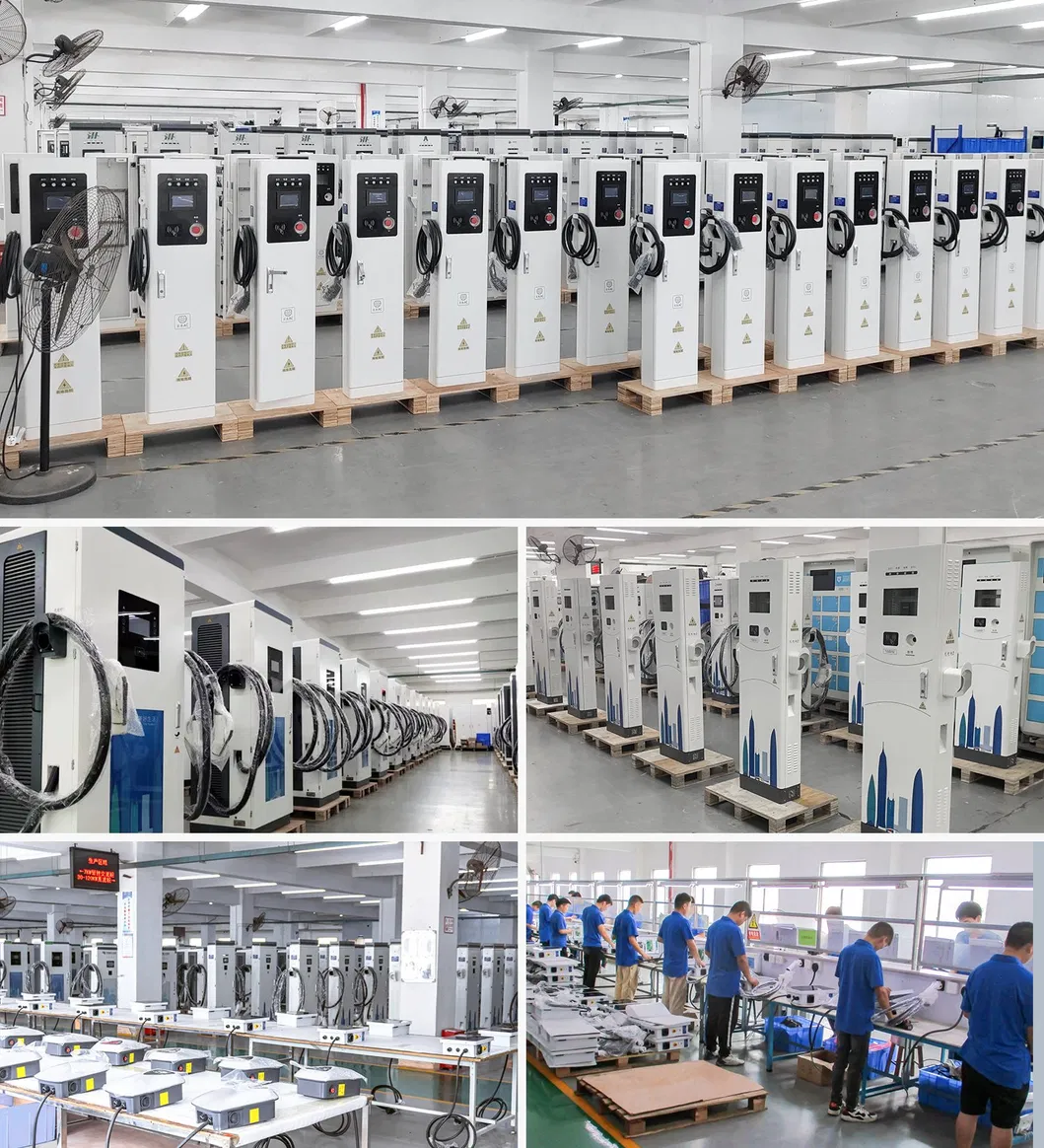

Factory & Certificates

Frequently Asked Questions

What is the charging capacity of this DC EV charger?

This model offers a charging capacity of either 20KW or 30KW, making it ideal for both private and public fast-charging needs.

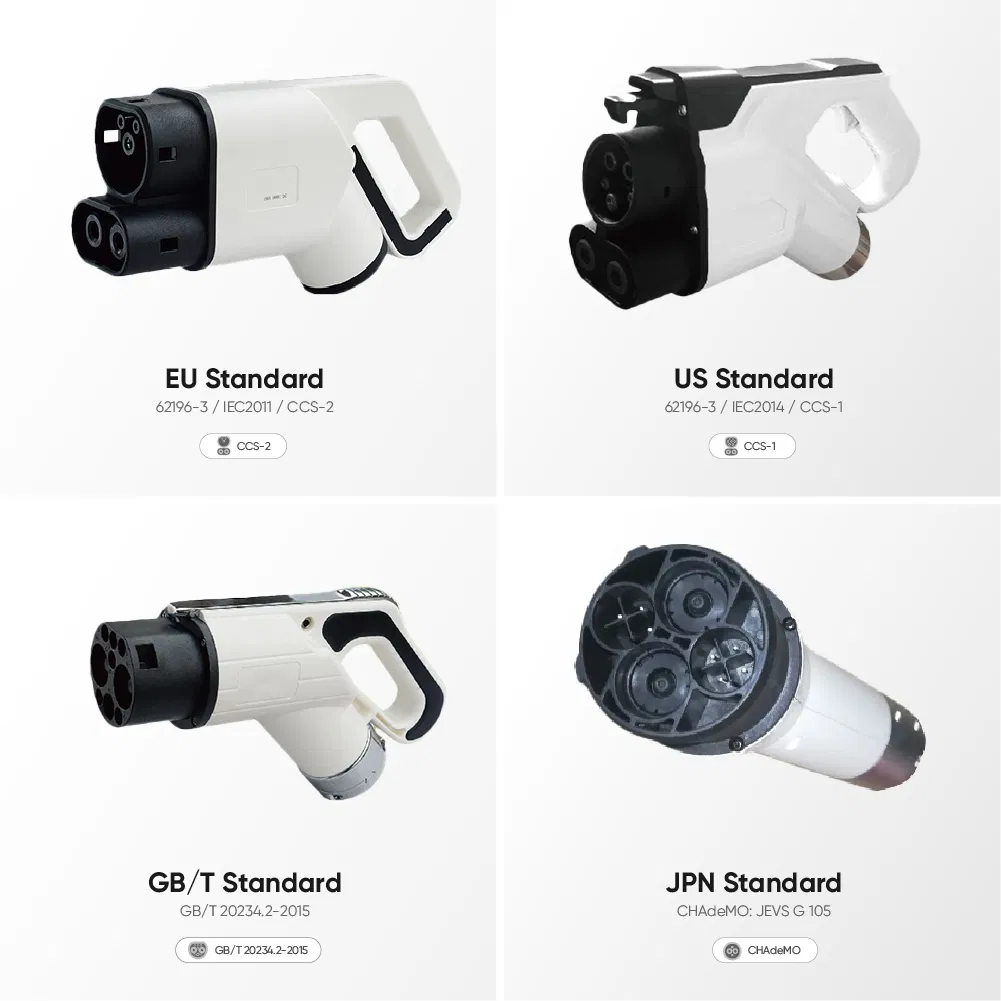

Which connector types are supported?

Our chargers are compatible with major global standards including CCS1, CCS2, and CHAdeMO, ensuring support for a wide range of electric vehicles.

Is the charger suitable for outdoor installation?

Yes, the charger has an IP54 rating, providing excellent protection against dust and water, suitable for outdoor wall-mounted or pile-type installations.

How do users authenticate themselves to start charging?

The system supports multiple authentication methods including QR Code scanning, RFID cards, and secure password login via the 7-inch touch screen.

Does the charger support remote management?

Yes, it optionally supports the OCPP 1.6J protocol and can connect to a Central Management System (CMS) via Ethernet, 3G/4G, or WiFi.

What safety protections are built into the device?

The charger includes comprehensive safety features such as Over/Under Voltage protection, Surge protection, Leakage protection, Short Circuit protection, and Over Temperature protection.
