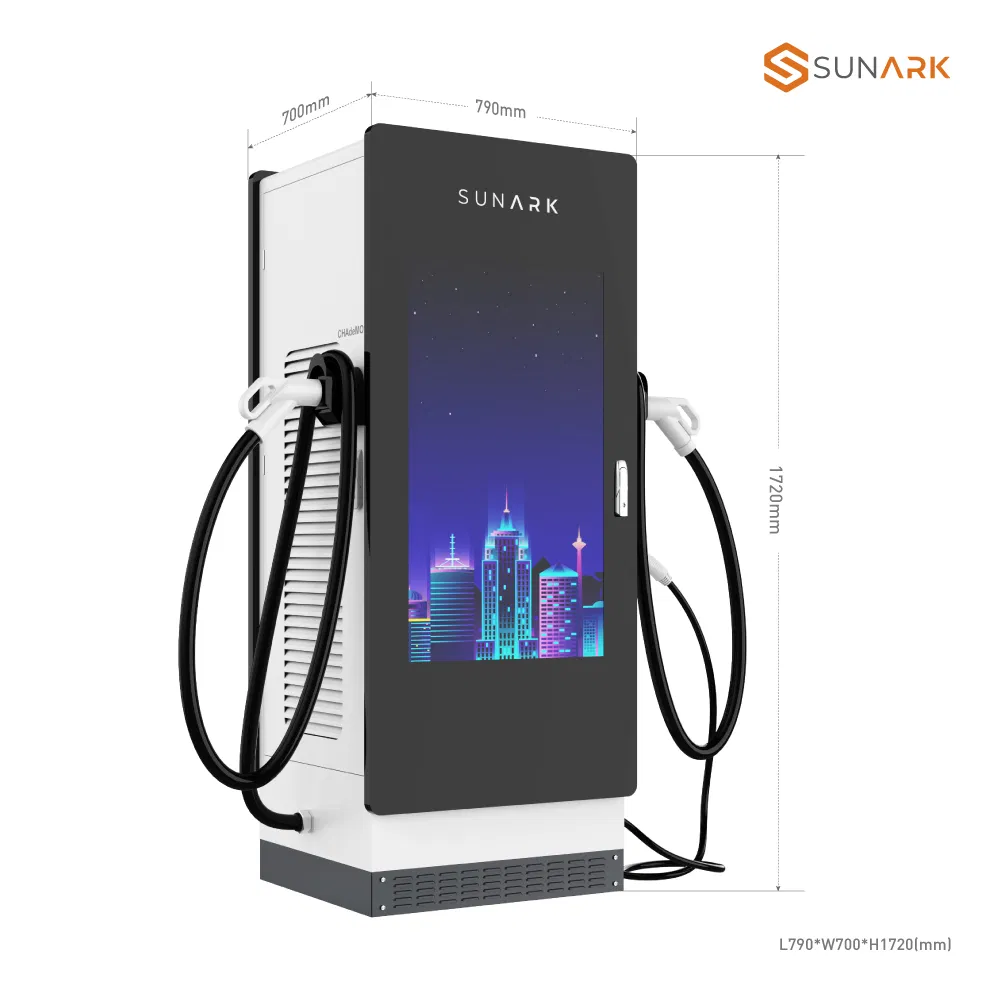

EV Fast Charging Stations 7kw 11kw 22kw Type 2 Solar Powered Electric Car Charger for Parking Lot

1 / 5

EV Fast Charging Stations 7kw 11kw 22kw Type 2 Solar Powered Electric Car Charger for Parking Lot

Customization:	Available
Installation:	Floor Type
Location:	Private Use Public Use

Send Inquiry

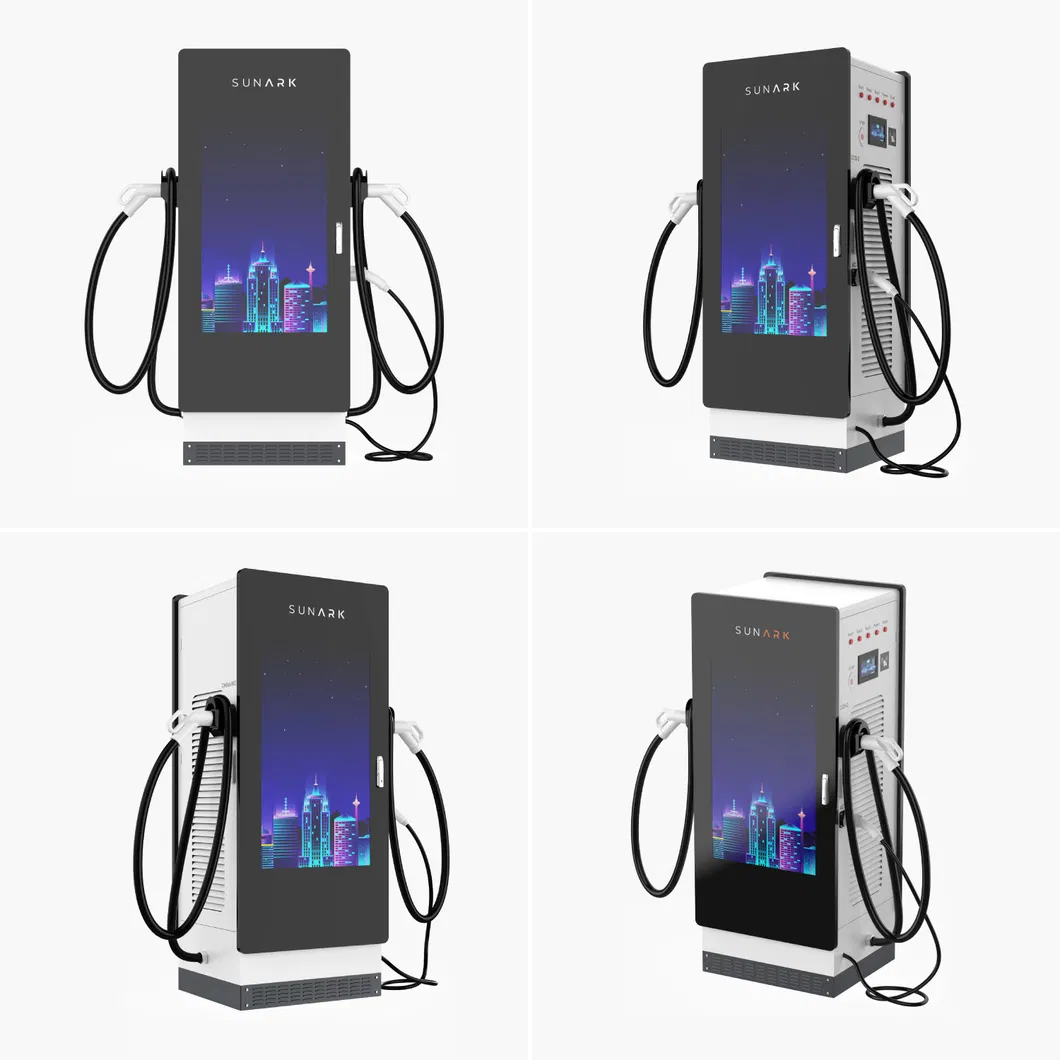

Product Description

⚡ Basic Specifications

Model NO.

EV Charger DC/AC

Charging Interfaces

One Pile with Multiple Charges

EV Charger Type

DC+AC

Charger Capacity

30kw/50kw DC*2 + 22kw/43kw AC*1

Mounting

Ground-Mounted

Cooling

Air-Cooled

IP Ratings

IP 54

Display

7 Inches Touch Screen

Authentication

QR Code/RFID Card/Password

Protocol

OCPP 1.6j (Optional)

Communication

Ethernet/3G/4G/WiFi

Origin

China

📋 Product Overview

Parameters	Requirements

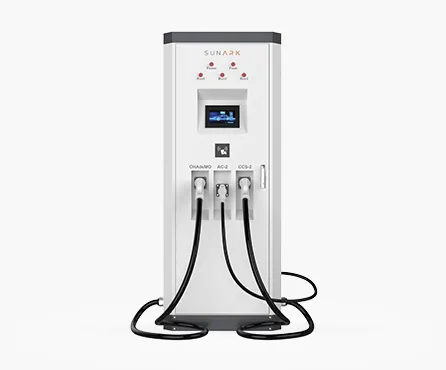

EV Charger Type	2DC + 1AC	/

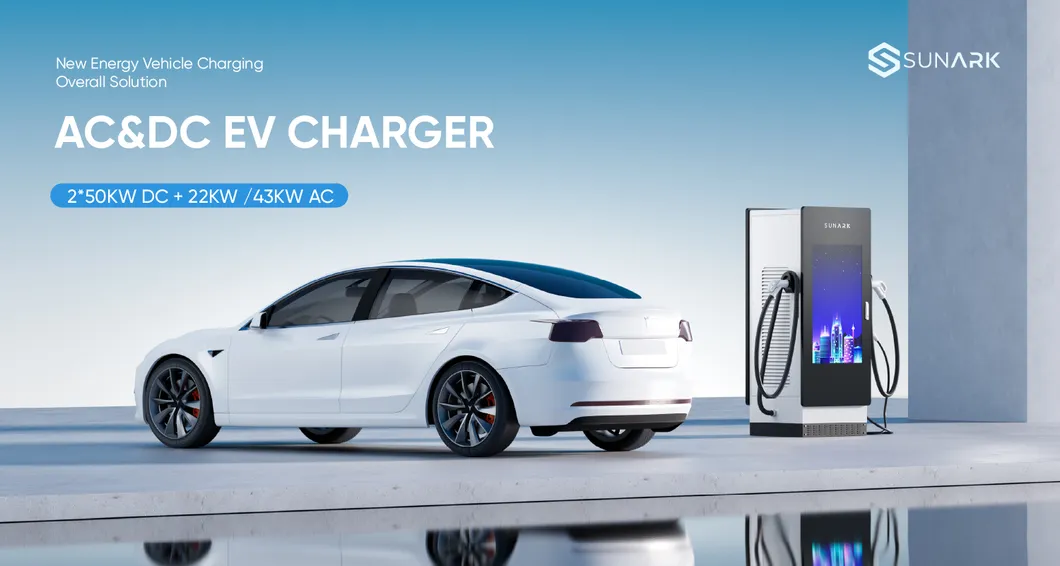

Charger Capacity	2*30KW DC + 22KW/43KW AC	2*50KW DC + 22KW/43KW AC
Input Voltage	AC380V±15% (Three-Phase, 5 Wire)
Frequency	45-65Hz
Working Temp.	-25 to 55°C
IP Rating	IP 54
Output Types	CCS-2/CCS-1, CHAdeMO (Max 30KW)	CCS-2/CCS-1, CHAdeMO (Max 50KW)
Safety Protection	Over/Under Voltage, Surge, Leakage, Short Circuit, Over Temperature

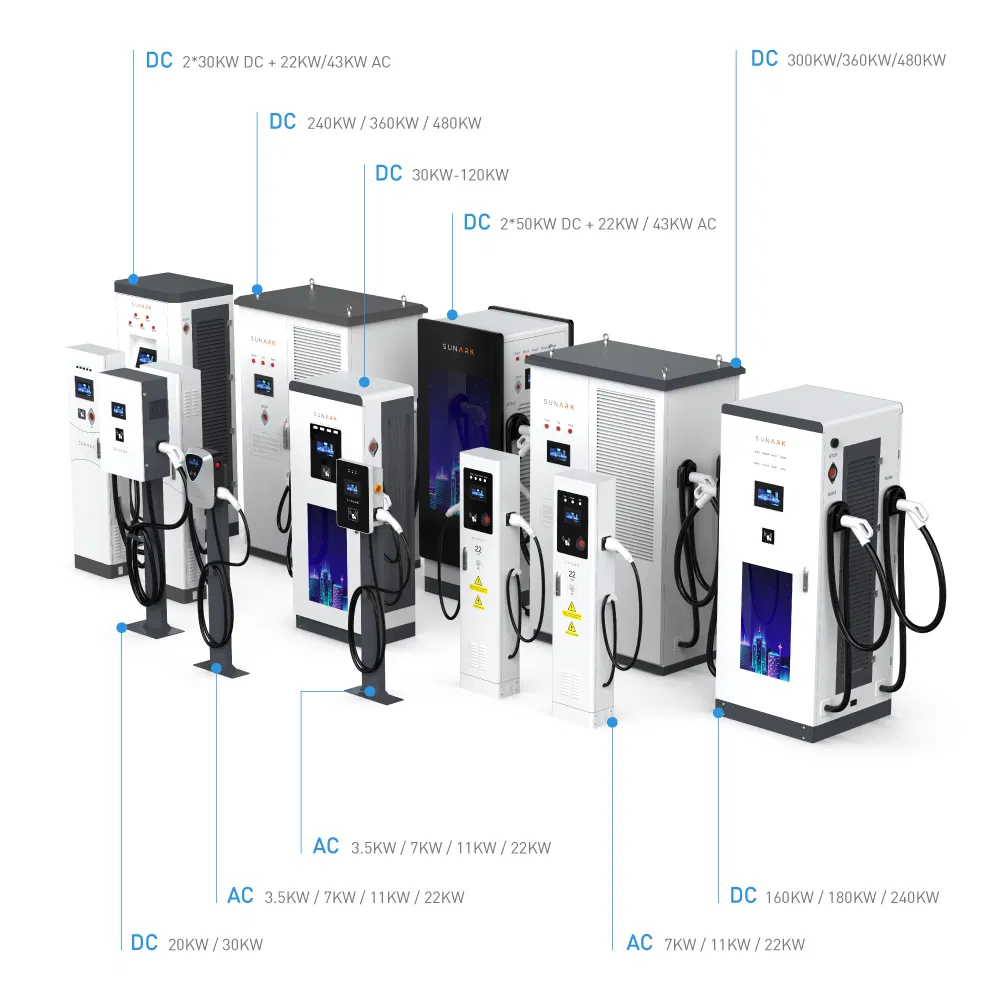

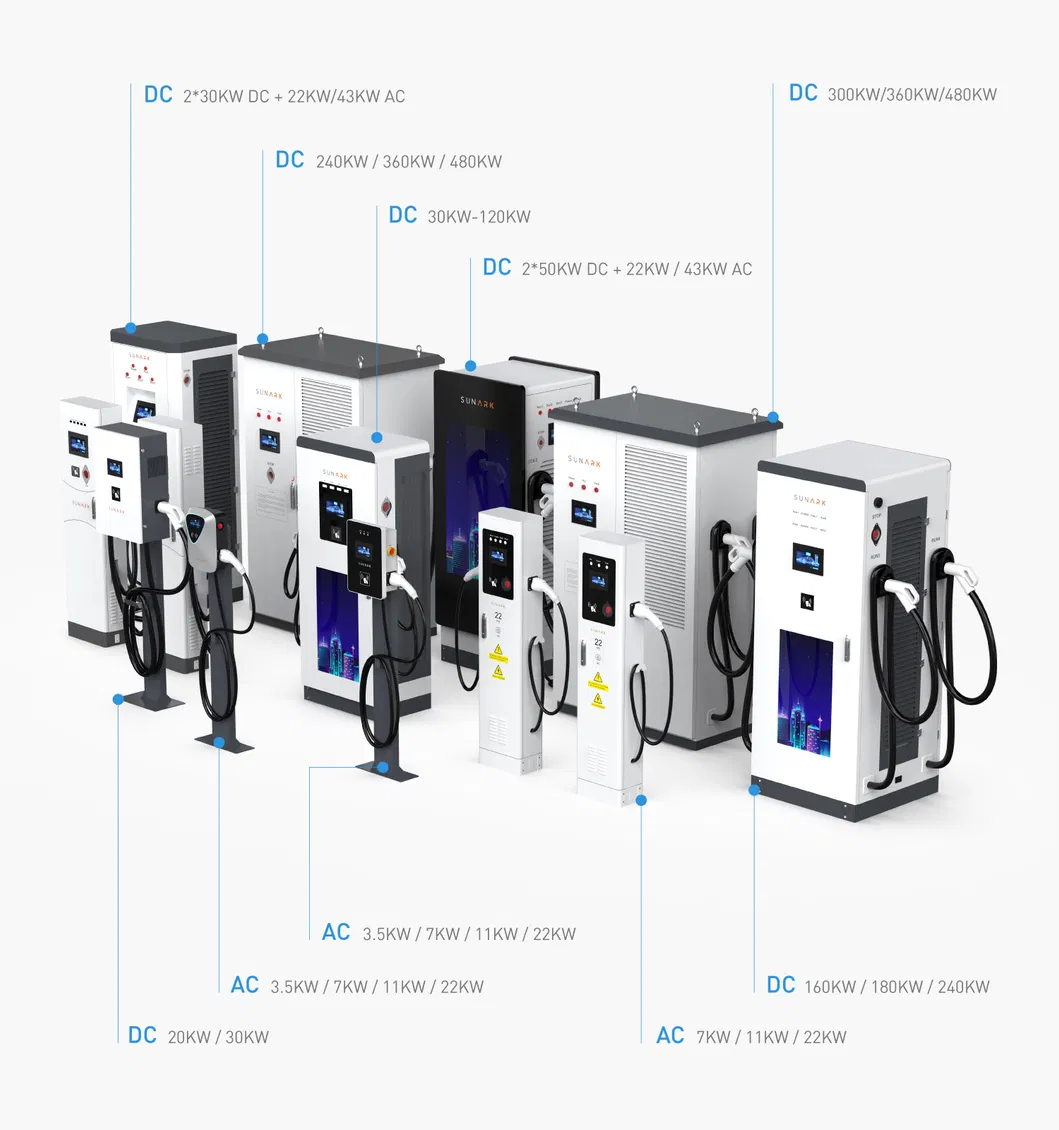

🚗 Product Series Lineup

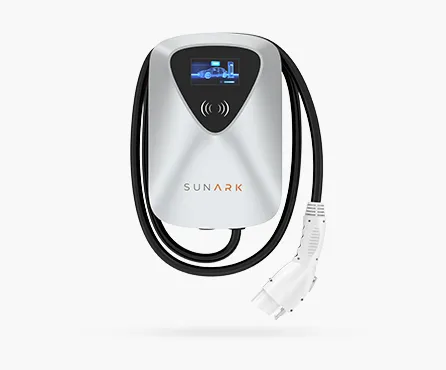

AC 3.5-22KW

Rated Power: 3.5/7/11/22KW
Output Current: 16/32/50A
Voltage: 220~240V, 380-415V
Connector: CCS1/2, CHAdeMO

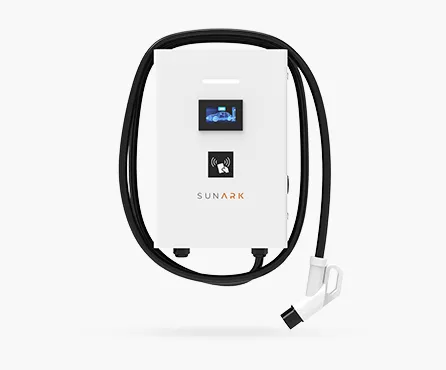

DC 20-30KW

Rated Power: 20/30KW
Output Current: 80/125A
Voltage: 200~750V, 150-500V
Connector: CCS1/2, CHAdeMO

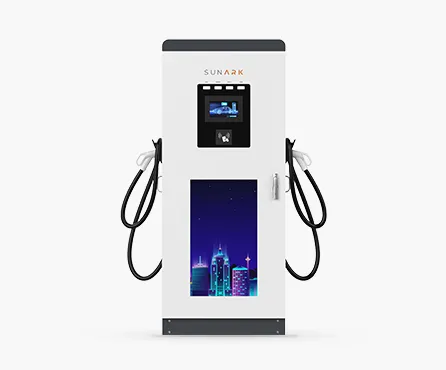

DC 30-80KW

Rated Power: 30/40/50/60/80KW
Output Current: 125/150/200A
Voltage: 200~750V, 150-500V

DC 30KW*2 + AC 22/43KW

Dual DC Output + Single AC Output
DC: 30KW (150-750VDC)
AC: 22KW/43KW (380~400Vac)

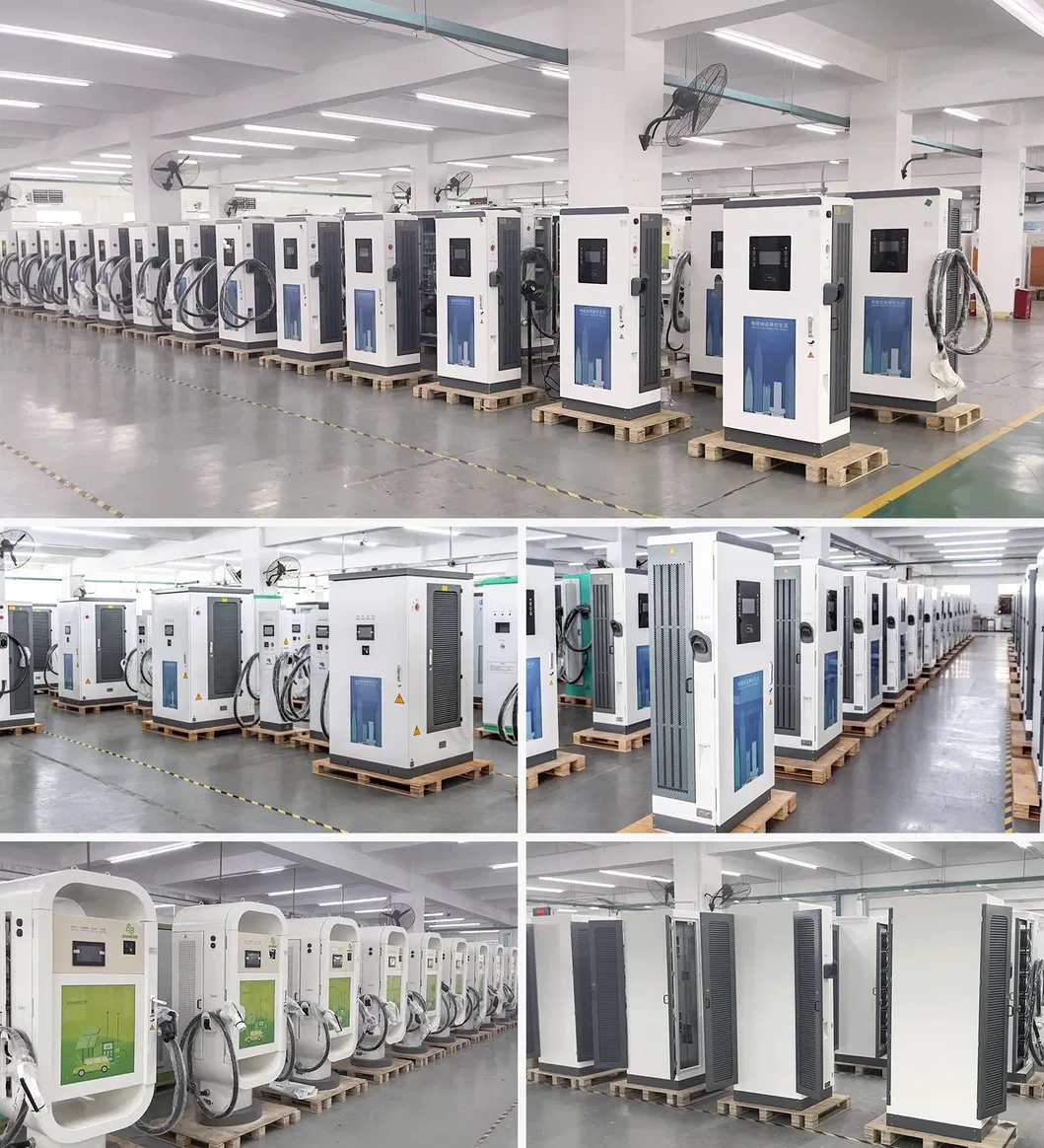

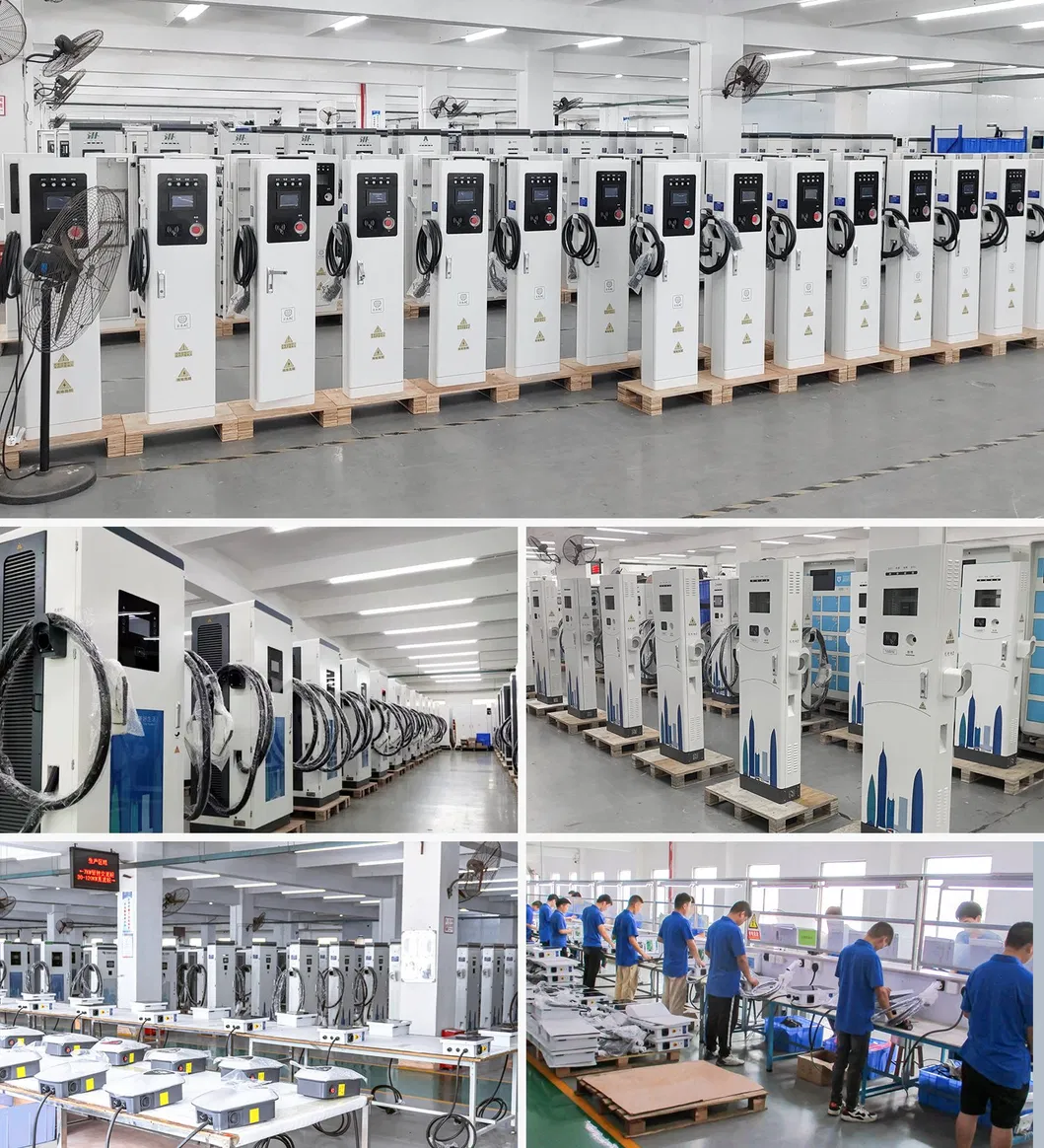

🏭 Manufacturing & Quality

The manufacturer is a professional battery and charging solution provider since 2002, specializing in environmentally friendly energy storage and power systems. By developing advanced technology and adopting world-class production equipment, we ensure long product life, high energy density, and robust safety features. With approximately 2,000 employees and a strong research team, the performance of our products meets and exceeds international standards, backed by numerous national and international patents.

❓ Frequently Asked Questions

1. What types of electric vehicles can this station charge?

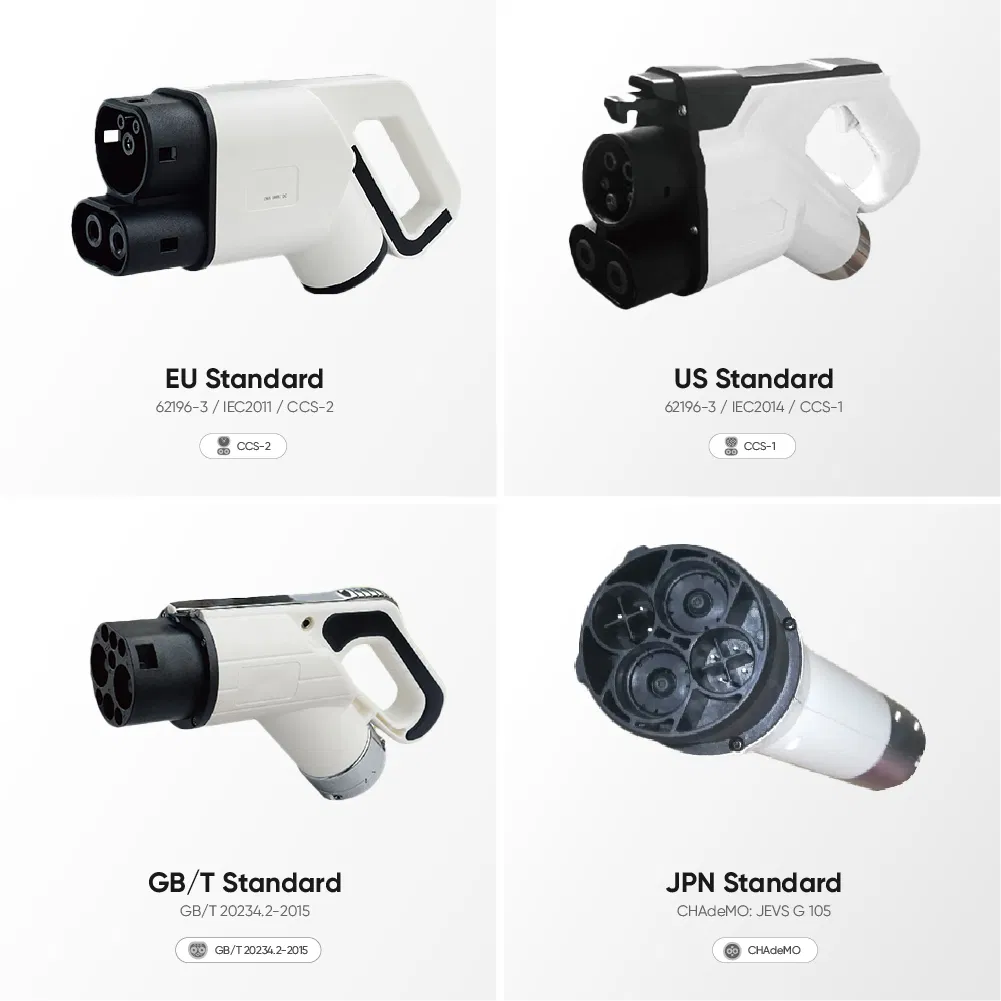

This station supports multiple standards including CCS-1, CCS-2, and CHAdeMO, making it compatible with almost all modern electric vehicles (EVs) that support DC fast charging or AC charging.

2. Can it charge multiple vehicles simultaneously?

Yes, our "One Pile with Multiple Charges" design allows for multiple outputs (e.g., 2 DC + 1 AC), enabling several vehicles to be connected and charged at the same time depending on the model configuration.

3. Is the charger suitable for outdoor installation?

Absolutely. The units have an IP54 rating, providing protection against dust and water splashes, and are designed to operate in temperatures ranging from -25°C to 55°C.

4. How do users start a charging session?

Users can authenticate and start charging through three convenient methods: scanning a QR code, using an RFID card, or entering a password on the 7-inch touch screen.

5. Does the station support remote management?

Yes, it supports the OCPP 1.6J protocol (optional), allowing operators to connect the charger to a Central Management System (CMS) via Ethernet, 4G, or WiFi for remote monitoring and billing.

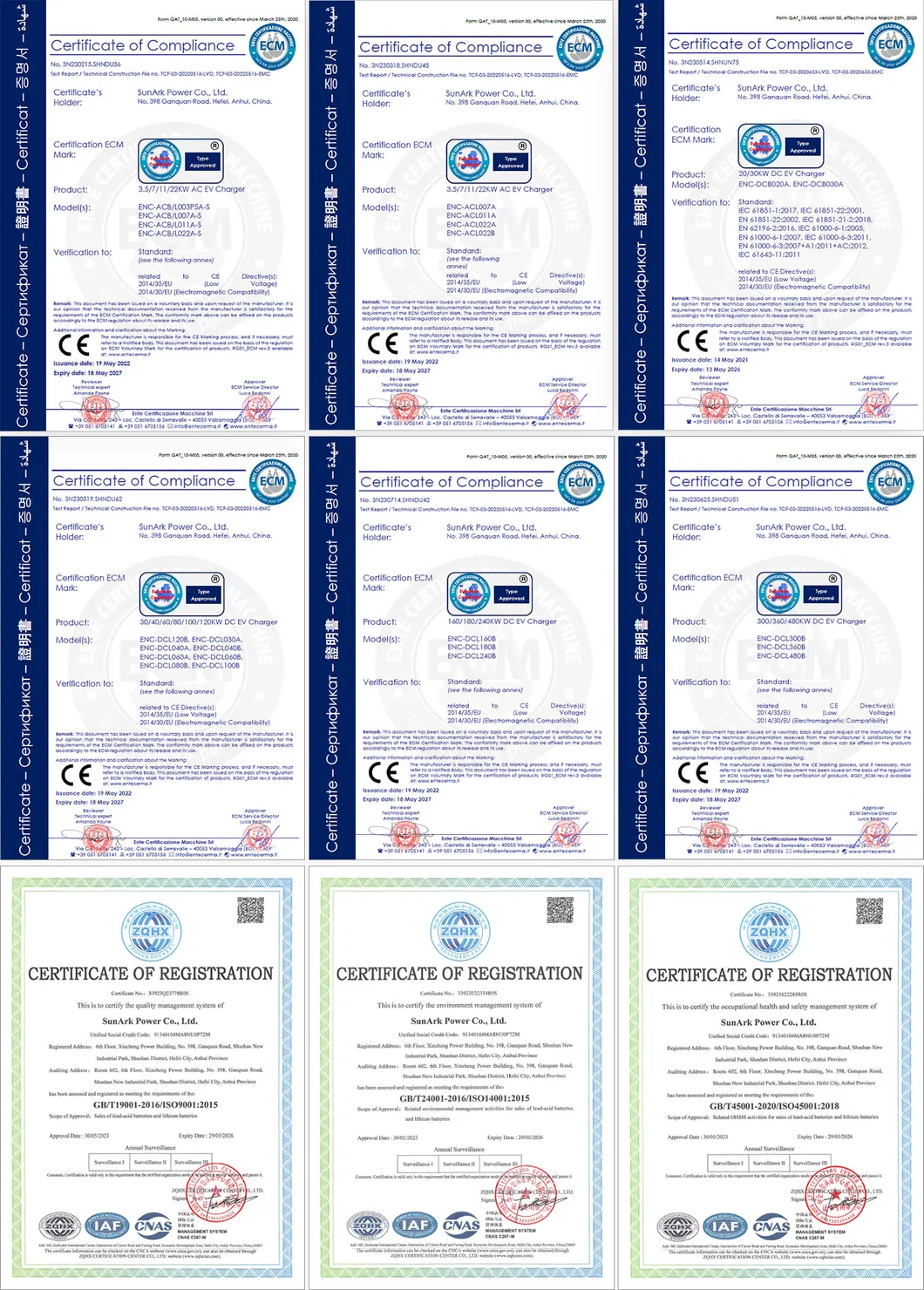

6. What safety certifications do these chargers hold?

The chargers comply with international standards including IEC 62196 (2017), IEC 61851 (2017), and SAE J1772, ensuring high levels of electrical safety and operational reliability.
