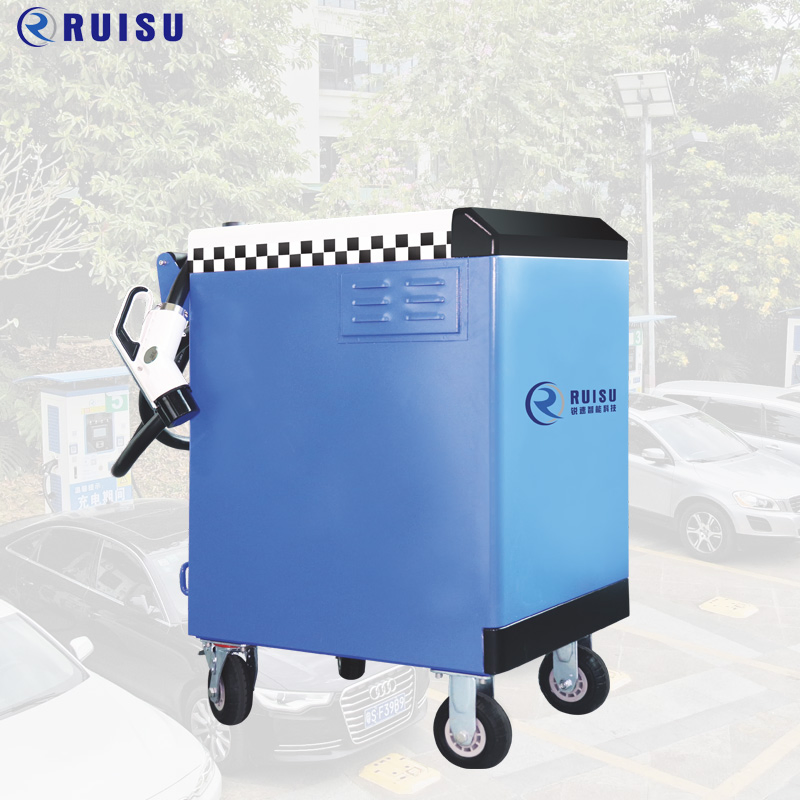

Portable Mobile Level 3 DC Fast EV Charger with Chademo and CCS

1 / 5

Portable Mobile Level 3 DC Fast EV Charger with Chademo and CCS

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

⚡

Basic Specifications

Model NO.

RSDC-DC20KW

AC Input Frequency

50 /60 Hz

Power Factor

≥0.98

Efficiency

≥95%

Output Voltage Range

200-750V

Output Power

20kw

Max. Output Current

60A

Charging Interface

Cable Length

3m (Chademo/CCS/GBT)

Noise

<65 dB

Type

Fast EV Charging Station

Certification

CCC, CE, ISO, TUV, RoHS

Warranty

24 Months

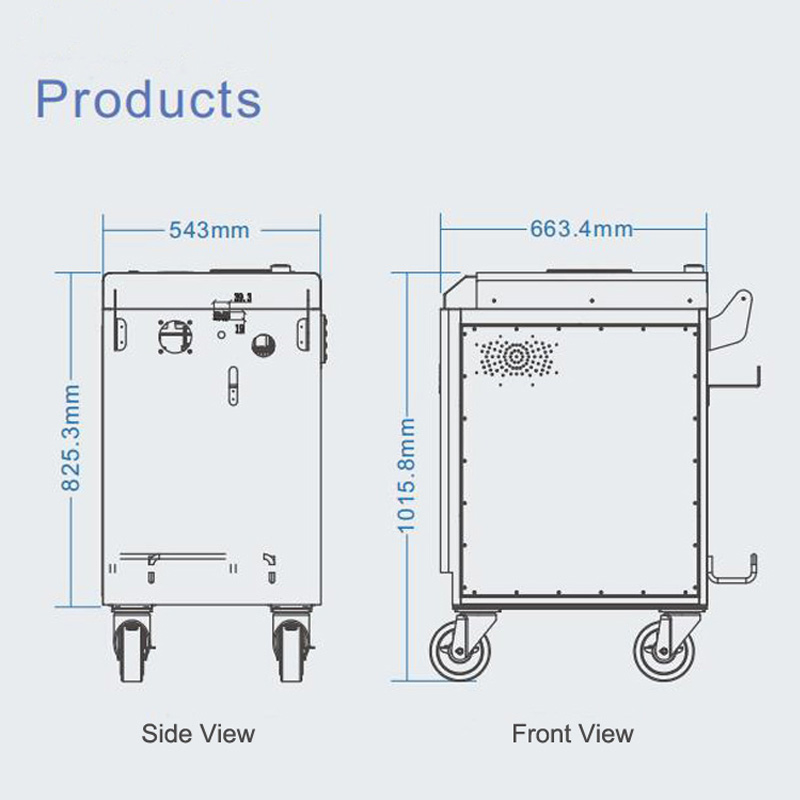

Dimensions (mm)

1015.8*663.4*543 mm

📋

Product Description

Product Type	DC-DC20KW Mobile DC EV Charger
Display Mode	7" Color Touch Screen
Input Voltage Range	260-475V
Current Harmonics (THDI)	≤5%
Protective Function	Lightning protection, over-load, short-circuit, over-temperature, electric leakage, emergency stop.
Protection Grade	Outdoor IP54
Shell Material	Sheet metal shell
Average Relative Humidity	5%~95%

🖼️

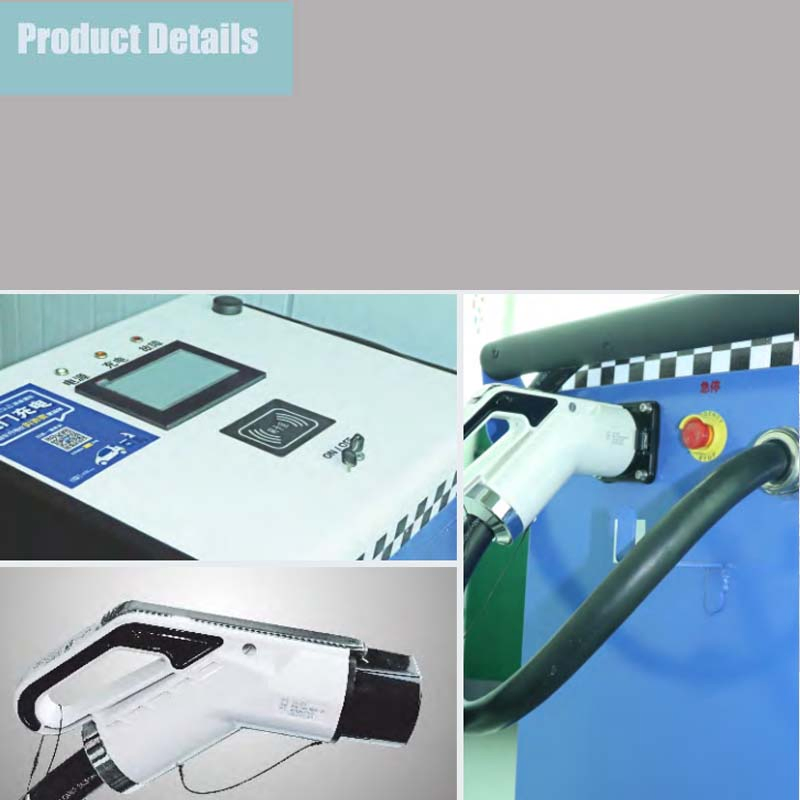

Product Gallery

❓

Frequently Asked Questions

1. What is the maximum output power of this mobile charger? The RSDC-DC20KW provides a maximum output power of 20KW with an output current of up to 60A.

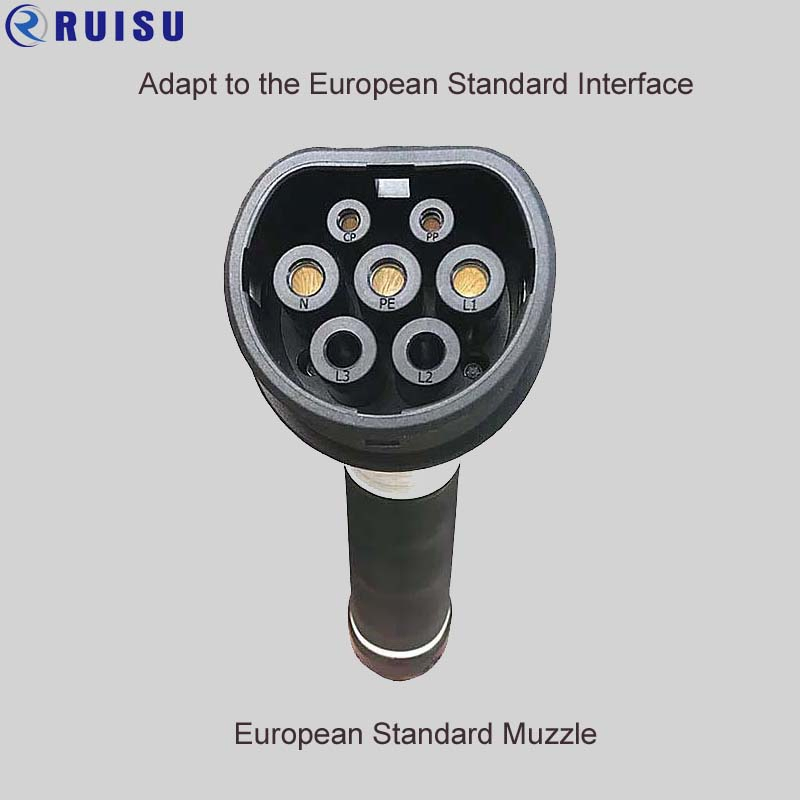

2. Which charging standards are supported? It supports CHAdeMO, CCS, and GB/T interfaces, with customizable 3m cable lengths available for each standard.

3. Can this charger be used outdoors? Yes, it features an IP54 protection grade and a durable sheet metal shell, making it suitable for outdoor applications.

4. What is the efficiency and power factor of the unit? The charger operates with high efficiency (≥95%) and a power factor of ≥0.98.

5. What safety protections are built-in? It includes lightning protection, over-load, short-circuit, over-temperature, electric leakage, and an emergency stop function.

6. How long is the warranty period? The product comes with a comprehensive 24-month warranty for peace of mind.
