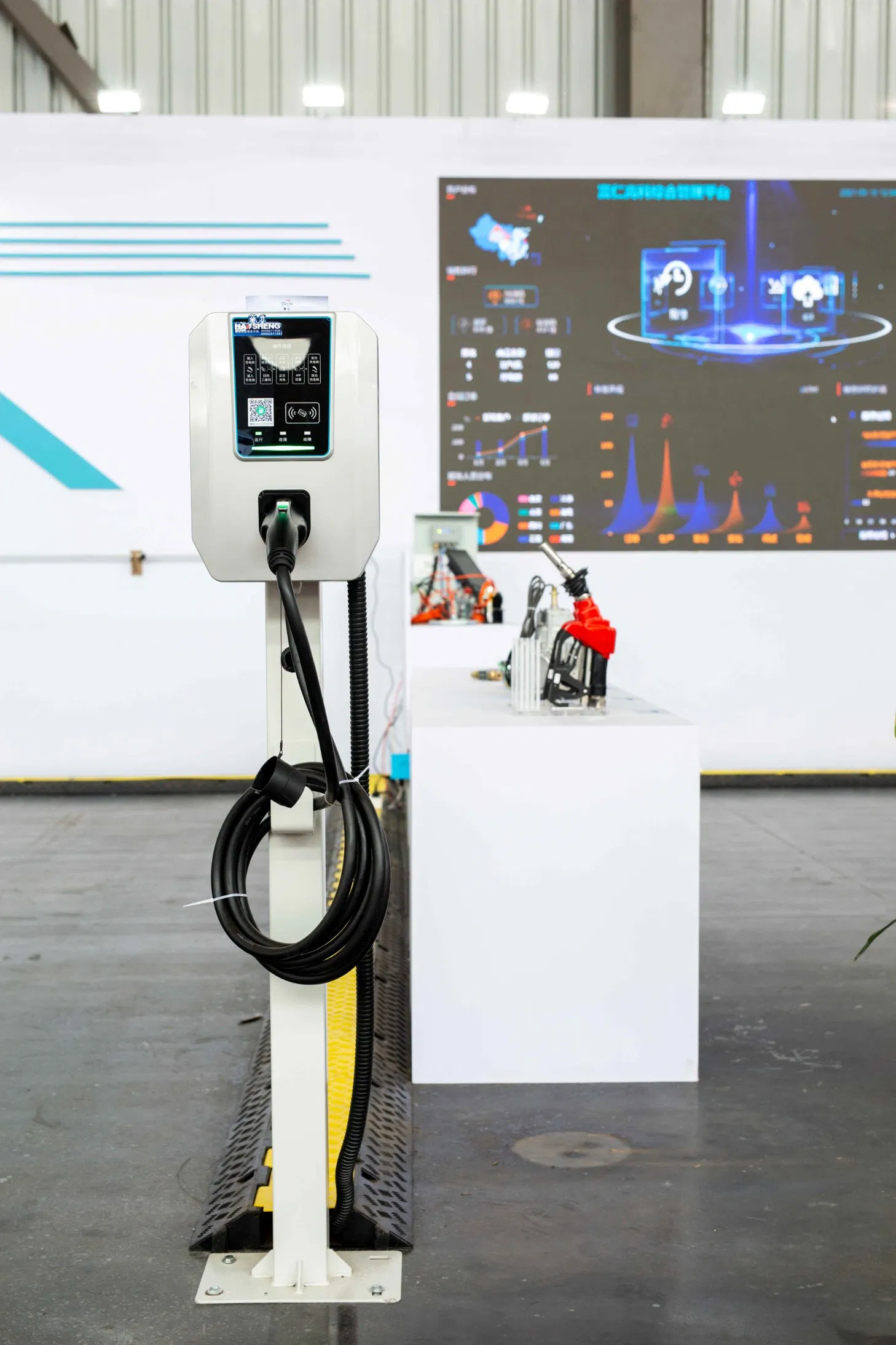

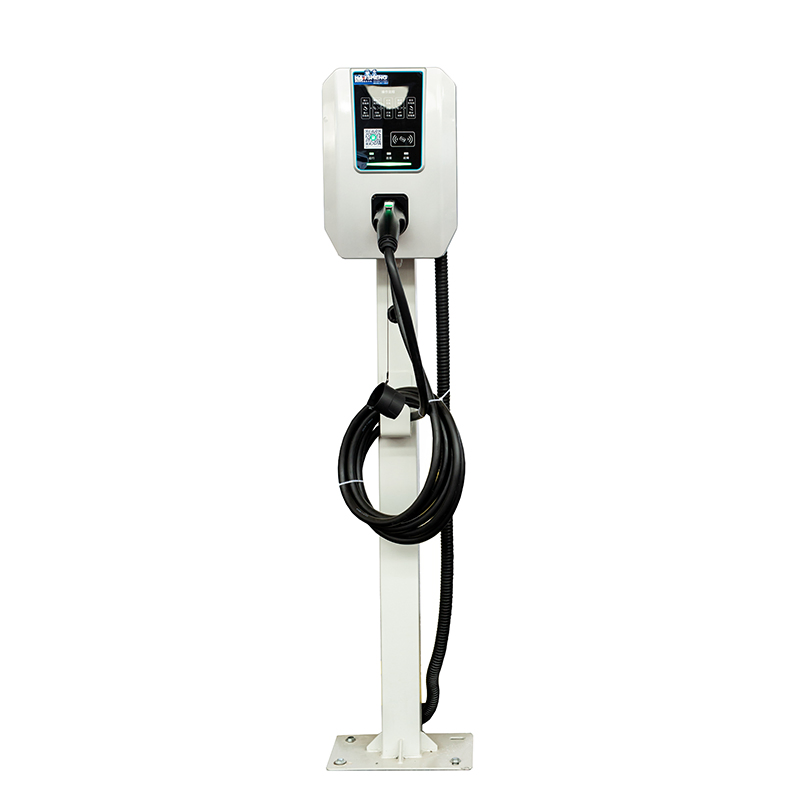

Haosheng Brand EV Charger Plug, Portable Charger EV, DC EV Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🟦 Basic Information

Model NO.

32A

Type

Fast EV Charging Station

Standard

EU / US

Certification

CE, ISO

Warranty

24 Months

Max Input Current

32A

Frequency

45-65 Hz

Cable Length

User Interface

3.5 Inch LCD

Authentication

RFID ISO / IEC 14443 A/B

📦 Packaging & Delivery

Package Size

28.00cm * 20.00cm * 155.00cm

Gross Weight

25.000kg

Transport Package

Wooden Box

📝 Product Description

🔹

Ideal choice for residential, community, and commercial AC EV charging.

🔹

Wired/wireless connection for back office management.

🔹

Optional RFID card reader for user identification and management.

🔹

Input: 200Vac~240Vac / 400Vac±15%

🔹

IP54 rated for indoor and outdoor applications.

🔹

Firmware updates through remote connection.

🔹

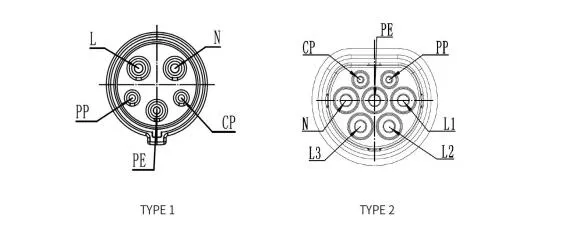

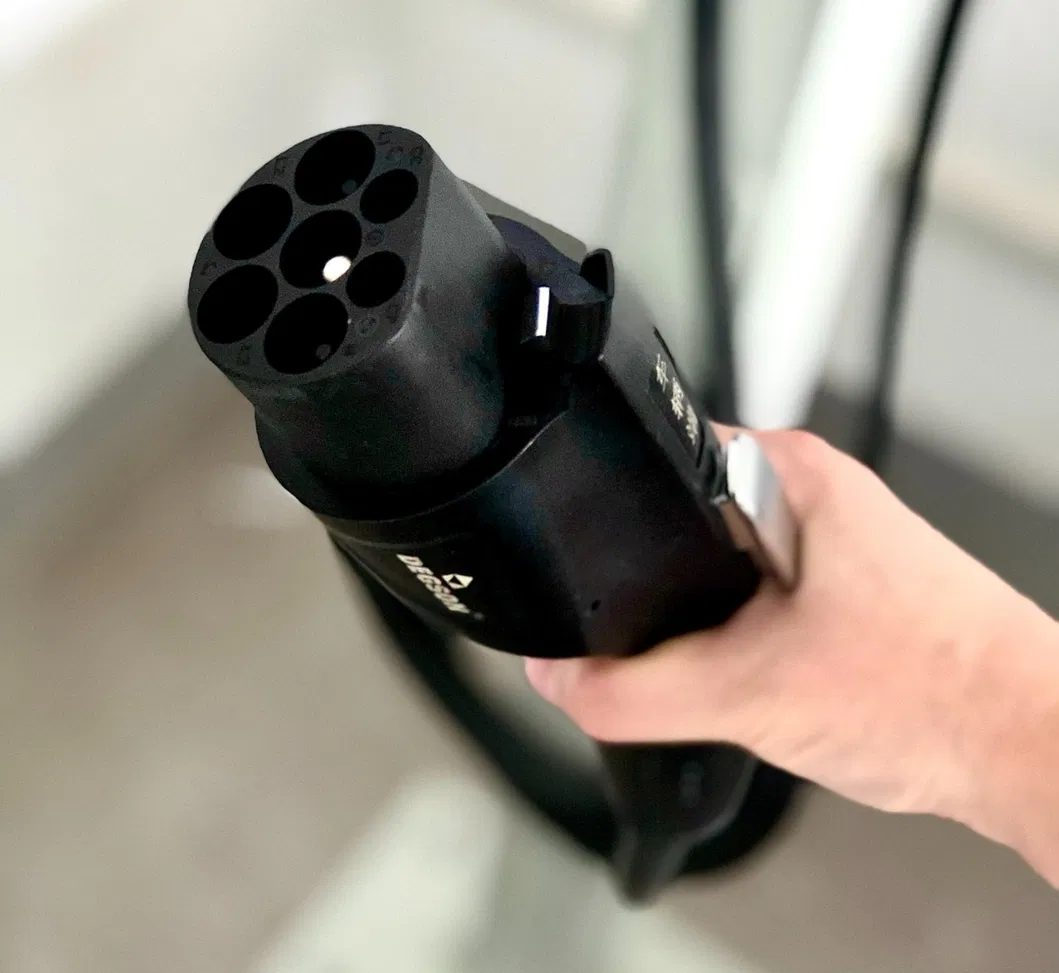

Charging interface: SAE J1772 (Type 1) / IEC 62196-2 (Type 2).

⚙️ Technical Specifications

Category	Parameters	EU Standard	US Standard
AC Input	Input Rating	230Vac Single / 400Vac Three Phase	208-240Vac Single / 400Vac Three Phase
	Max. Current	32A
	Frequency	45 - 65 Hz
	Residual Current Device	Type A/B Optional	CCID 20
Interface	Display	3.5 inch LCD
Interface	User Authentication	RFID ISO/IEC 14443A/B
Communication	External	Ethernet / 4G / 3G
Communication	Internal	OCPP 1.6 JSON
Environment	Operating Temp	-30°C to 50°C
	IP Level	IP 54	NEMA TYPE 3R
	Cooling	Natural Cooling
Mechanical	Dimensions (mm)	160280398.5 (Wall) / 181.52801515 (Floor)
Mechanical	Weight	≤14kg (Wall) / ≤20kg (Floor)

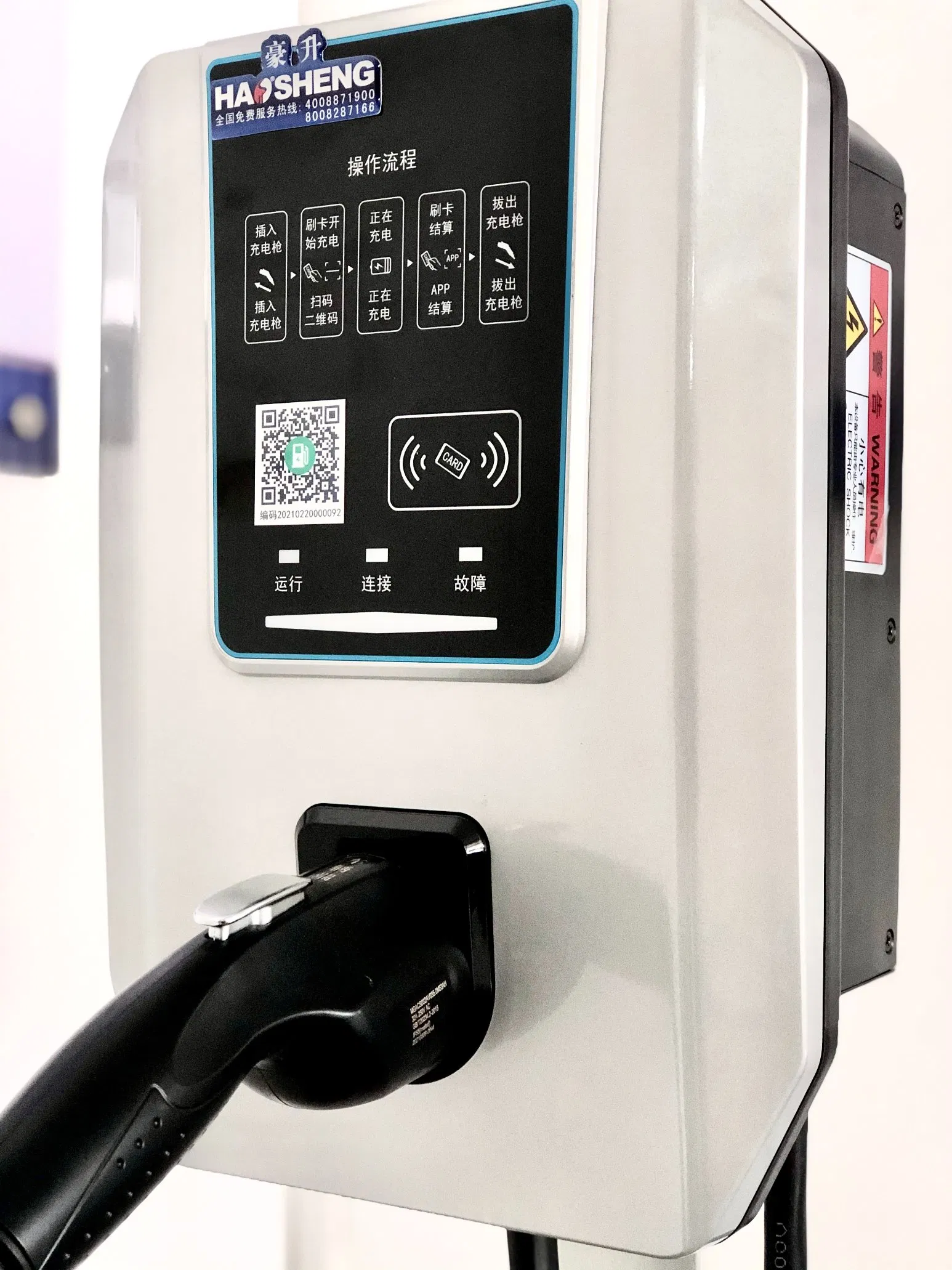

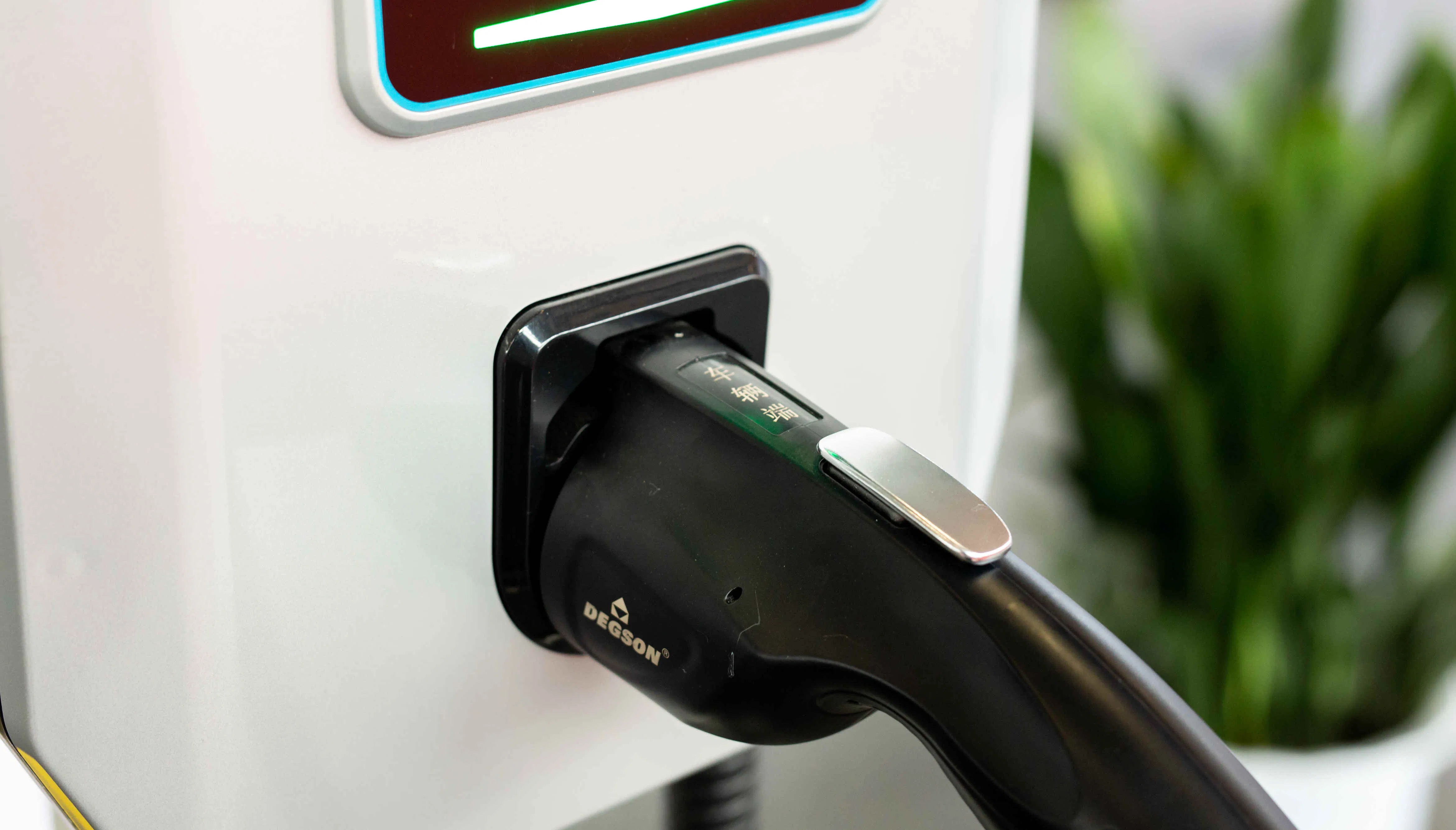

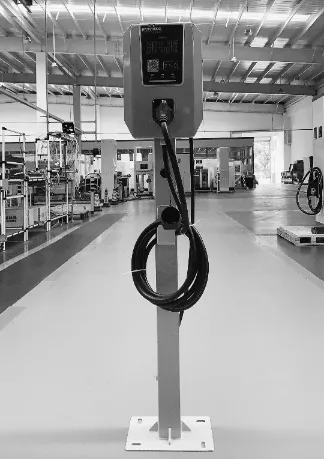

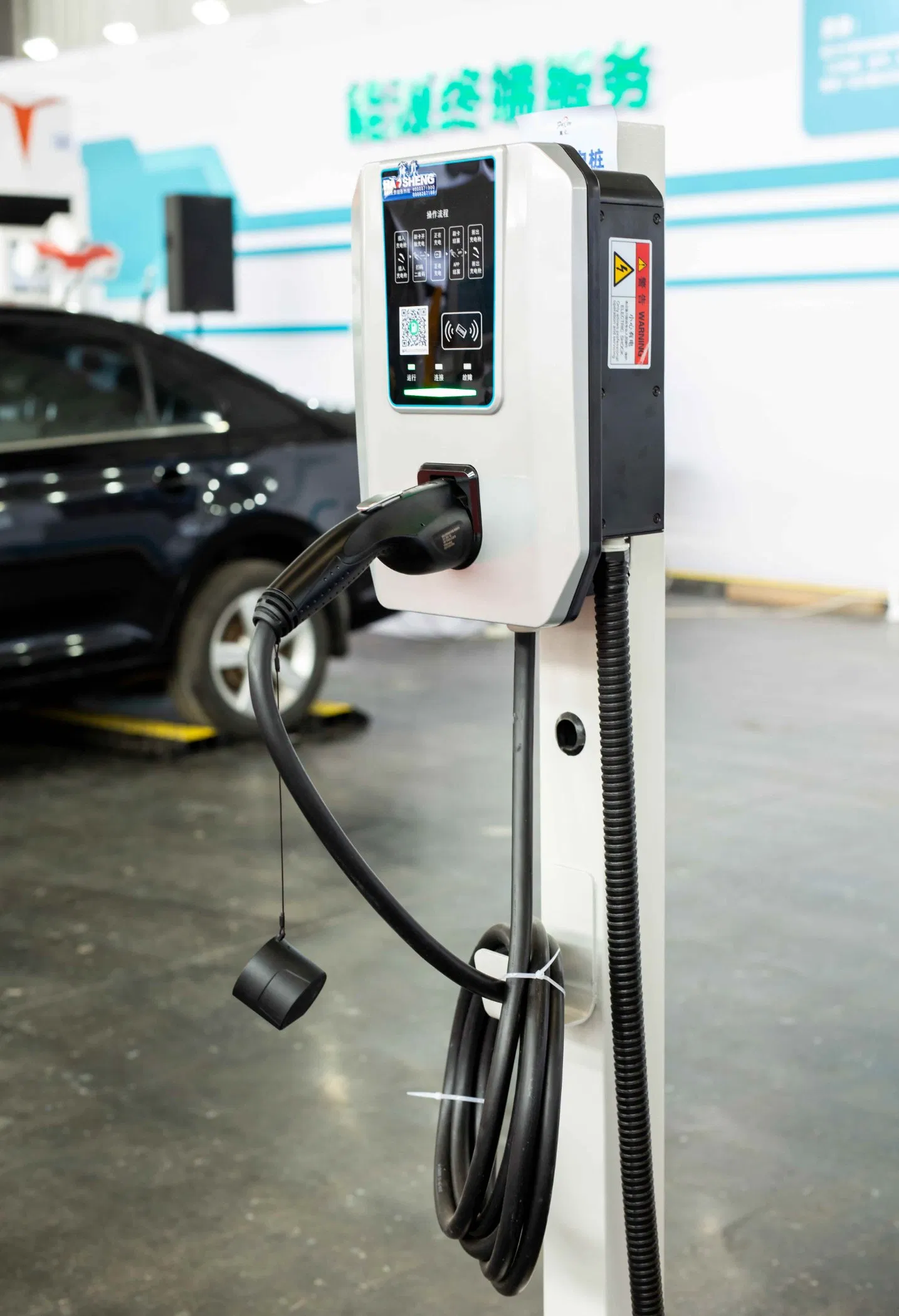

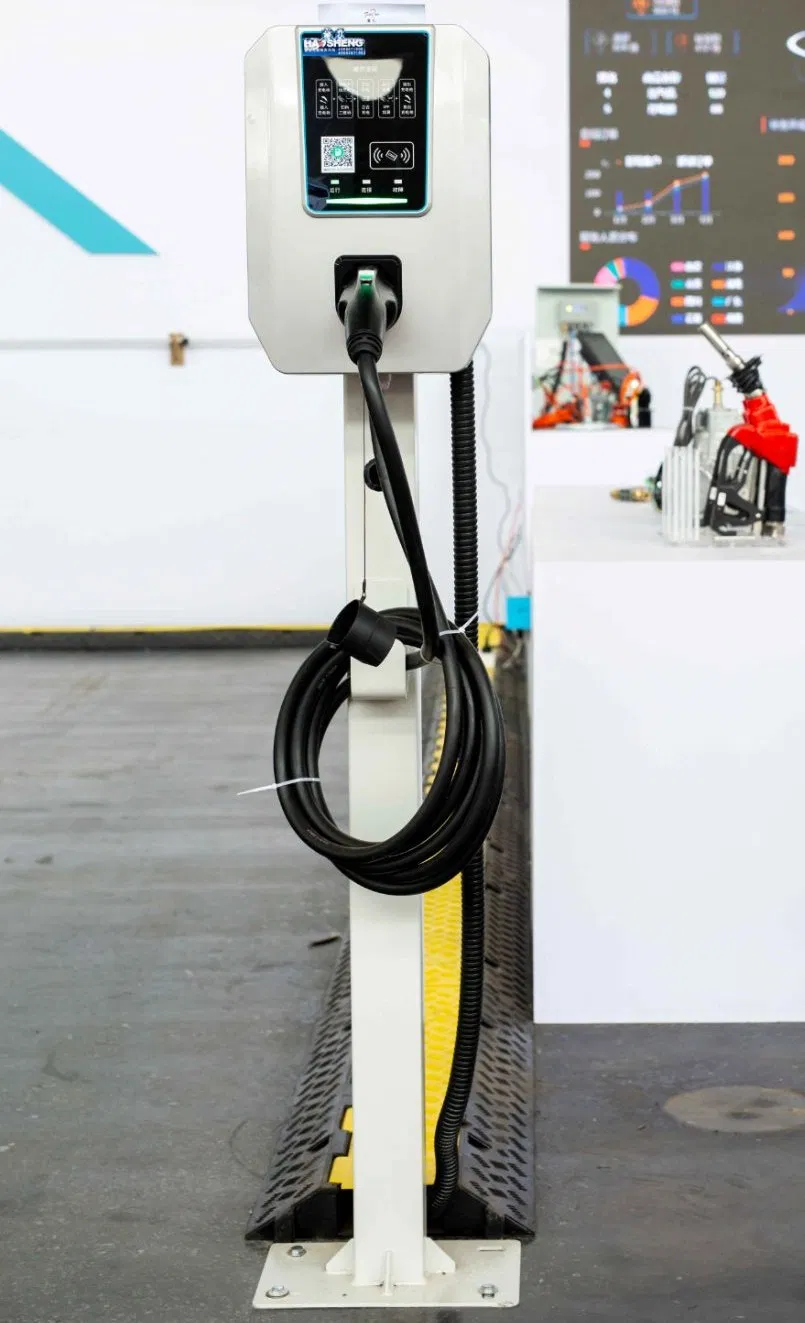

📷 Detailed Visuals

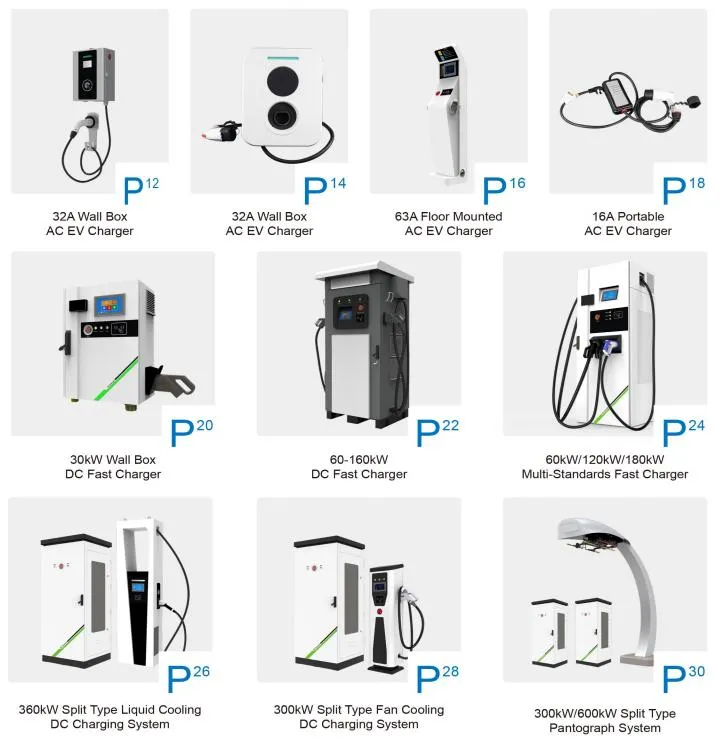

🔄 Models & Compatibility

❓ Frequently Asked Questions

What charging standards does this EV station support?

The station is highly versatile, supporting both EU standards (IEC 62196-2 Type 2) and US standards (SAE J1772 Type 1).

Is the charging station suitable for outdoor installation?

Yes, it is IP54 rated (EU) and NEMA Type 3R rated (US), making it durable for both indoor and outdoor environments.

How are users authenticated for charging?

The system uses RFID technology (ISO/IEC 14443 A/B) for secure user identification and management.

What is the warranty period for this product?

We provide a 24-month warranty and online technology guidance for all our EV charging stations.

Can the firmware be updated?

Yes, the station supports remote firmware updates via its network connection (Ethernet, 3G, or 4G).

What information is shown on the display?

The 3.5-inch LCD screen provides real-time data on current charging status, voltage, and energy consumption.
