Is Our EV Charging Solution Suitable for Both Residential and Commercial Use?

Basic Information

Model NO.

ZD05

Certification

FCC, CE, RoHS, ISO

Usage

Electric Vehicle

Interface

Type 1 Type 2 Gbt Nasc

Input Voltage

100V~240V

Connector Type

CCS2

Start Mode

APP Control, RFID Card, Plug and Charge

IP Grade

IP65

IK Level

IK10

Charge Method

Quick Charge

Adjust Current

8-10-13-16-32A

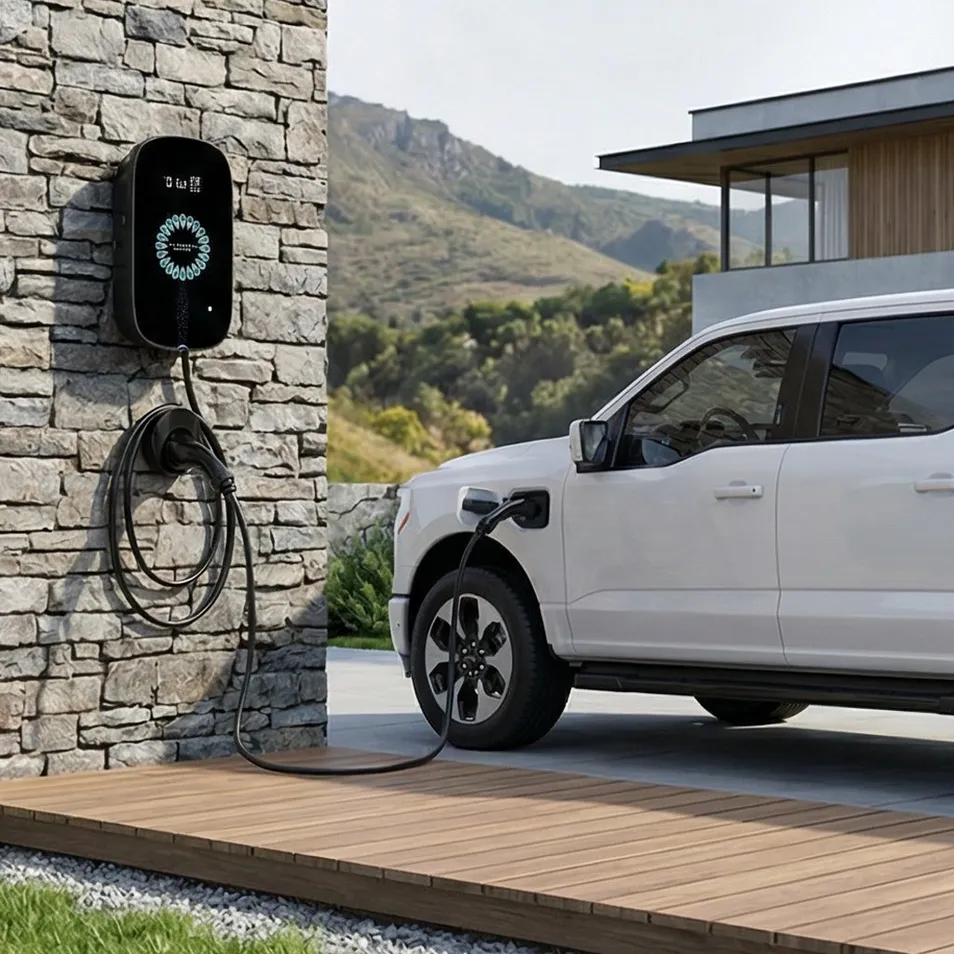

Installation

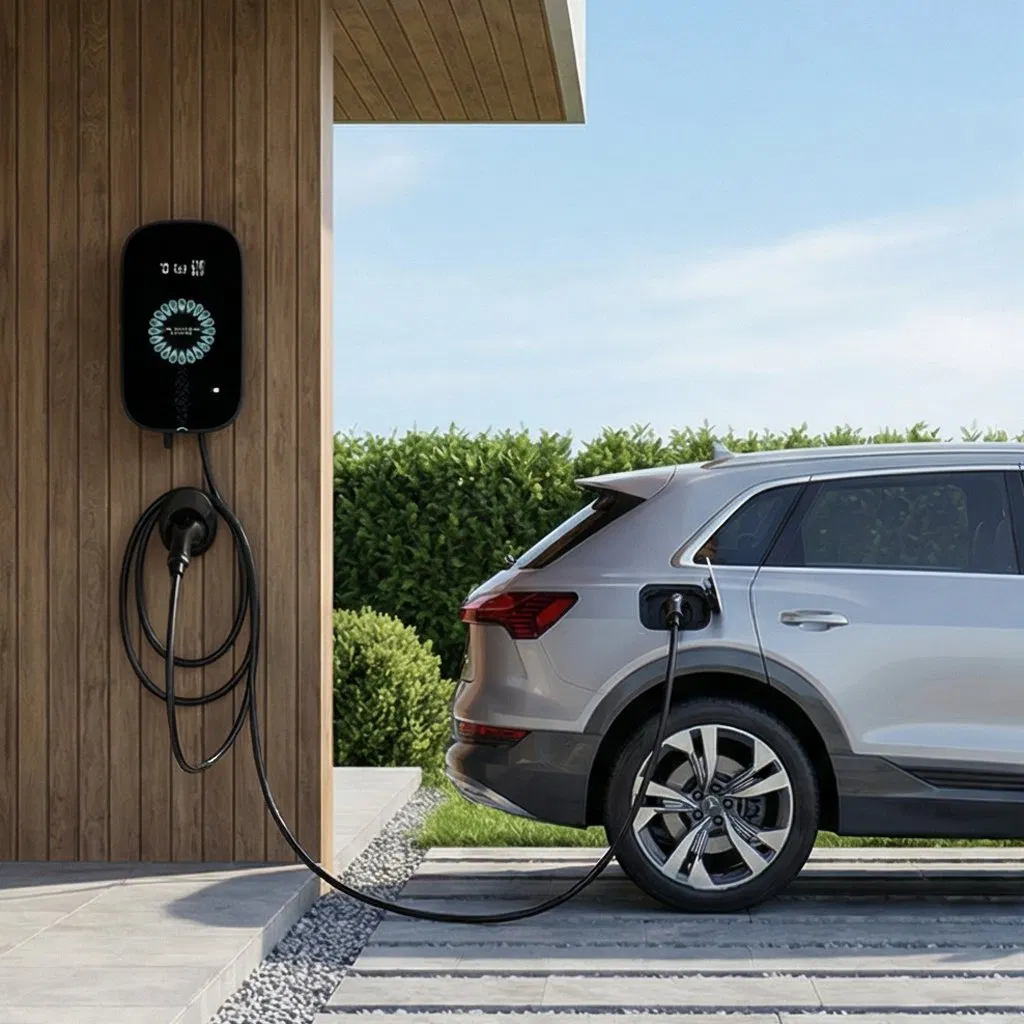

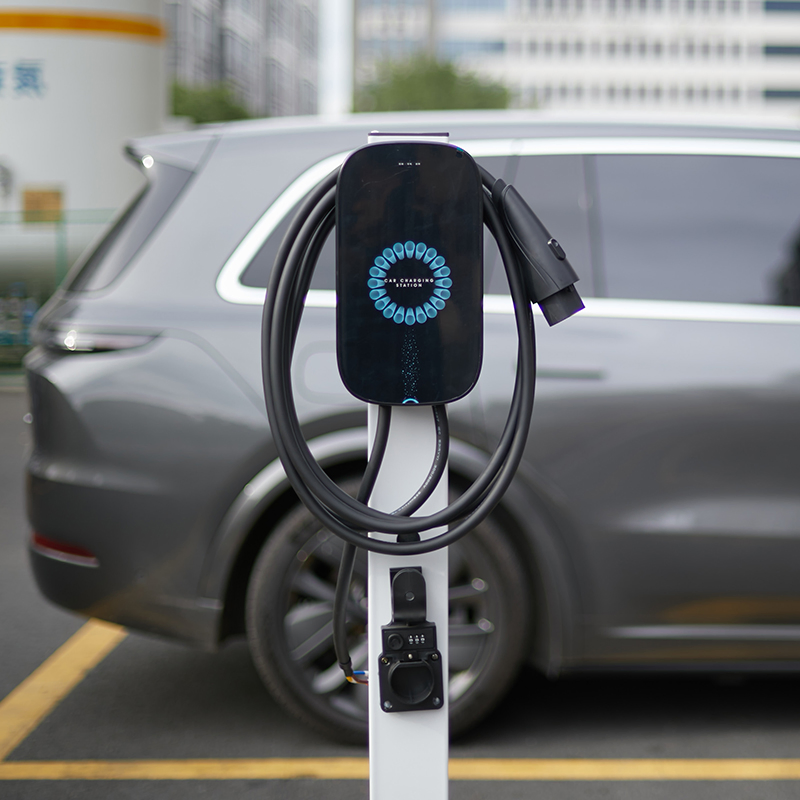

Wall Mounted / Floor Standing

Product Description

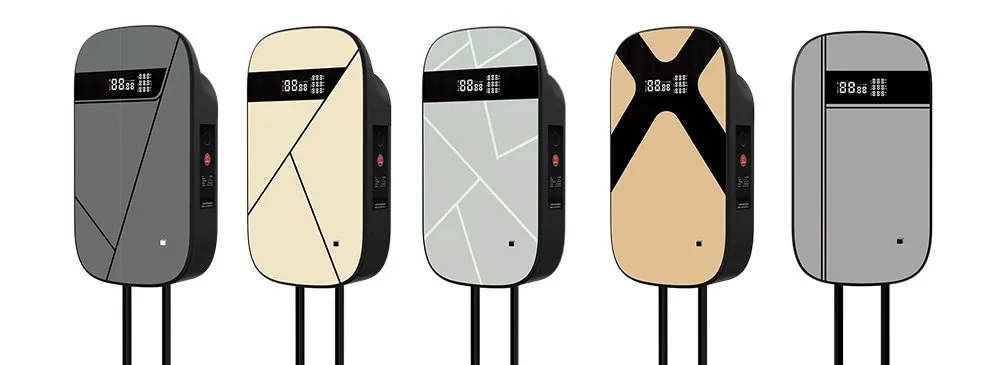

Professional EV Charging Solutions: Capable of producing TYPE 1/TYPE 2/GBT/NACS AC charging stations. Supports customization for logos, packaging, patterns, and molds. Compatible with global socket standards (German/American NEMA/UK/AU/SA/Brazil/CEE).

Suitable for all electric cars with Type 1 / Type 2 / GBT / NACS plugs.
RCD Protection: 30mA AC + 6mA DC Detection for maximum safety.
IP65 & IK10 Protection against water, dust, and heavy impacts.

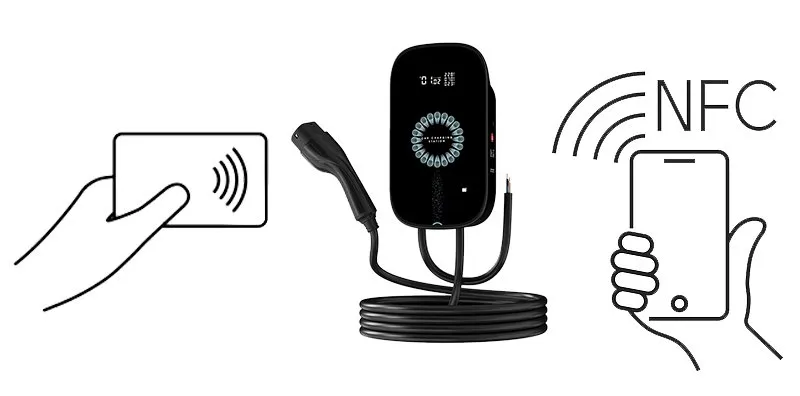

Smart Connectivity: Controlled by RFID Card, Bluetooth, WiFi, and Ethernet.
Dynamic Load Balancing (DLB) for active load management.

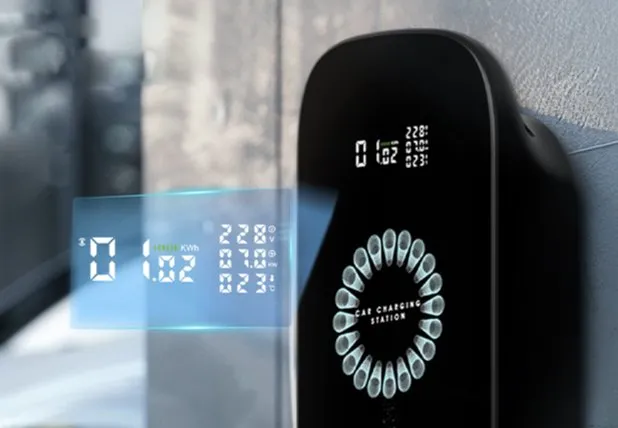

LED Screen displays power consumption, voltage, current, and temperature.

Technical Specifications

Electrical Specification
Rated Voltage	100V/240V AC ± 10%
Rated Power (Type 2/GBT)	7kW / 11kW / 22kW
Rated Power (Type 1/NACS)	7.2kW / 9.6kW / 11kW
Input Frequency	47~63Hz
Charging Interface	IEC 62196-2, SAE J1772, GB/T 18487, NACS
RCD Safety	Type A 30mA AC + 6mA DC
Protection Rating	IP65 / IK10
Environment Temp	-20ºC ~ +50ºC
Cooling	Natural Air Cooling

Packaging & Delivery

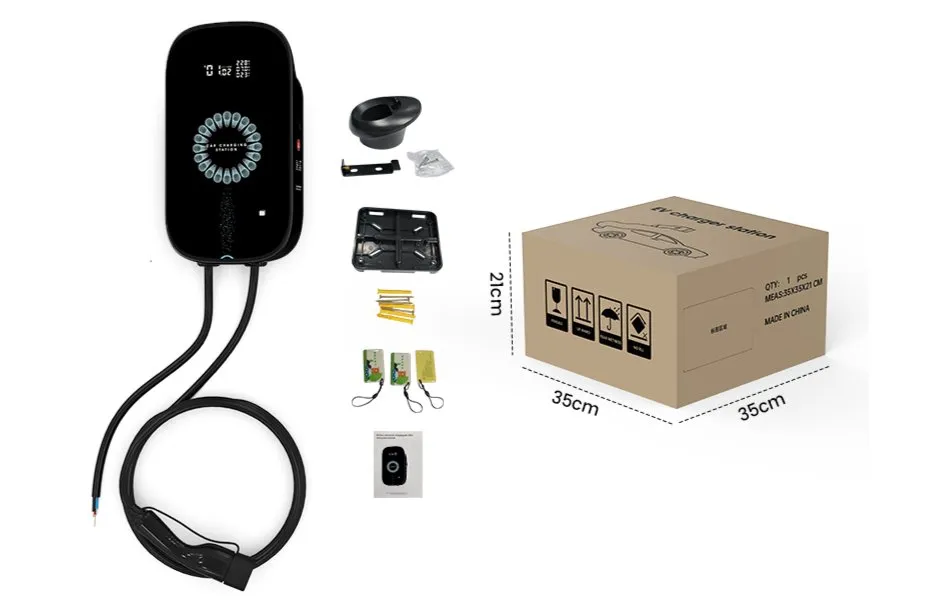

Standard Pack Contents:

1× EV charger station
1× Wall mount bracket
3× RFID cards
1× Instruction manual

OEM Services:

Custom logo & packaging
Custom cable length & material
Specific socket and plug types

Frequently Asked Questions

Q1: Is the ZD05 charger compatible with my electric vehicle?

Yes, the ZD05 is compatible with all major EV standards including Type 1, Type 2, GBT, and NACS (Tesla).

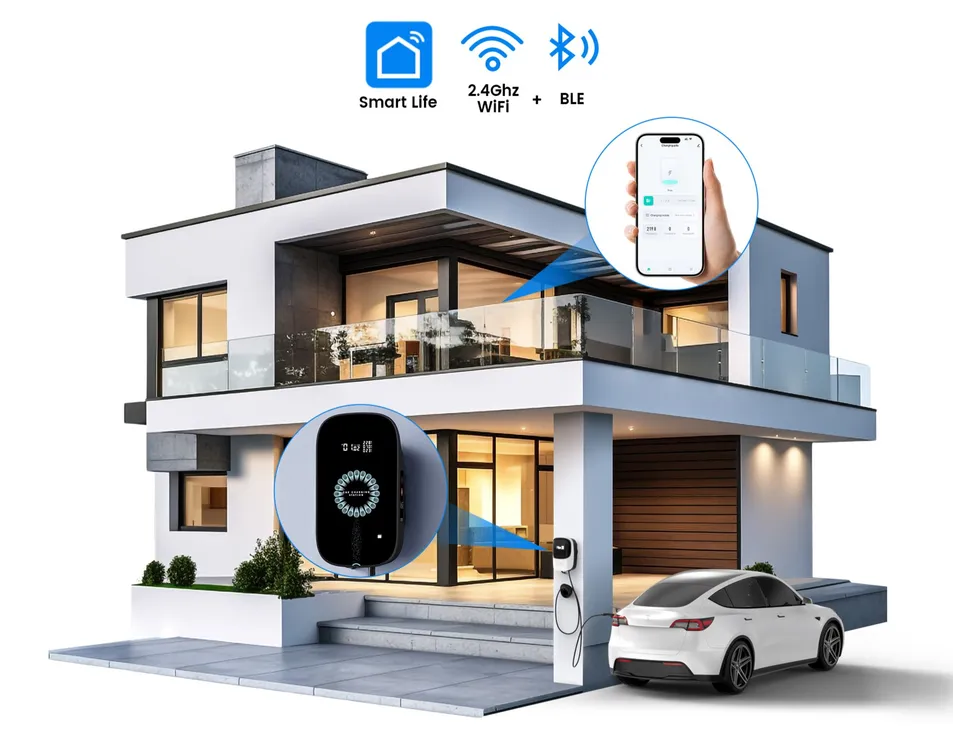

Q2: Can I control the charging process remotely?

Absolutely. Through the smart app (WiFi/Bluetooth connection), you can schedule charging, adjust power, and monitor status in real-time.

Q3: What safety protections are built into the device?

The charger features IP65 waterproof rating, IK10 impact resistance, and RCD protection (30mA AC + 6mA DC) to ensure safe operation in all conditions.

Q4: Do you offer OEM or ODM customization?

Yes, we provide full OEM/ODM services including logo embroidery, private label packaging, and custom cable or socket configurations.

Q5: What is the warranty period for this EV charger?

We provide a standard 24-month (2 years) warranty against manufacturing defects and offer professional technical support.

Q6: Can the charging current be adjusted?

Yes, the current can be manually adjusted between 8A, 10A, 13A, 16A, and 32A to suit your electrical environment.
