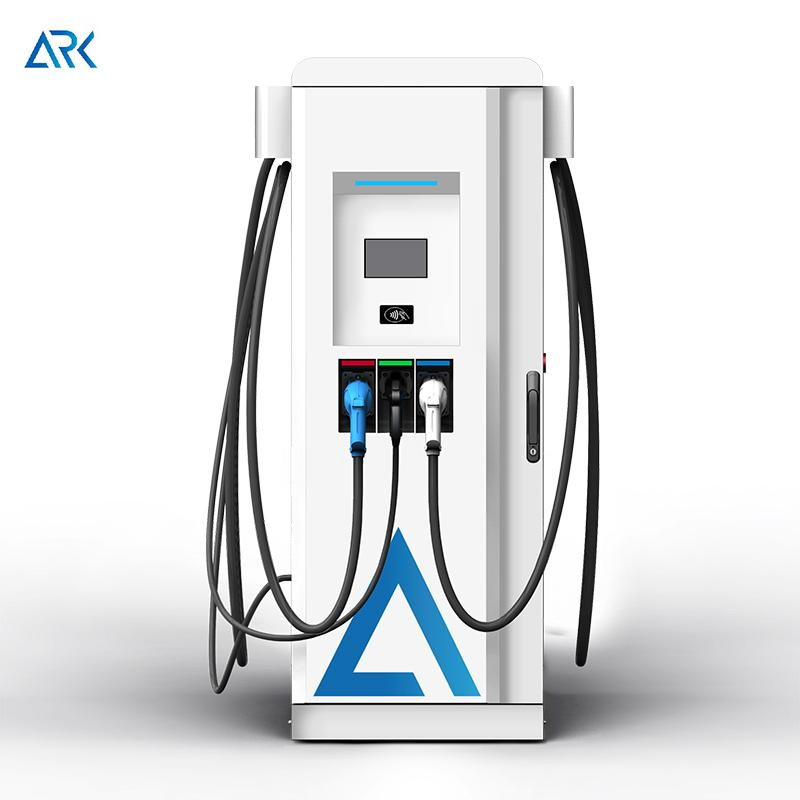

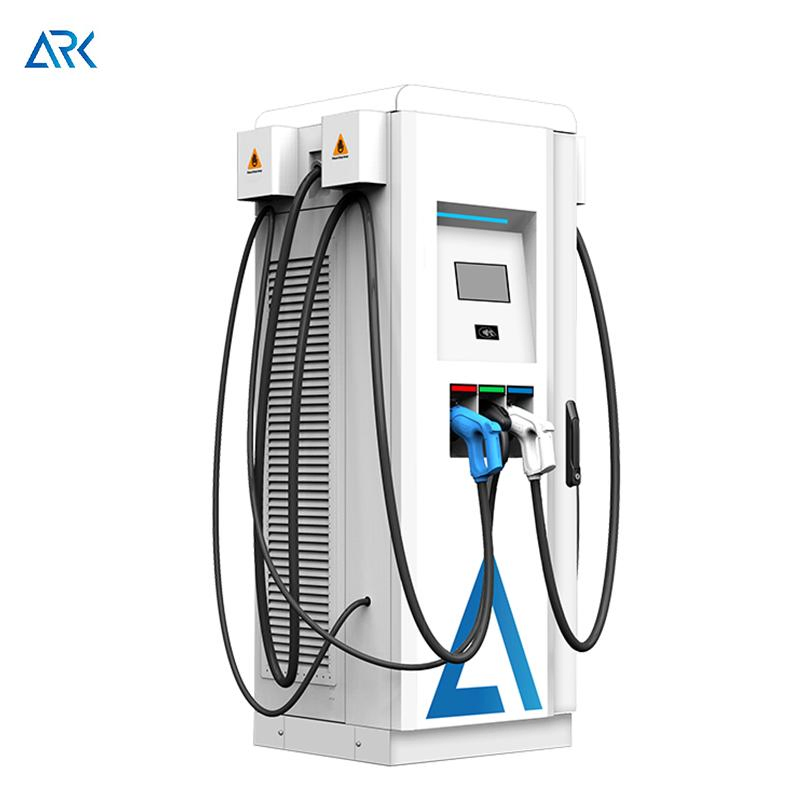

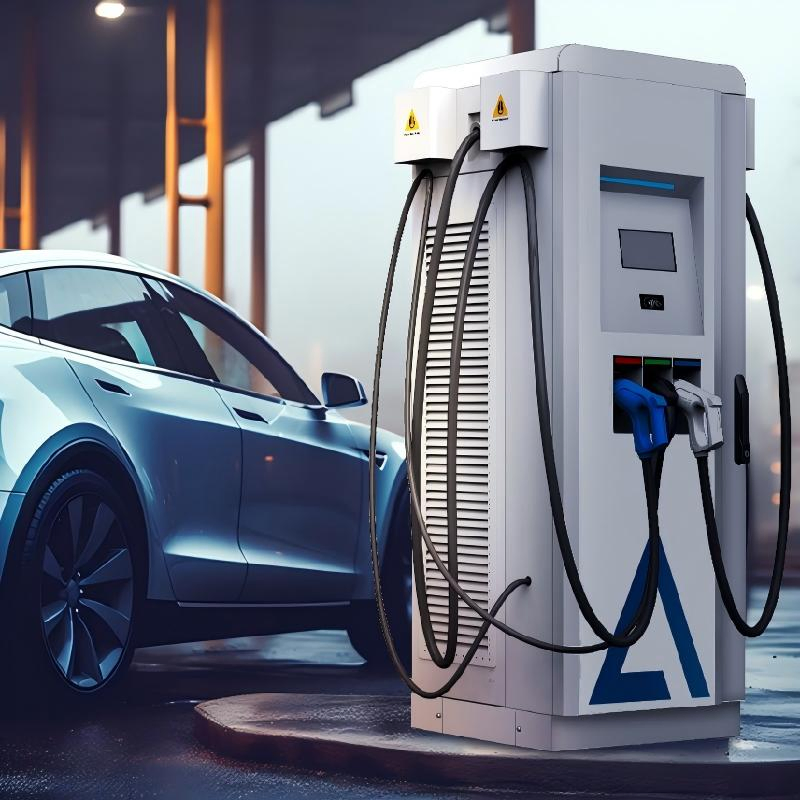

Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
1 / 5
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use
Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use

Electric Car Chargeing Station CCS Chademo EV Charging Pile for Public Use

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.
EF160
Charging Interfaces
One Pile with Multiple Charges
Location
Public Use
Installation
Wall / Floor Mounted
Charge Method
Quick Charge
Function
RFID Supported
OCPP
Ocpp1.6j Supported
Screen
7 Inch Touch Screen
Protection Grade
IP54, IK10
Charging Type
Mode 4
Standard
IEC 61851-1, IEC 61851-23, Chademo
Certification
CE, TUV

Product Description

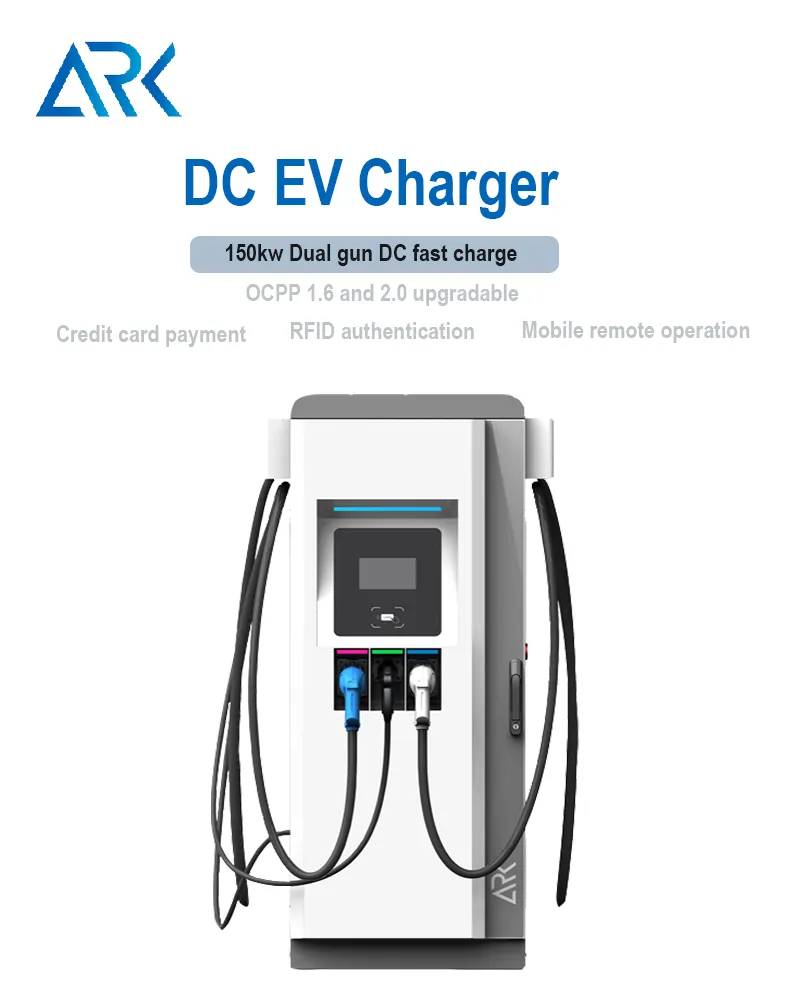

EV Charging Station

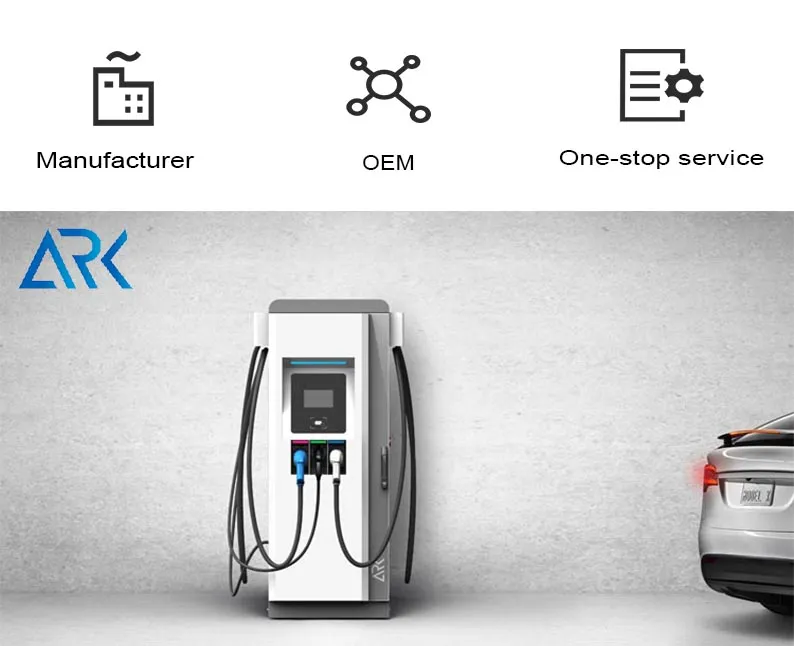

EV Charging Pile

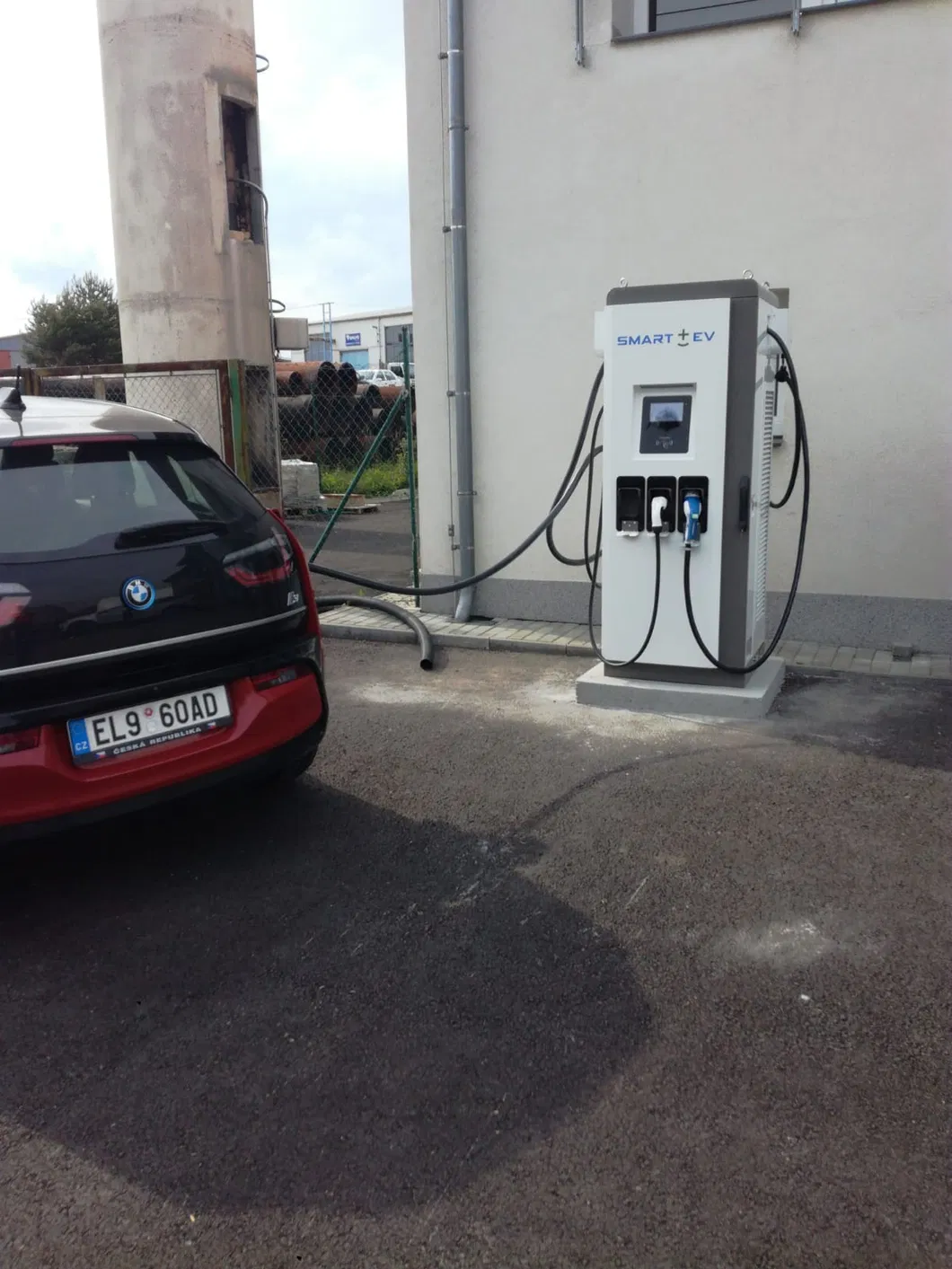

Public Use Charger

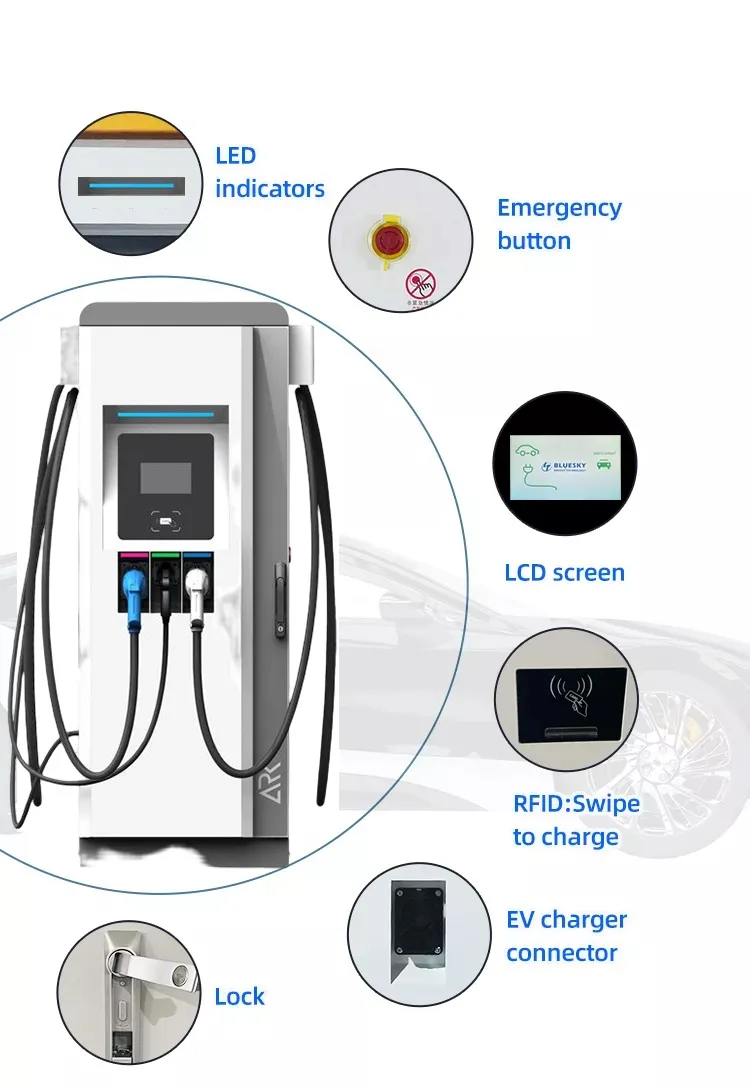

CCS Chademo Station

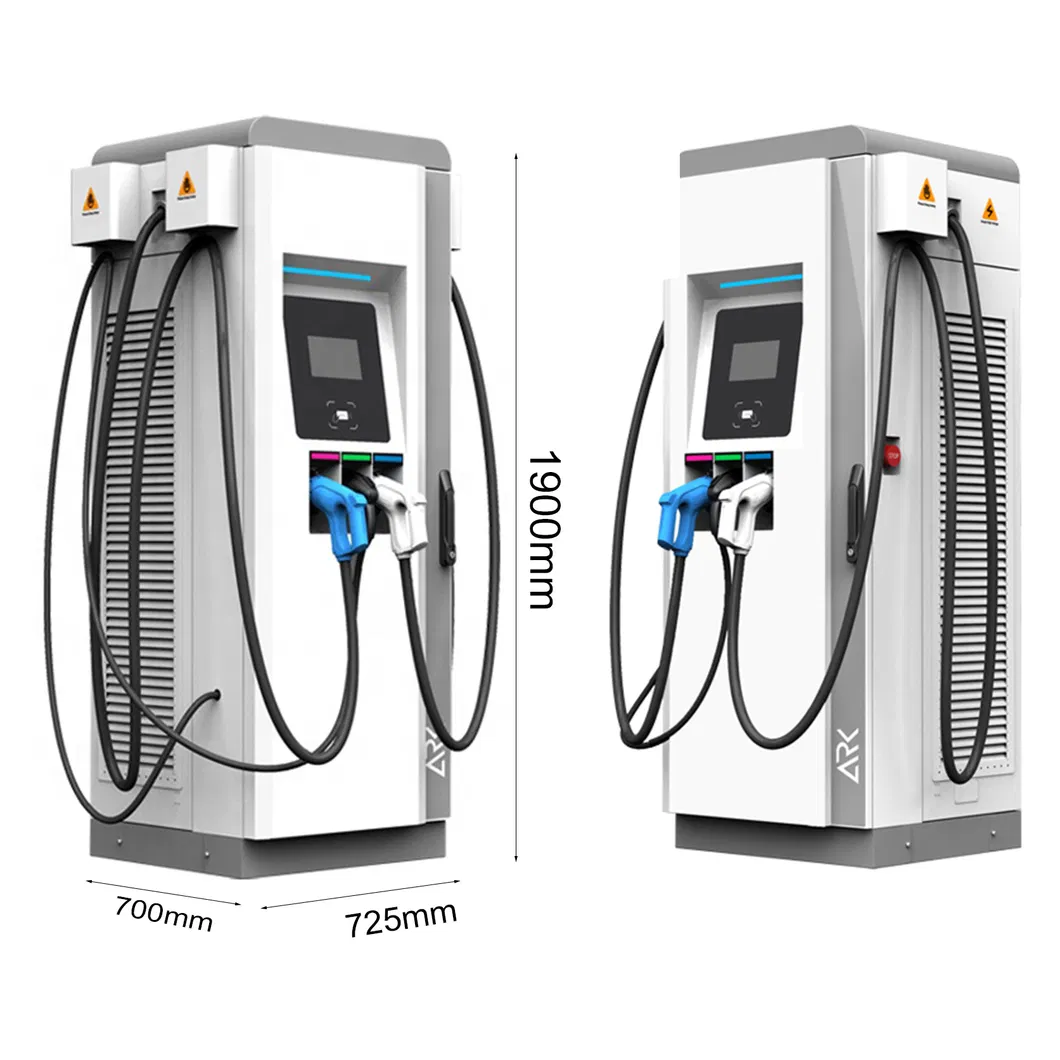

Fast Charging Detail

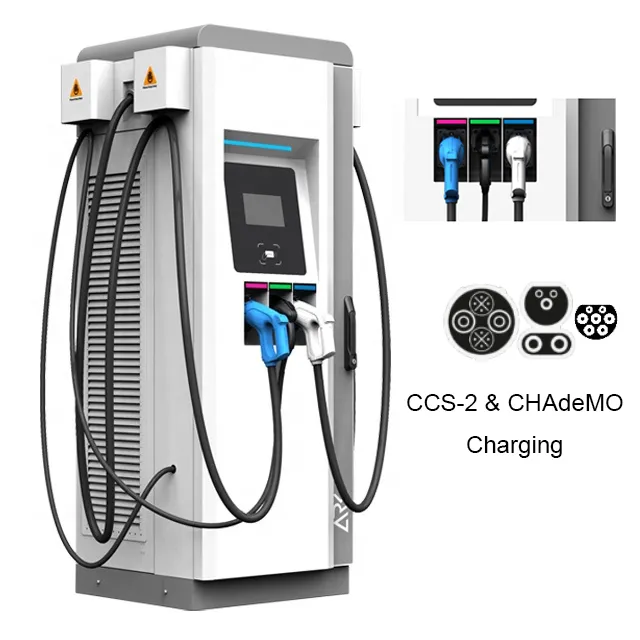

Charging Interface

Technical Parameters

Specification Model EF160 CJ082
Rated Power 60kW or 120KW DC
Electrical Input Voltage 400Vac 3-phase (50Hz/60Hz)
Output Voltage CCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
Output Current CCS: 0 - 200A, CHAdeMO: 0 - 125A
Efficiency / PF ≥ 94% / ≥ 0.99
Structure Housing Material Metal Case
Dimension 1900 x 725 x 700mm
Cable Length 5m (3 Outlets)
Environment Working Temp -30°C to +55°C
Protection IP54 / Fan Cooling
Safety Design Over/Under voltage, Overload, Leakage, Grounding, Over temp, Surge protection

Packaging & Shipping

Production Line

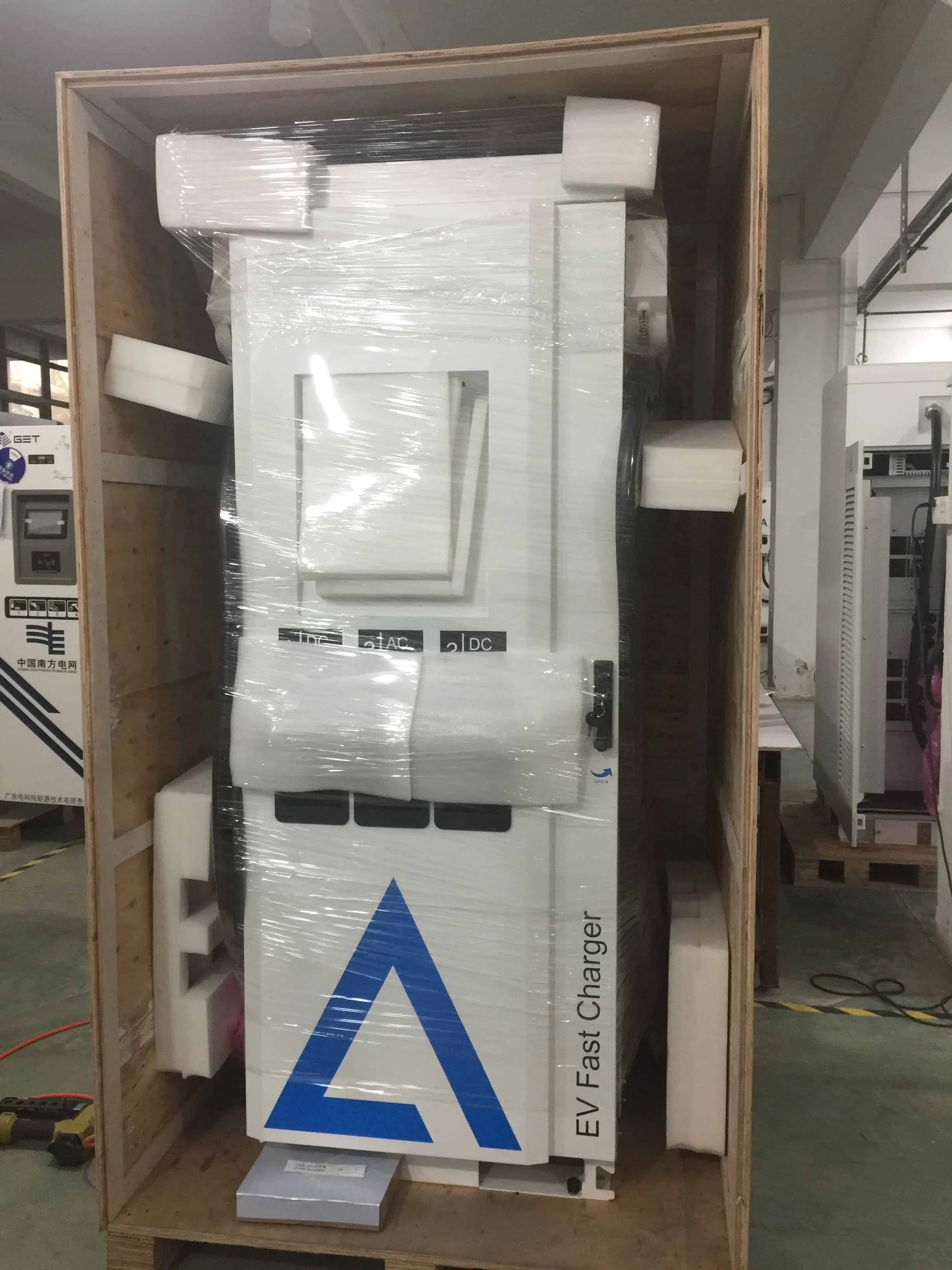

Package 1

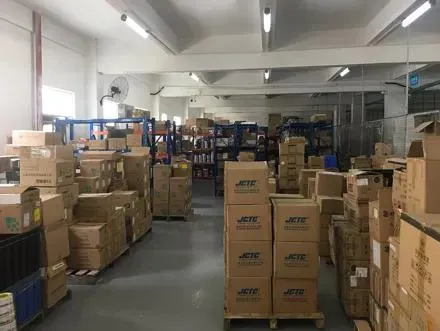

Package 2
Package 3

Frequently Asked Questions

Why choose us as your preferred EV Charger supplier?
Our professional technical team and long-term industry vision ensure a leading position. We offer standardized designs, smart back-end services, and products that have passed rigorous laboratory tests. We are among the few capable of achieving both CE and UL certifications.
Do you have experience in overseas charging station projects?
Yes, we are pioneers in international projects, cooperating with power companies in the UK for PV integration, US operators for freeway DC fast charging networks, and major automakers for fleet charging services.
What are the main advantages of your products?
We provide telecom-level design supporting multiple standards (CCS-1/2, CHAdeMO, GB/T). Our products feature wider voltage ranges, superior temperature adaptation, higher protection grades, and advanced modular designs for fast technical support.
What are the differences between global DC fast charging standards?
There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla (Proprietary). We support the integration of these standards to meet global requirements.
Does higher output power always mean faster charging?
Not necessarily, as it depends on the vehicle's battery limits. However, high-power chargers support dual connectors for simultaneous charging and provide future-proofing as battery technology evolves to support higher intake.
How do you provide after-sales support?
We provide comprehensive technical training via manuals and videos to help customers master maintenance and parts replacement. For urgent situations, we can provide professional on-site technical support.
