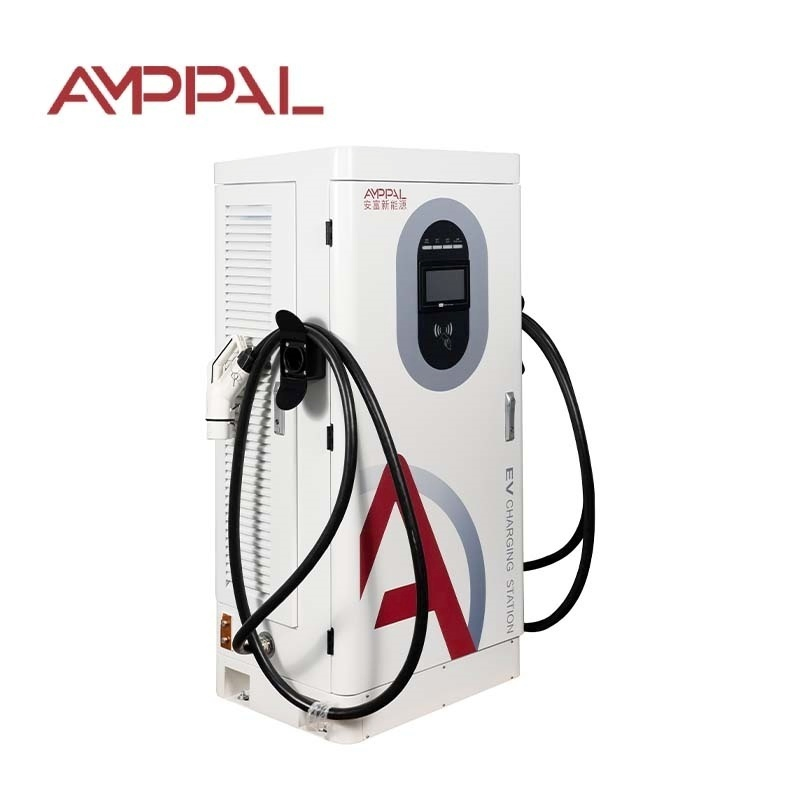

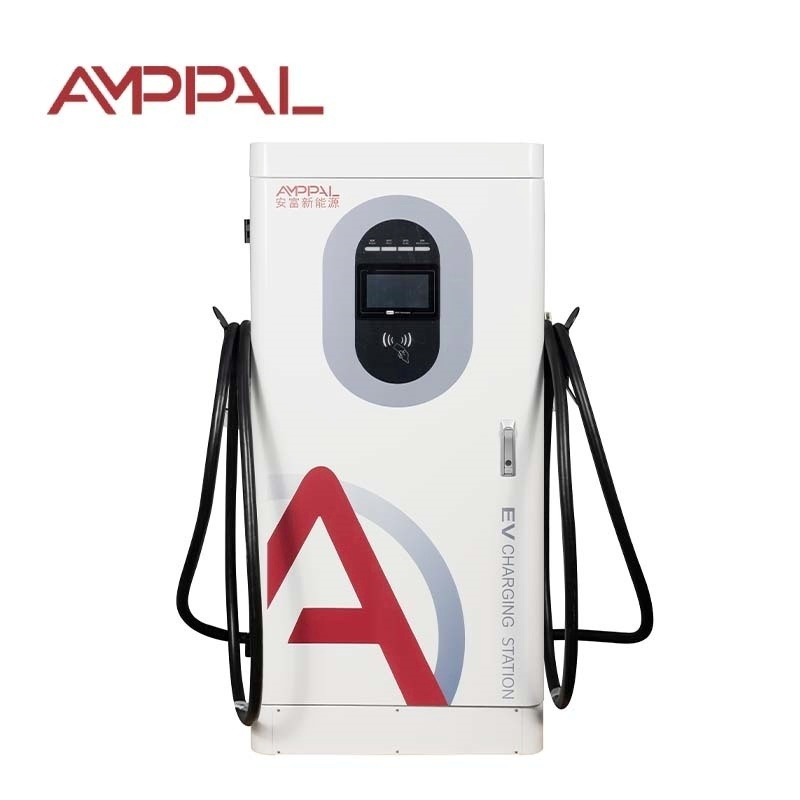

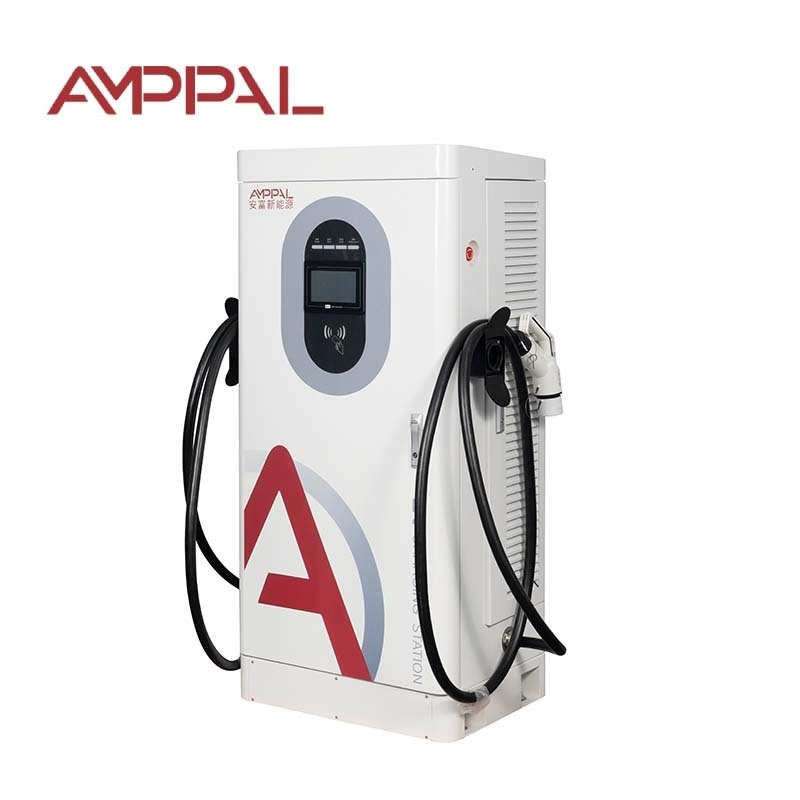

EV Charger Dual-Port 240kw Ultra-Fast Charger for Fleet Operations

Customization:	Available
Connector Type:	CCS1 CCS2 Chademo GB/T
Installation:	Floor Type

i

Overview & Basic Info

Model NO.

AF-DC-60&80&120&160&180&240kW

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Input Frequency

45~65Hz

Output Power

60-240kw

Way of Routing

Down and Down

Output Current

0-200A

User Interface

7 Inch LCD Color Display

Cable Length

5m

Interface Standard

CCS

Equipment Size

635*423*1600(mm)

Production Capacity

1000 Set/Sets Per Month

L

Packaging & Delivery

Package Size

175.00cm * 85.00cm * 70.00cm

Gross Weight

330.000kg

Transport Package

Wooden Case

P

Products Description

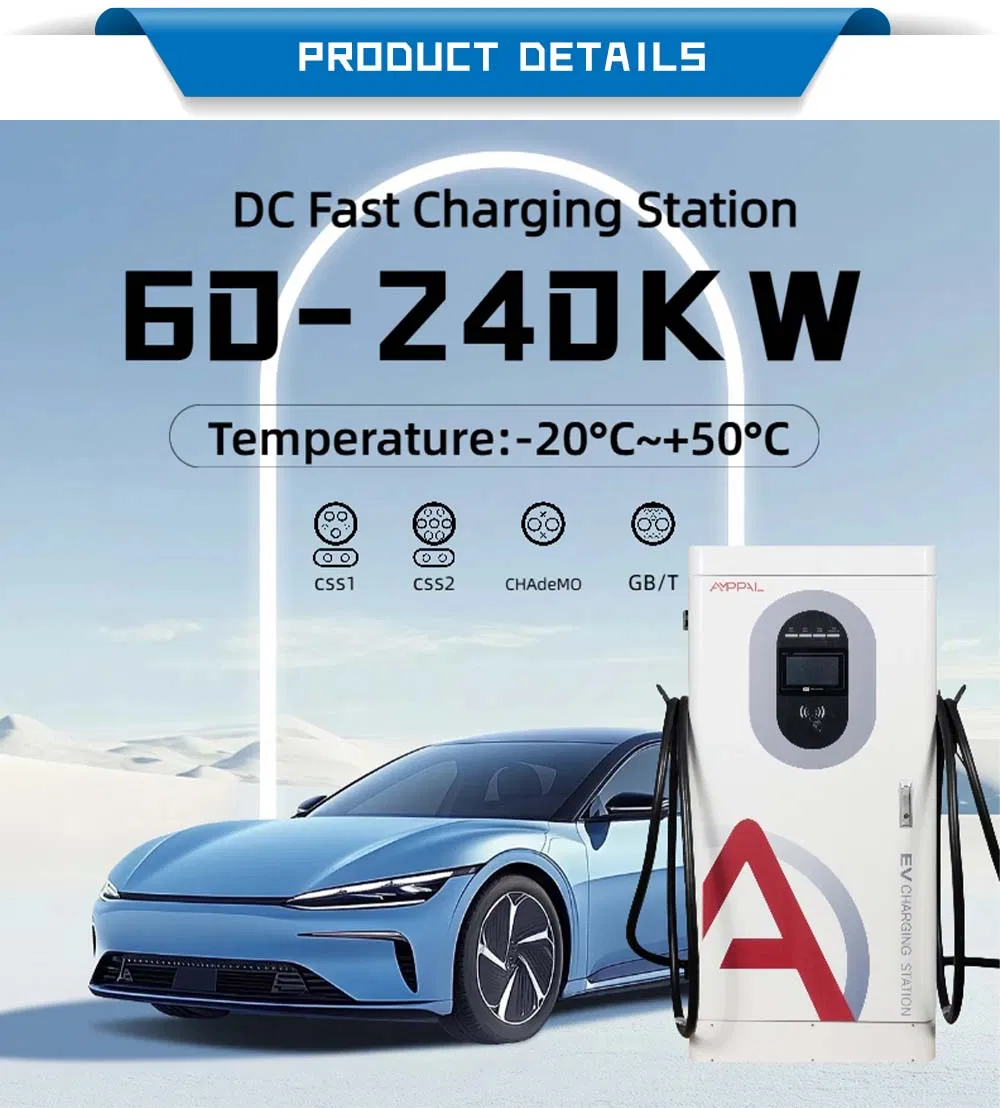

EV Charger Dual-Port 240kw Ultra-Fast Charger

Parameter	Details
Product Name	DC Charging station
Rated power	60/80/120/160KW	180/240KW
Installation method	Vertical	-
Feeding method	Bottom in and out
Equipment size	1620750560mm	1800800600mm
Input voltage	380VAC±15%
Input frequency	50+10Hz
Output voltage	200-(750)1000VDC
Output current	0-200A
Accuracy	Level 1.0
Efficiency	≥95%
User Interface	7inch bright color touch screen
Charge mode	Automatic charging/fixed power/fixed amount/fixed time
Charging method	Swipe card / Scan code / Password
Networking	Ethernet / 4G
Protection level	IP54
Communication protocol	OCPP 1.6J

?

Frequently Asked Questions

QWhat are your terms of payment?

A: We accept online fast payment and T/T.

QDo you test all your chargers before shipping?

A: Yes. All major components are tested before assembly and each charger is fully tested before being shipped.

QCan I order samples and what is the lead time?

A: Yes, samples are available. Usually, it takes 7-10 days for production and 7-10 days for express delivery.

QHow long does it take to fully charge an electric car?

A: The time depends on the car's battery capacity, the OBC (on board charger) power, and the charger's power. Calculation: Battery Capacity (kWh) / Lower value of OBC or Charger Power. For example, a 40kWh battery with a 7kW OBC takes approximately 5.7 hours.

QAre you a manufacturer or a trading company?

A: We are a professional EV charger manufacturer specializing in high-power DC and AC charging solutions.

QWhat are the protection standards for this equipment?

A: This equipment features an IP54 protection level and follows executive standards IEC61851-1:2017 and IEC62196-2:2016.
