3000W Universal Charger for E-Bikes & Trikes 12V-100V Lithium Fast Charging

1 / 5

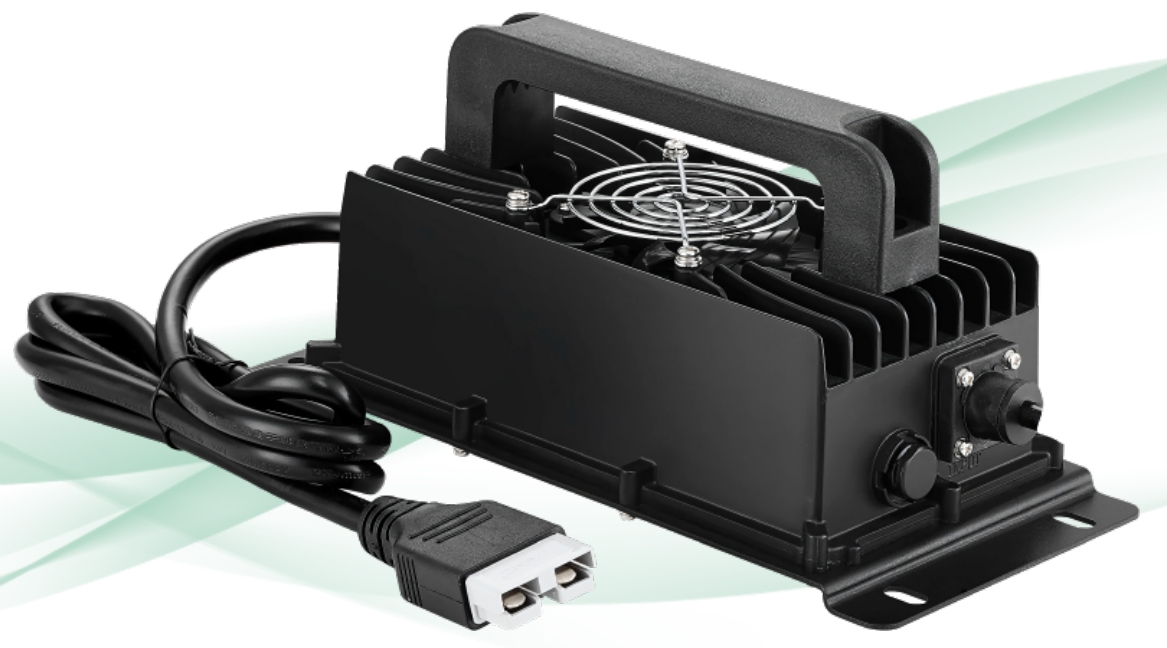

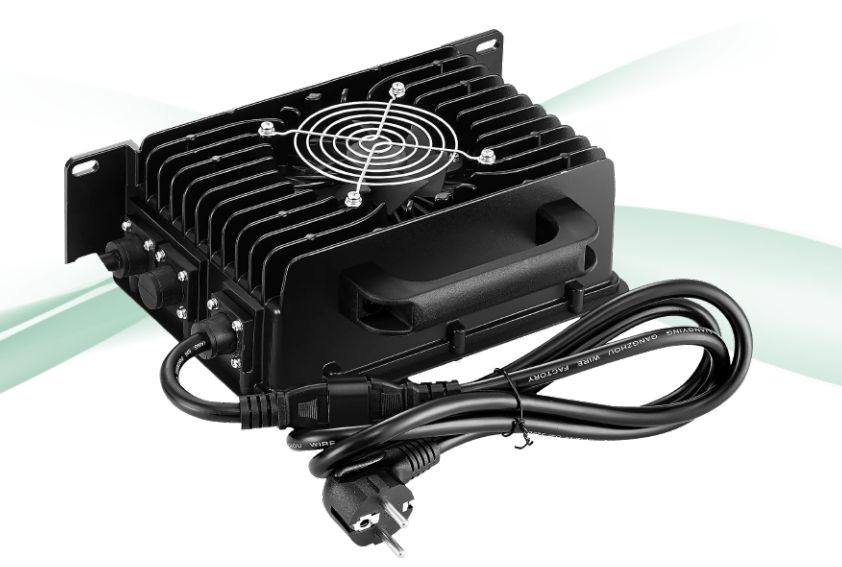

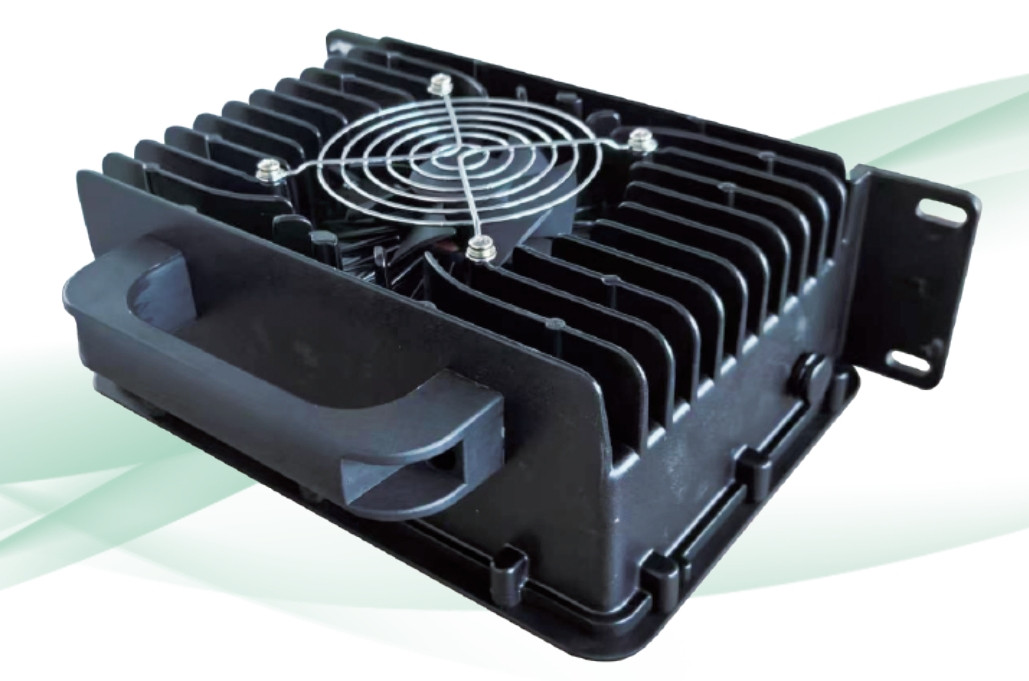

3000W Universal Charger for E-Bikes & Trikes 12V-100V Lithium Fast Charging

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.

ES-H20250804

Rechargeable

Yes

Size

Medium

Application

Electric Motorcycle

Package

Wooden Box

Specification

30*25*15cm

Trademark

OEM/ODM

Origin

China

Smart Multi-Voltage Charging Station: Compatible with AGV, Lawn Mowers, EVs & Outdoor Energy Storage CE/UL Certified

Industry-leading universal battery charger for 100+ devices: Fast-charging golf carts, forklifts, AGVs, solar systems & home backup. Heavy-duty 48V/72V compatibility, weatherproof design, and auto-shutoff safety. Certified chargers with 2-year warranty!

Key Configurations & Applications

Industrial & Logistics

Forklifts, Pallet Cars, AGVs (Automated Guided Vehicles).

Municipal & Maintenance

Floor Scrubbers, Lawn Mowers, Facility Maintenance equipment.

Transportation

Electric Motorcycles, Golf Carts, Aerocars, Airport/Mining/Convenience Cars.

Power & Efficiency

This high power charger delivers industry-leading 1400W/2000W/3000W charging outputs, slashing recharge times by 60%. Engineered for electric tricycles and e-scooters, it achieves peak efficiency (>93%) through PWM pulse modulation.

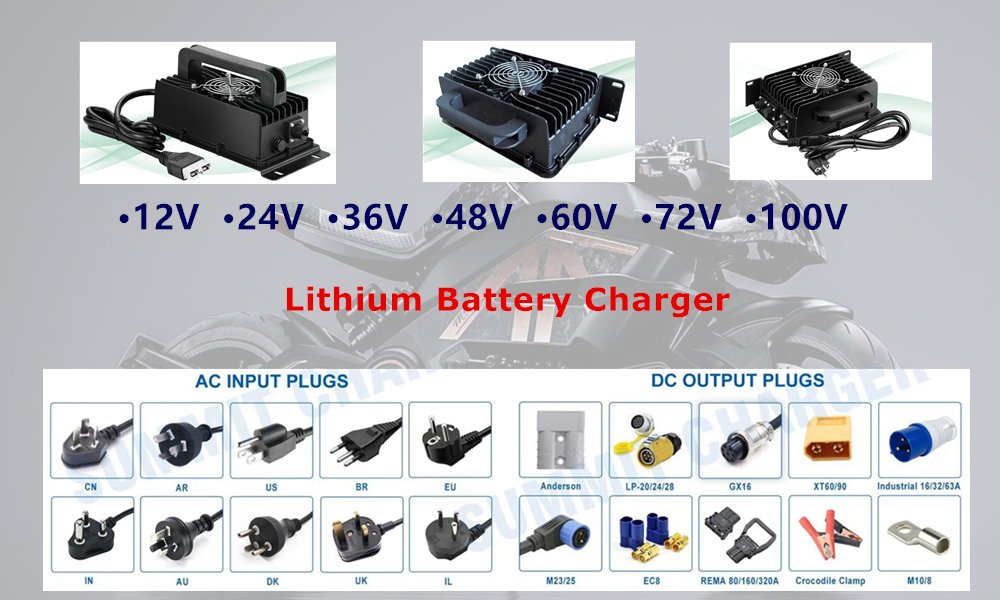

Universal Compatibility: Seamlessly adapts to 12V-100V lithium systems including LiFePO4, NMC, and polymer batteries. Design auto-detects voltage thresholds for 48V, 72V, and 100V systems.

1400W Model

2000W Model

3000W Model

Technical Specifications

Model	ES-LBC1400	ES-LBC2000	ES-LBC3000
Rated Power	1400W	2000W	3000W
Output Voltages (DC)	12V–100V	12V–100V	12V–169V
Max Output Current	Up to 25A	Up to 50A	Up to 60A
Input Voltage	Wide AC Range (90–264V), Global Compatibility
Protections	OCP, OVP, SCP, OTP, Short-Circuit, Over-Temperature

Smart Safety

Real-time temperature control (auto-power reduction at 45°C) and IP68 weatherproof housing for outdoor operation.

Precision Control

SCM Intelligent Control with Multi-Stage Charging Algorithm (Bulk, Absorption, Float) for optimal battery health.

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.

Extended Warranty: Optional coverage up to 36 months.

Training: On-site or remote operation and maintenance training available.

Certifications

Frequently Asked Questions

Q: How do these chargers extend battery lifespan?

A: Patented multi-stage algorithms (CC/CV) prevent overcharge, reduce heat stress, and terminate charging at peak voltage, extending cycle life by up to 30%.

Q: Why are these chargers considered "mission-critical reliable"?

A: They feature IP67/68 waterproof and shockproof housing, undergo 72-hour burn-in testing, and include triple-redundant protections for harsh environments.

Q: Do they support both LiFePO4 and NMC batteries?

A: Yes. The SCM-controlled platforms offer programmable profiles (e.g., 54.6V for 48V LiFePO4 or 58.8V for 52V NMC) to support various chemistries.

Q: Are these chargers compatible with global power grids?

A: Absolutely. Active PFC ensures stability across a wide AC range (90–264V), meeting IEC/EN standards for EU, NA, and ASEAN markets.

Q: How does the system handle over-temperature situations?

A: The charger includes real-time temperature monitoring and will automatically reduce power output if the unit exceeds 45°C to protect internal components.

Q: What diagnostics are available for fleet management?

A: The integrated LCD displays live metrics including voltage, current, and fault codes (such as "ZV" for cell imbalance) for proactive maintenance.
