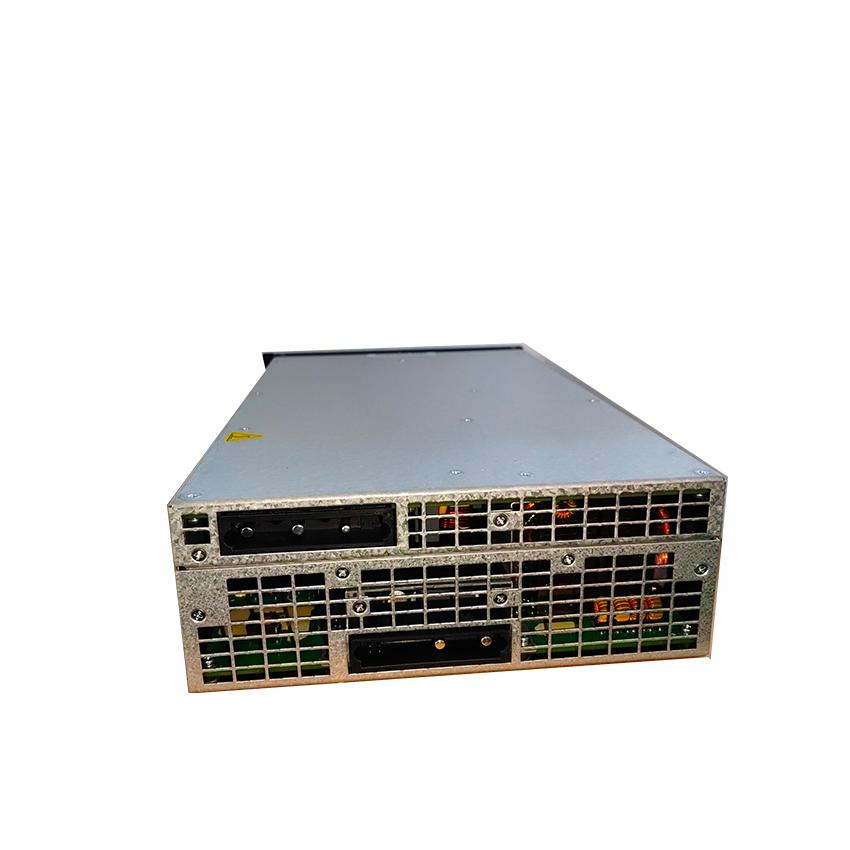

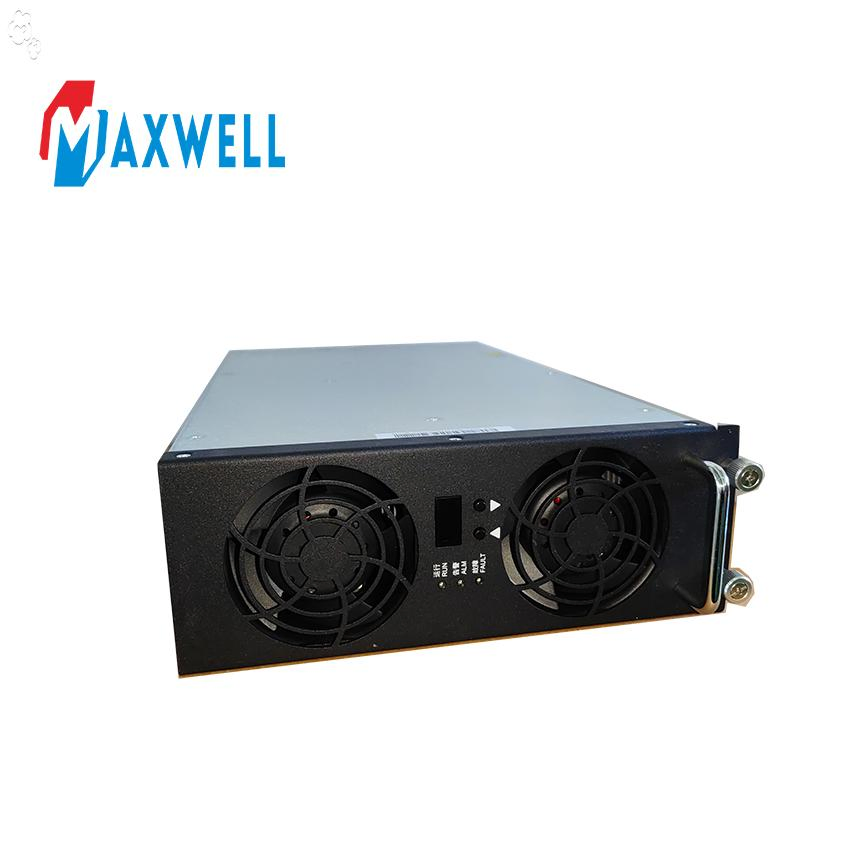

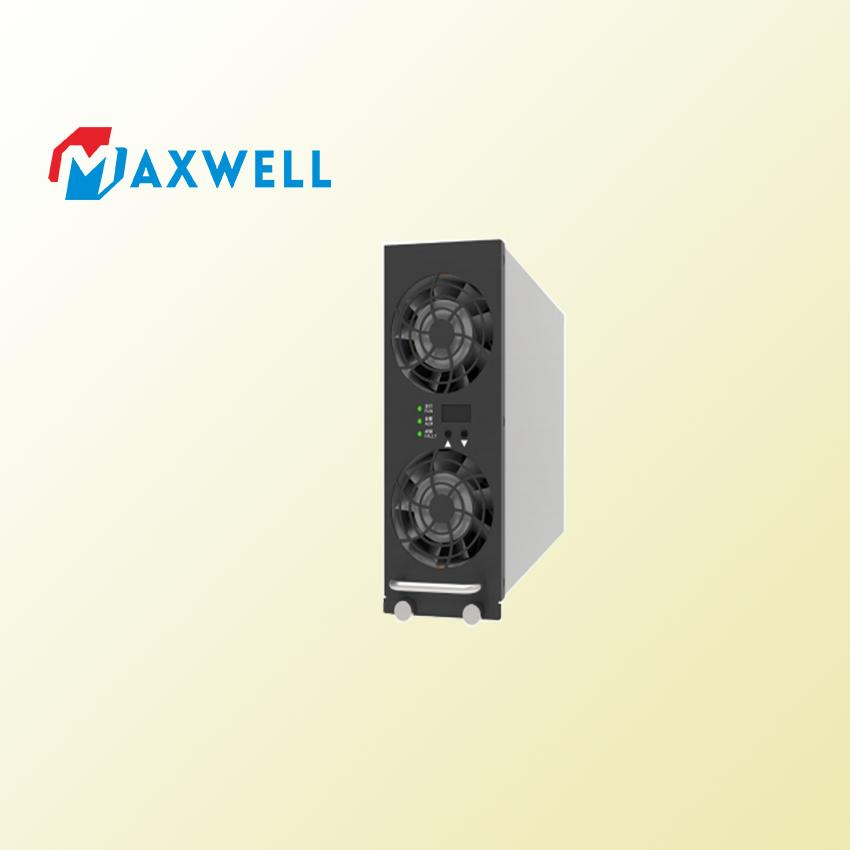

MXC95050B is a high-frequency isolated bi-directional DC-DC module with core advantageous performance such as ultra-wide voltage range, ultra-high full-load operating temperature and ultra-high efficiency. The strong protection and high power density are also the main features of the module.
This module can be widely used in interaction between DC bus side and battery side, such as energy storage, PV, ESS and charging, battery cascade utilization, data center and other multi-energy complementary scenarios.
| Basic Specifications | |
|---|---|
| Dimensions | 85mm(H) × 226mm(W) × 376mm(D) |
| Weight | ≤9.5kg |
| Efficiency (full load) | > 98.5% |
| Cooling Mode | Forced air cooling |
| Parallel Modules | ≤60 pcs |
| DC Bus Side | |
| Voltage Range | 200Vdc ~ 950Vdc |
| Current Range | 0A ~ 40A |
| Voltage Precision | ≤±0.5% |
| Battery Side | |
| Voltage Range | 200Vdc ~ 950Vdc |
| Current Range | 0A ~ 50A |
| Stabilized Current Precision | ≤±1% (20%~100% rated current) |
As a state-level high-tech enterprise, we focus on the research, development, production, and sales of power electronic products. Our services are positioned for mid-to-high-end DC power supply system manufacturers, providing independent technological innovation and high-quality equipment.
Our experienced R&D team has obtained multiple national invention patents and software copyrights. We manufacture products in line with national and international standards. Currently, our solutions are widely used in automotive, electric power, railway, metallurgy, and communications fields globally. Since 2011, we have pioneered the development of automotive DC charging modules, offering a comprehensive series including 15kW, 20kW, 30kW, 40kW, and 50kW models.
