| Model NO. | MXC95050B | Location | Public Use |
| Charging Interfaces | One Pile with Multiple Charges | Start Mode | RFID Authentic |
| Charge Method | Quick Charge | DC Bus Side | 200VDC-950VDC |
| DC Battery Side | 200VDC-950VDC | Output Power | 20kw |
| Current Range | 0A-50A | Origin | China |

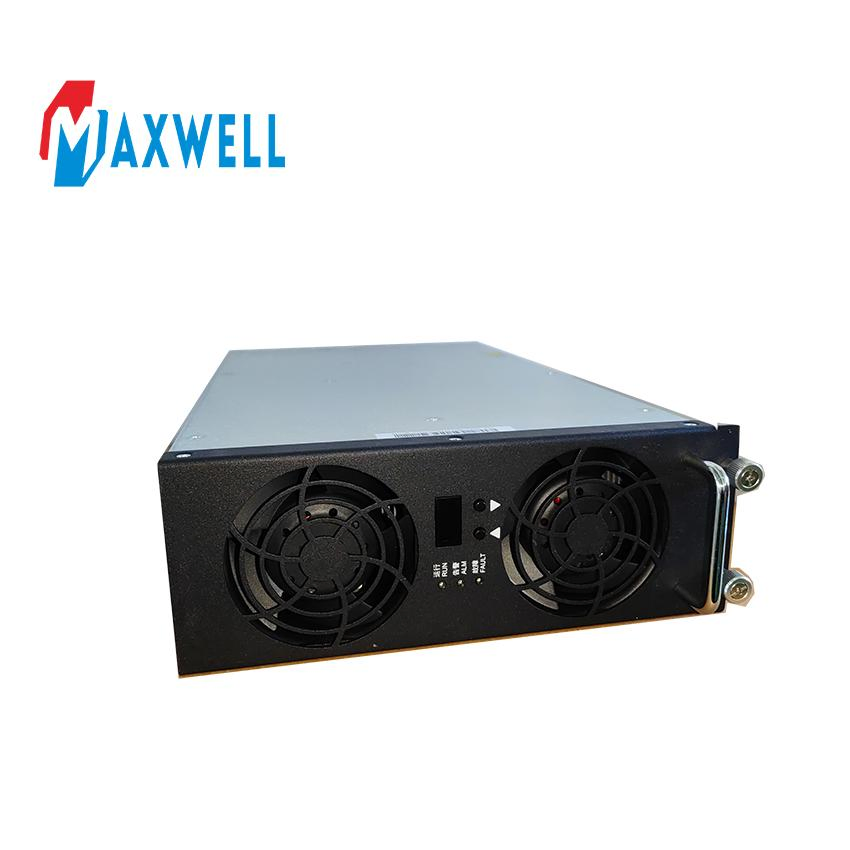

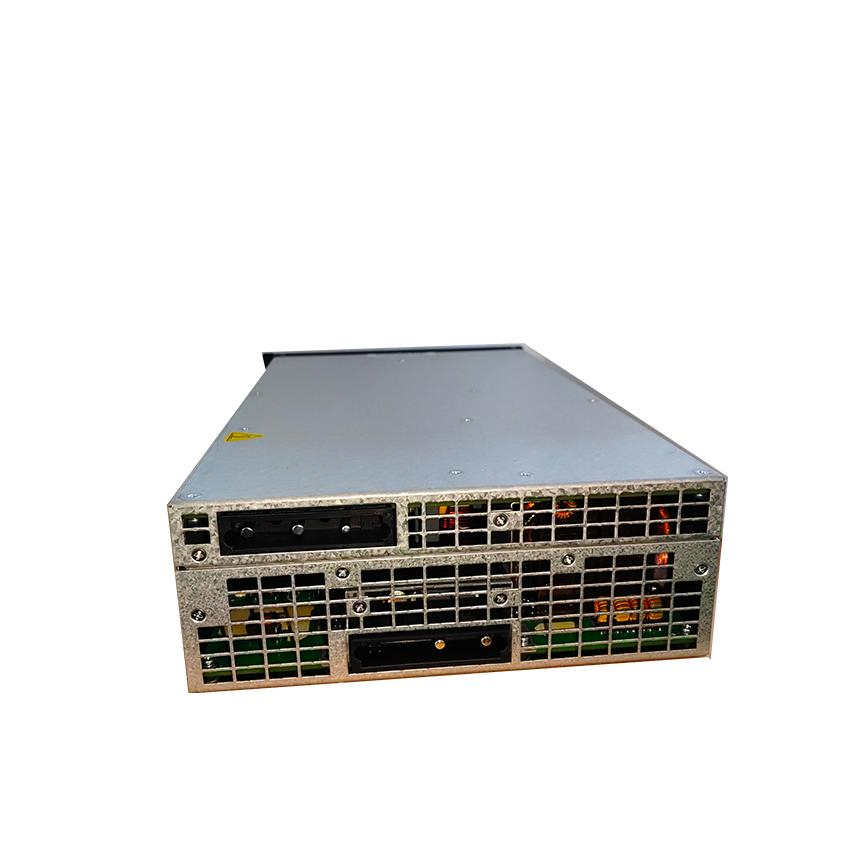

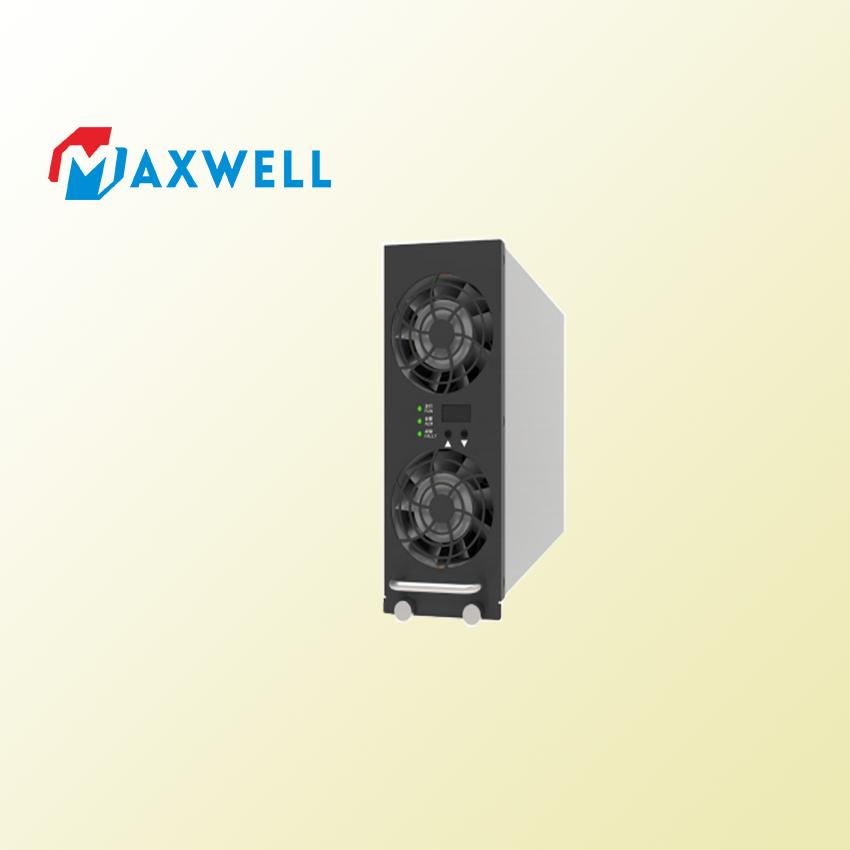

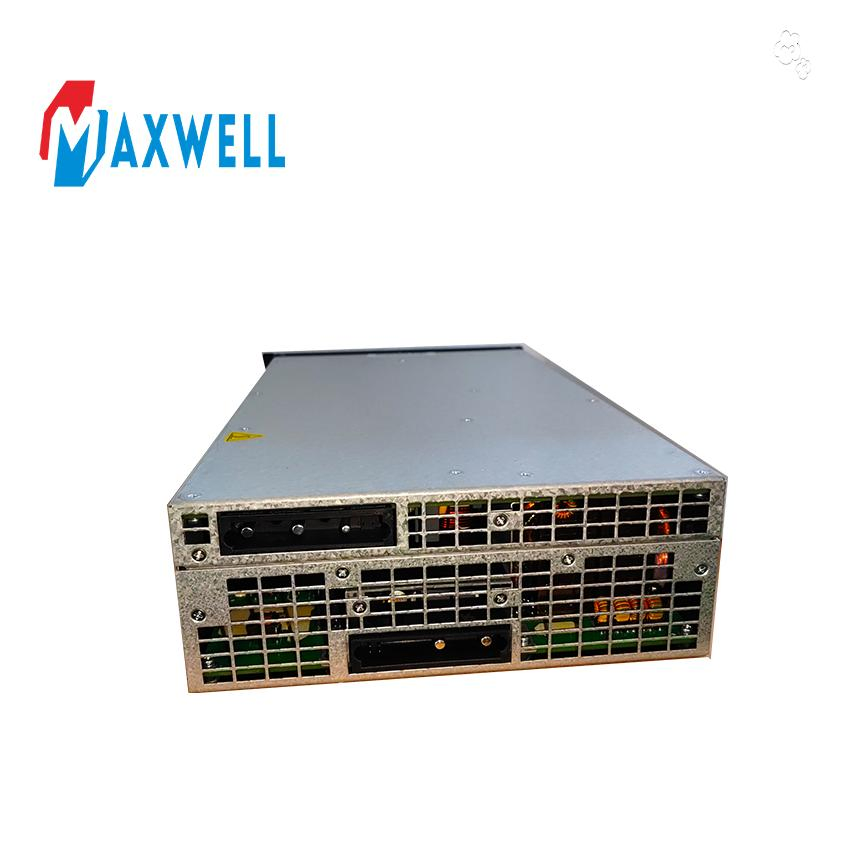

MXC95050B is a high-frequency isolated bi-directional DC-DC module featuring ultra-wide voltage range, ultra-high full-load operating temperature, and ultra-high efficiency. Its robust protection and high power density make it a leading choice for modern energy systems.
This module is widely utilized in interactions between the DC bus side and battery side, including:
• Energy Storage Systems (ESS)
• Photovoltaic (PV) Integration
• Battery Cascade Utilization
• Data Centers and Multi-energy Complementary Scenarios
| Basic Specifications | |
|---|---|
| Dimensions | 85mm(H) × 226mm(W) × 376mm(D) |
| Weight | ≤9.5kg |
| Efficiency (Full Load) | > 98.5% |
| Cooling Mode | Forced air cooling |
| Communication Protocol | CAN Bus |
| Parallel Modules | ≤60 pcs |
| DC Bus Side / Battery Side | |

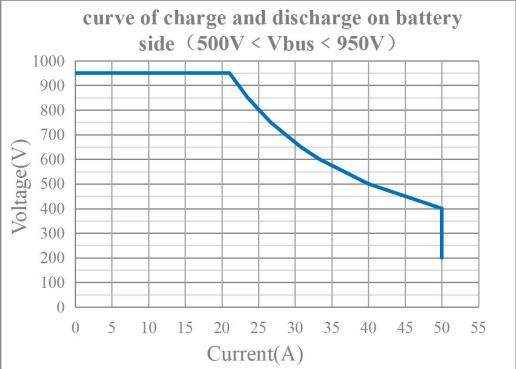

| Voltage Range | 200Vdc ~ 950Vdc |
| Current Range | 0A ~ 50A (Battery) / 40A (Bus) |
| Voltage Precision | ≤±0.5% |
| Current Precision | ≤±1% (20% ~ 100% rated current) |
Package Size: 50.00cm * 40.00cm * 40.00cm
Gross Weight: 25.000kg
Packing: Kraft carton with pallets or wooden cases as per requirement.
We are a state-level high-tech enterprise specializing in the research, development, production, and sales of power electronic products. Our focus is on providing mid-to-high-end DC power supply systems, backed by independent intellectual property rights and continuous technological innovation.

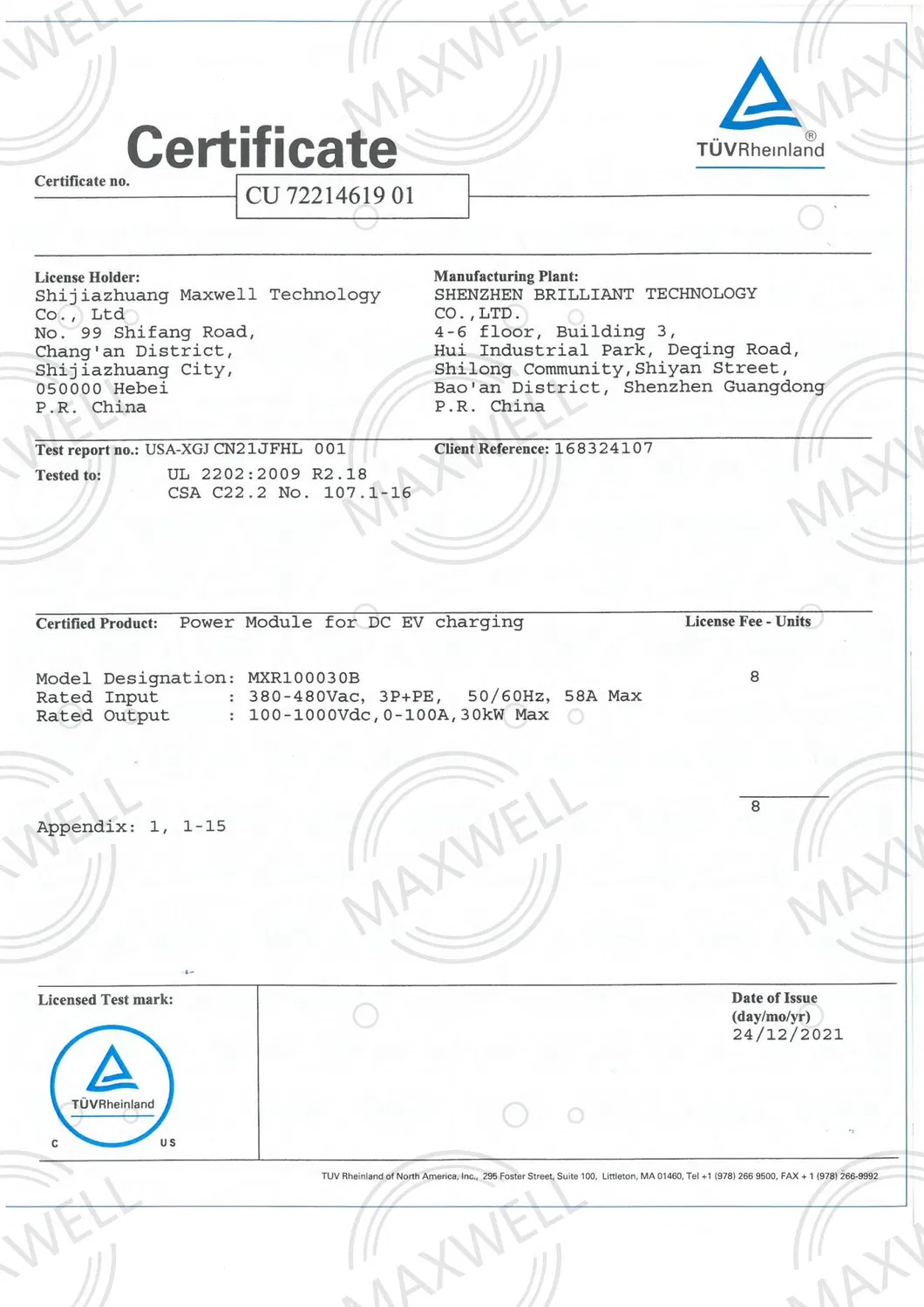

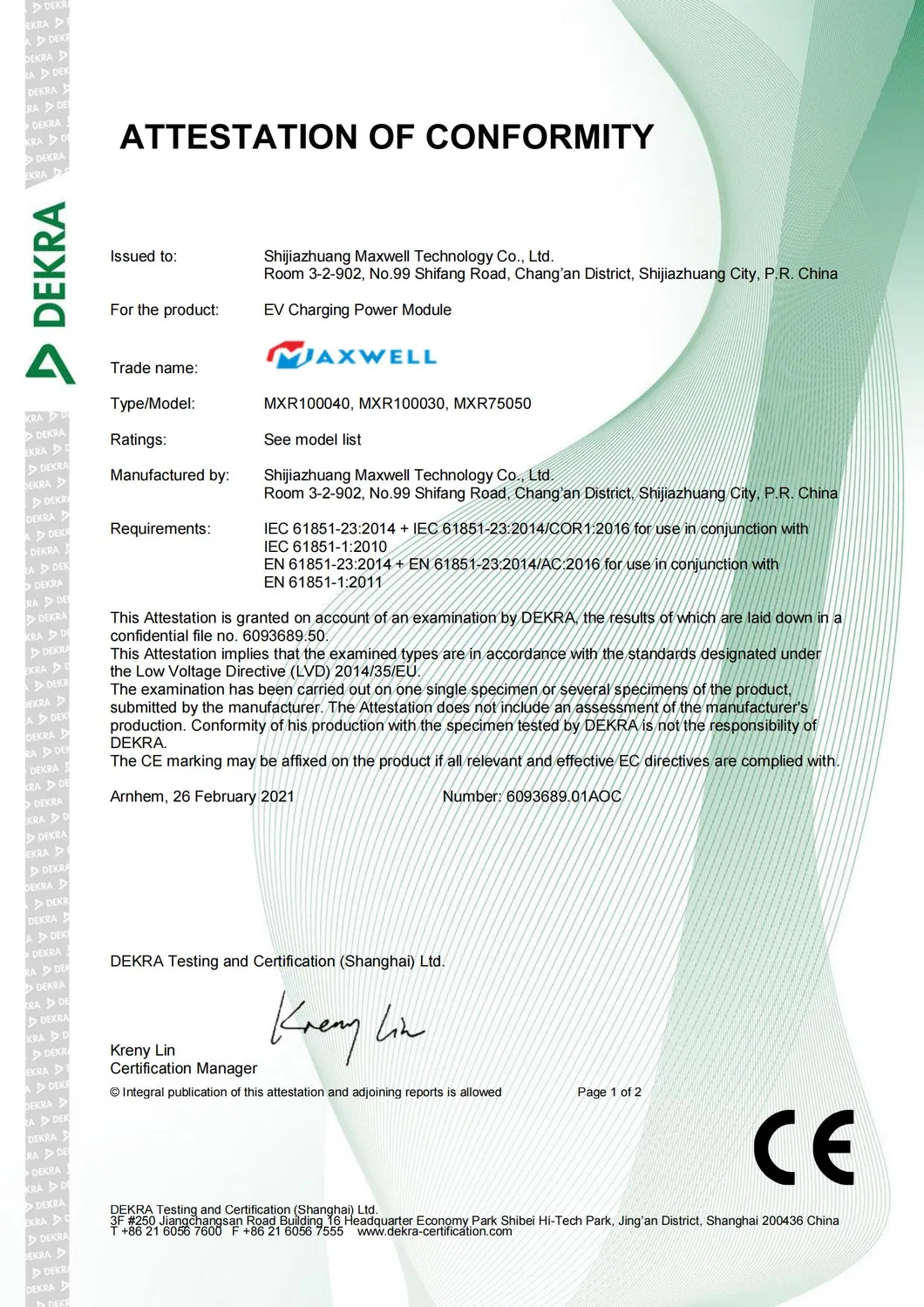

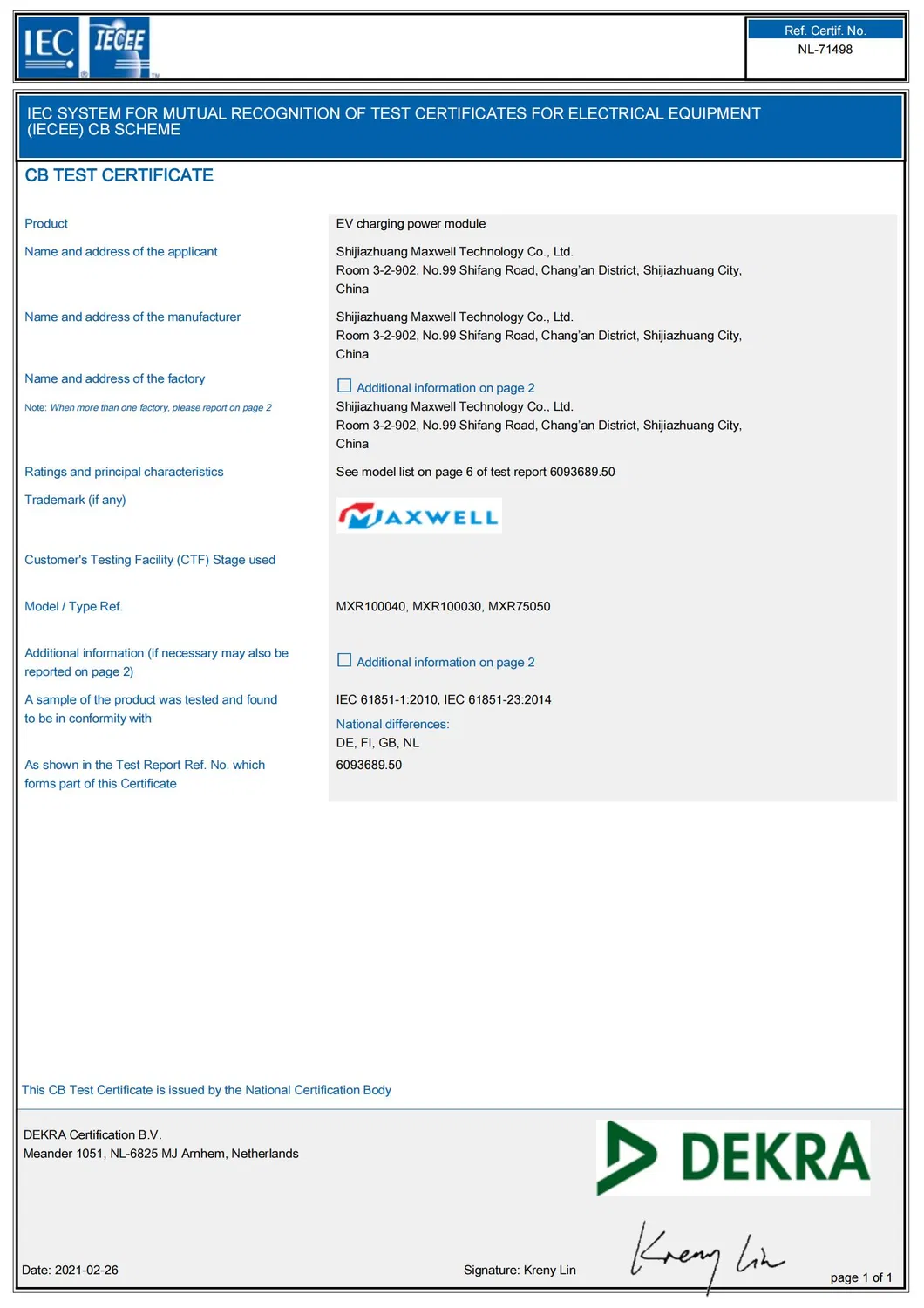

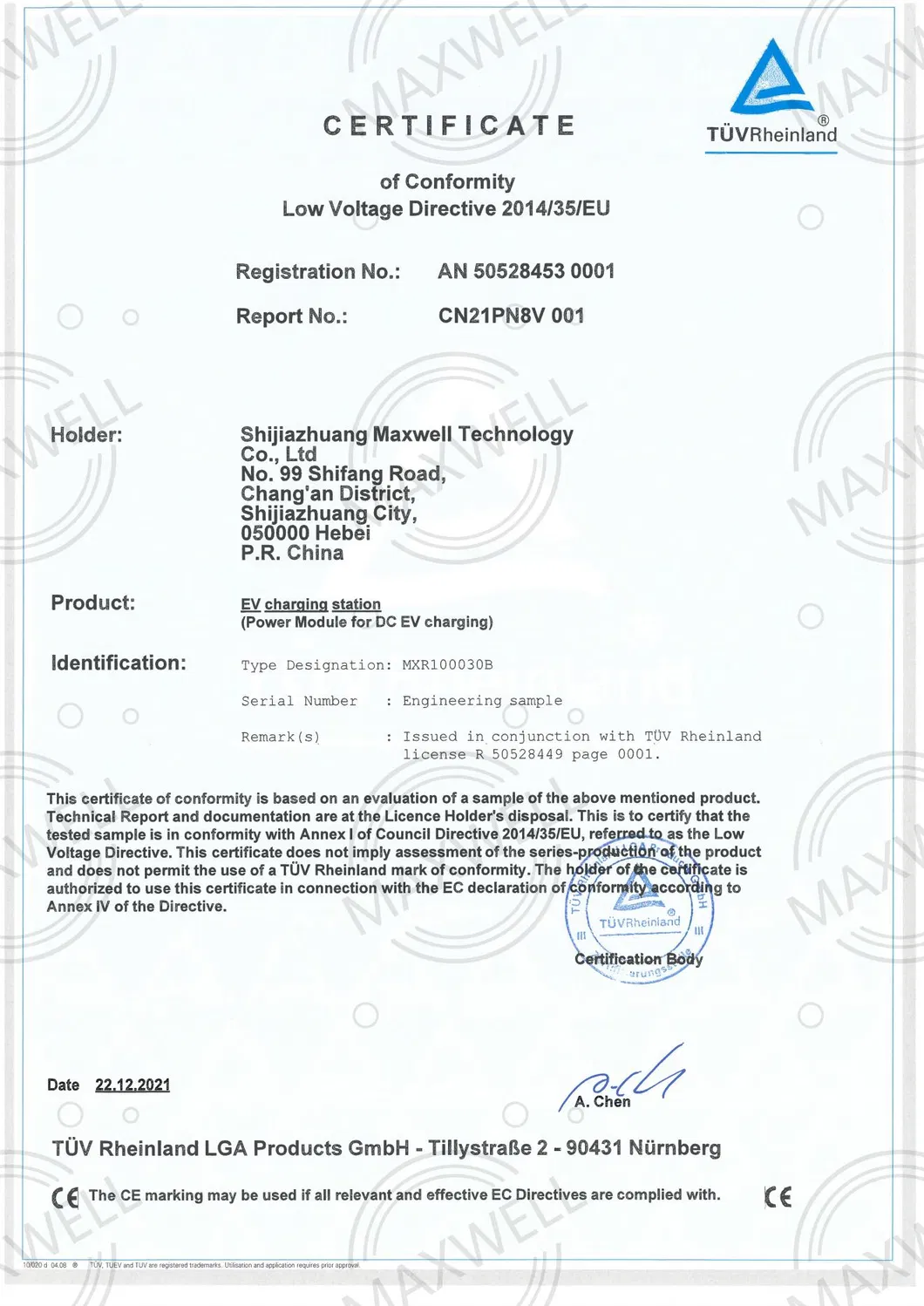

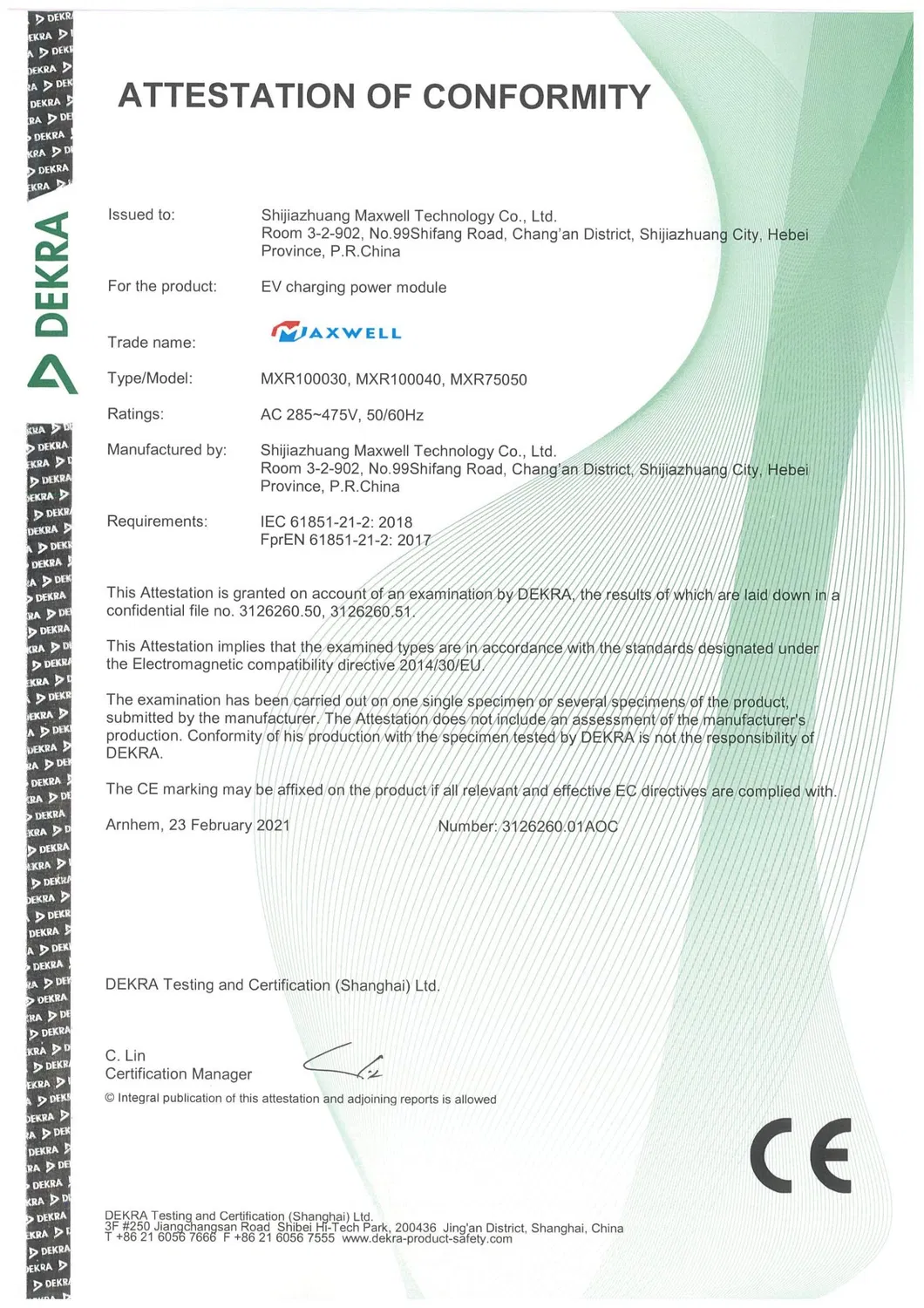

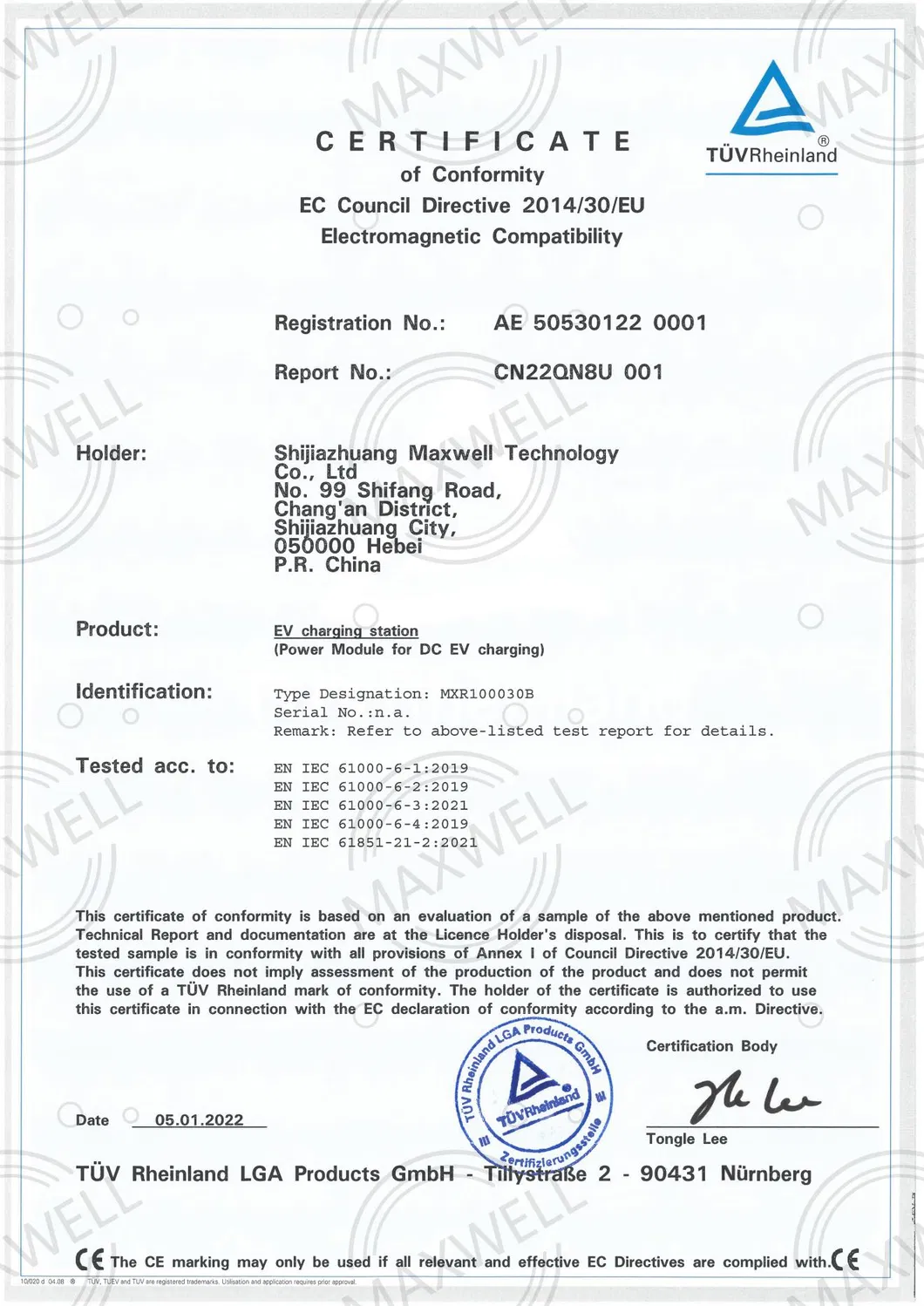

With over a decade of experience, our R&D team serves as a pioneer in the power supply industry, holding multiple national invention patents and software copyrights. Our products meet international standards, including CE and UL certifications, and are widely applied in automotive, electric power, railway, metallurgy, and telecommunications sectors worldwide.
Our product range includes high-performance series of 15kW, 20kW, 30kW, 40kW, and 50kW modules, supporting major new energy infrastructure projects globally.
