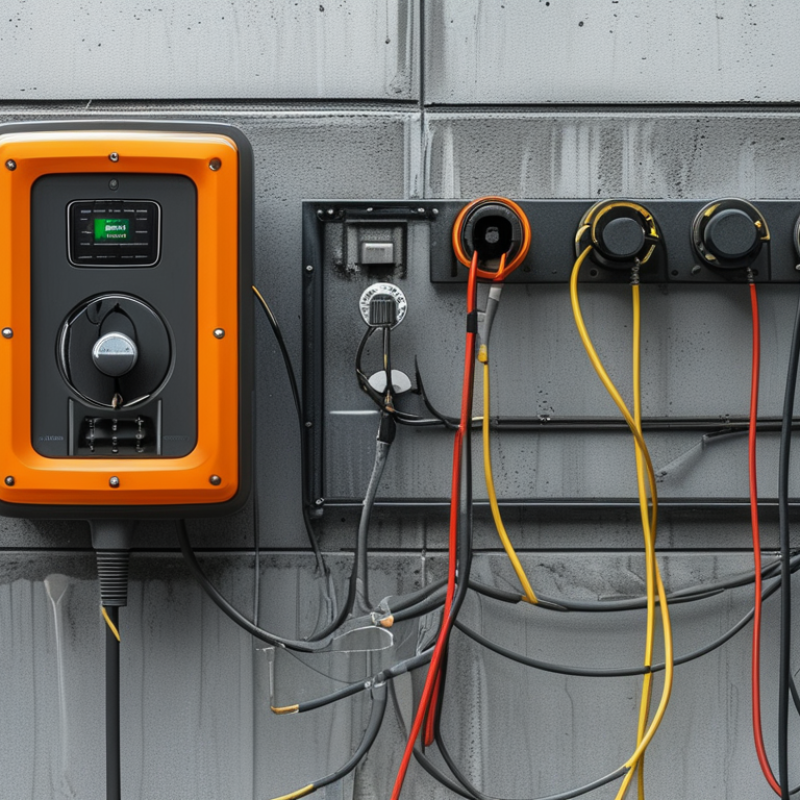

Installing a wall-mounted DC EV charger is more than fixing a compact unit to a garage wall. It involves electrical capacity, structural support, cable routing, weather protection, and careful commissioning. This guide explains How to install a wall-mounted DC EV charger through ten practical steps, based on common installation experience and manufacturer guidance.
The process begins with checking the charger’s power requirements and the building’s available supply. A qualified electrician should assess the circuit, earthing arrangement, protective devices, and local installation rules. The wall must support the charger’s weight, vibration, and cable movement. Concrete may need different anchors than brick or framed construction. Small details matter. A loose gland can allow moisture inside. A poorly positioned cable can create a trip hazard.
The charger should remain accessible, ventilated, and protected from standing water. Before energizing it, the installer should inspect every termination, confirm torque settings, and test protective functions. Charging should then be verified with a compatible vehicle or approved test equipment. Do not rely only on the display. It can look normal while a connection remains unsafe. A practical installation is tidy, but appearance is not proof of quality. This guide also recognizes that site conditions vary, and a perfect plan may need adjustment after inspection. When uncertain, pause the work and obtain professional advice rather than guessing.
Assess the wall, parking bay, cable route, and ventilation before choosing equipment. The mounting surface must support the charger’s weight and resist vibration. Measure the distance to the vehicle inlet. Long cables increase voltage drop and create trip hazards. Keep the unit away from flooding, heat sources, and direct impact. The International Energy Agency reported more than 17 million electric cars were sold worldwide in 2024, increasing pressure on reliable charging infrastructure. Plan for future demand, not only today’s vehicle.
Check the service voltage, available amperage, breaker capacity, grounding, and phase configuration. A load calculation should include lighting, heating, machinery, and possible second chargers. The U.S. Department of Energy’s Alternative Fuels Data Center identifies DC fast charging as equipment commonly operating above 50 kilowatts, although wall-mounted units can be smaller. Confirm that the charger’s input range matches the property’s supply. Confirm connector standards, communication protocols, output voltage, and vehicle compatibility. Protective devices must follow local electrical requirements. Installation should be tested by a qualified electrician. Do not rely on a convenient socket. It may not be designed for continuous high-power use. One practical weakness remains: site drawings are often outdated. Recheck cables physically before final approval.
Gather the installation manual, permits, tools, safety equipment, conduit, conductors, anchors, and grounding hardware. Confirm voltage, current, connector type, and mounting requirements. Keep everything nearby.
Local rules decide this. Ask the relevant authority before opening the electrical panel. A qualified electrician should confirm service capacity, continuous load, and inspection requirements.
Use arc-rated clothing, safety glasses, insulated gloves, and sturdy footwear. Lock out the circuit before work begins. Never trust a breaker label alone.
Inspect for concrete, brick, studs, moisture, and hidden services. Confirm the wall can support the charger and moving cable. Mark holes with a level. Keep it level.
Plan the route before fixing the enclosure. Use suitable conduit and weatherproof fittings. Avoid sharp bends, loose loops, and impact areas. Extra length can help, but messy loops create damage points.
The electrician should verify conductor size, grounding, circuit rating, and protective devices. Each conductor must enter its marked terminal. Tighten terminals to the specified torque. Loose connections can create dangerous heat.
Test continuity, insulation, grounding, voltage, and protective-device operation before energizing. Start with a compatible test vehicle or approved load simulator. Monitor current, voltage, connector temperature, and charging stability.
Stop for a burning smell, unusual noise, repeated fault messages, or unexpected heat. A thermal camera can reveal hot terminals. Do not continue because the charger appears functional.
Check emergency stop operation, residual-current protection, cable storage, connector locking, labels, ventilation, and weather sealing. Recheck mounting bolts. Small labeling mistakes can confuse users later.
Record test readings, circuit details, inspection time, corrective work, and torque checks. Photograph the original panel and keep the manual onsite. Future maintenance becomes easier, though records can still be incomplete.
Installing a wall-mounted DC EV charger requires careful planning, safe electrical work, and thorough testing. The process begins by assessing the installation site, available power supply, wall strength, cable routes, ventilation, and compatibility between the charger and the vehicle. Next, gather the necessary tools, permits, personal protective equipment, mounting hardware, cables, disconnects, and protective devices. Before any connection is made, ensure the power is isolated and confirm that the electrical system can support the charger’s operating requirements.
How to install a wall-mounted DC EV charger also involves securely mounting the unit, connecting the electrical components according to the manufacturer’s technical instructions, and checking grounding and protection systems. After installation, configure charging limits, communication settings, and network features where applicable. Finally, restore power carefully, test charging performance, inspect indicators and connections, and verify that emergency shutdown and protective functions operate correctly. A qualified electrical professional should review or complete the work to ensure a safe, reliable, and compliant installation.
